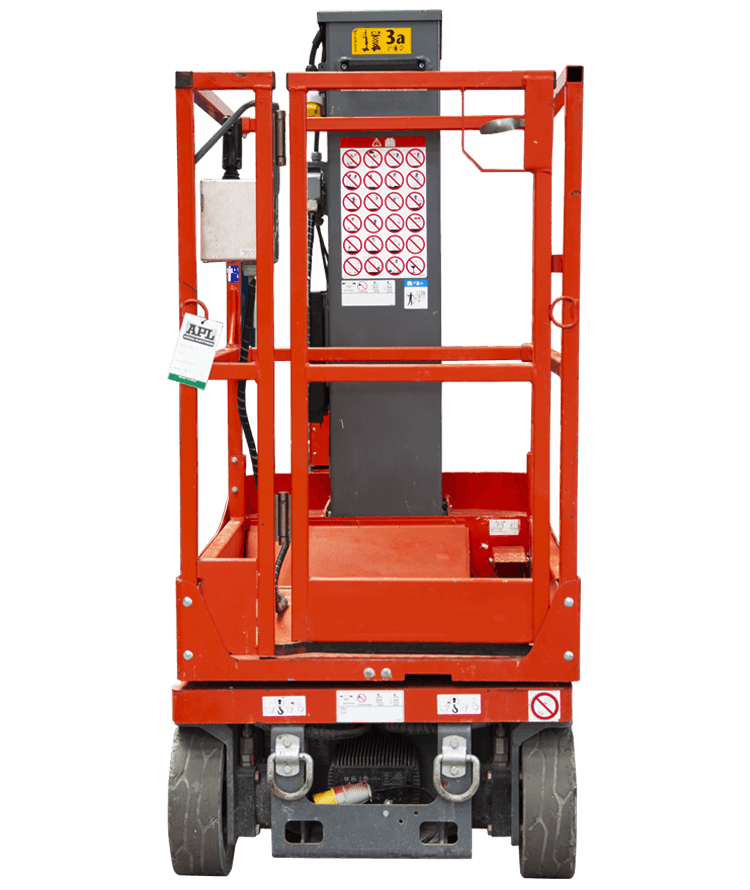

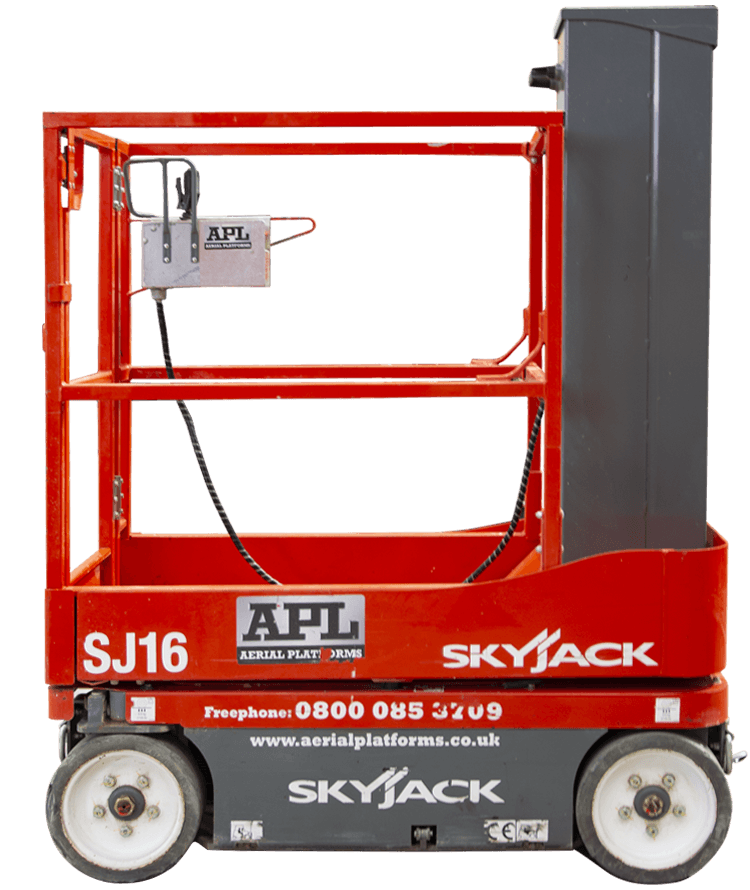

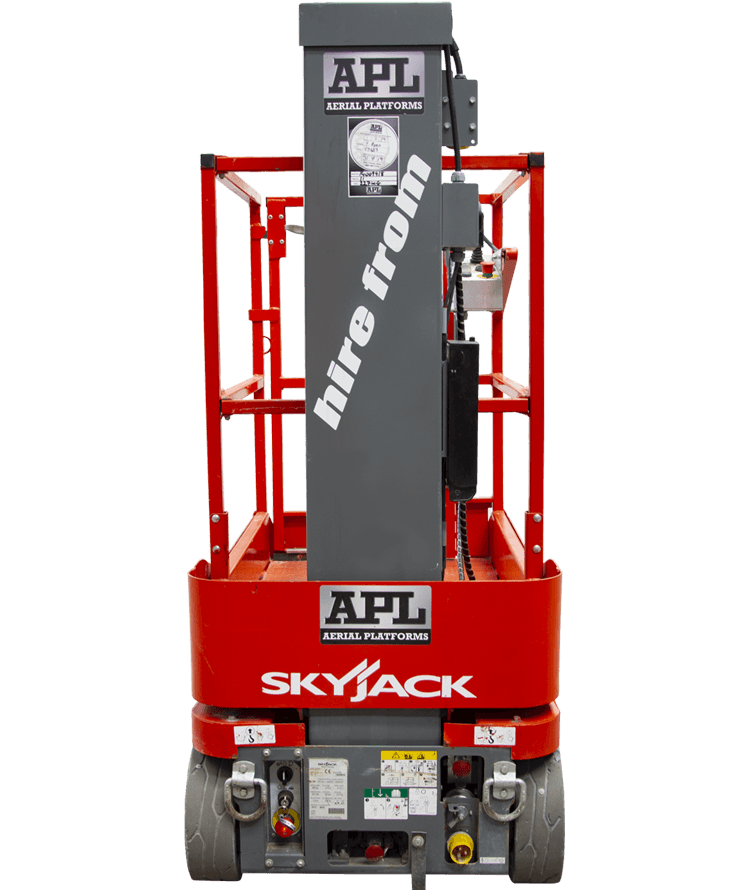

Skyjack SJ16 Electric Mast Boom Lift

Skyjack SJ16

800+ Machine Fleet

We have over 800 of our own machines plus a large, efficient transport fleet, giving us the ability to meet all of your requirements at a moments notice.

Professional & Friendly

We re-invest into staff traning on a regular basis, ensuring that our work family is always ahead of the industry, friendly and here to help you with the best solution.

30+ Years In The Industry

We’ve been working in the industry for over 30 years now, and APL as a company has been around for over 10+ years - Giving you the confidence that we’re the right people for the job!

ANY TIME, ANY PLACE

We’re not restricted to providing access equipment at any point. Our team are dedicated and solution focused to all of APL’s customers.

STANDARD SPECIFICATIONS

KEEP SCROLLING DOWN to see why the Skyjack SJ16 is the perfect Electric Mast Boom Lift for your project

Upper Controls

Clear, intuitive, easy to understand. All aluminium construction, durable toggle switches, operator horn and emergency stop button. Robust joystick, with enable trigger and thumb steer provides full proportional drive control. Protective bar protects against inadvertent operation.

STANDARD FEATURES

Zero emission, compact machines with low floor loading have the ability to go on elevators, making them ideal for multi-level job sites.

Platform

Robust and rigid all steel platform with non-slip checker plate floor. Unrestricted view when drive position with mast behind operator is used. Self closing swing gate option provides for ease of access for operator and materials. Lanyard attachment points provides fixed attachment points at railing posts.

STANDARD FEATURES

Traversing deck Increases “effective” work area and provides “up and over” capability with no weight penalty.

Lower Controls

Easy to understand, two handed operation, using key and rotary switches. Manual lowering system allows platform to be lowered from base in case of emergency or for servicing. Parking brake release valve and hand pump allow towing on level ground. Key switch and lockable battery disconnect, fully disables operation for enhanced security.

STANDARD FEATURES

No mast restrictions for steering linkage provides 90 degree and Zero inside steering radius for more job site accessibility. Low Gross Vehicle Weight (GVW) and full sized non-marking tires give reduced ground pressure.

Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation

REACH DIAGRAM

DIMENSIONS

PERFORMANCE

  • A. Working Height 6.75m
  • B. Platform Height 4.75m
  • C. Lowered Platform Height 0.45m
  • D. Overall Width 0.76m
  • E. Overall Length 1.37m
  • F. Stowed Height 1.79m
  • G. Platform Width (Inside Dimension) 0.69m
  • H. Platform Length (Inside Dimension) 0.93m
  • Ground Clearance (Stowed) 5.33cm
  • Ground Clearance (Elevated) 1.60cm
  • Wheelbase 1.05m
  • Weight 971kg
  • Gradeability 30%
  • Turning Radius (Inside) 0m
  • Turning Radius (Outside) 1.40m
  • Max. Drive Height - Full Height
  • Lift Capacity 227kg
  • Max # of Persons 2

HIRE Skyjack SJ16 Electric Mast Boom Lift
