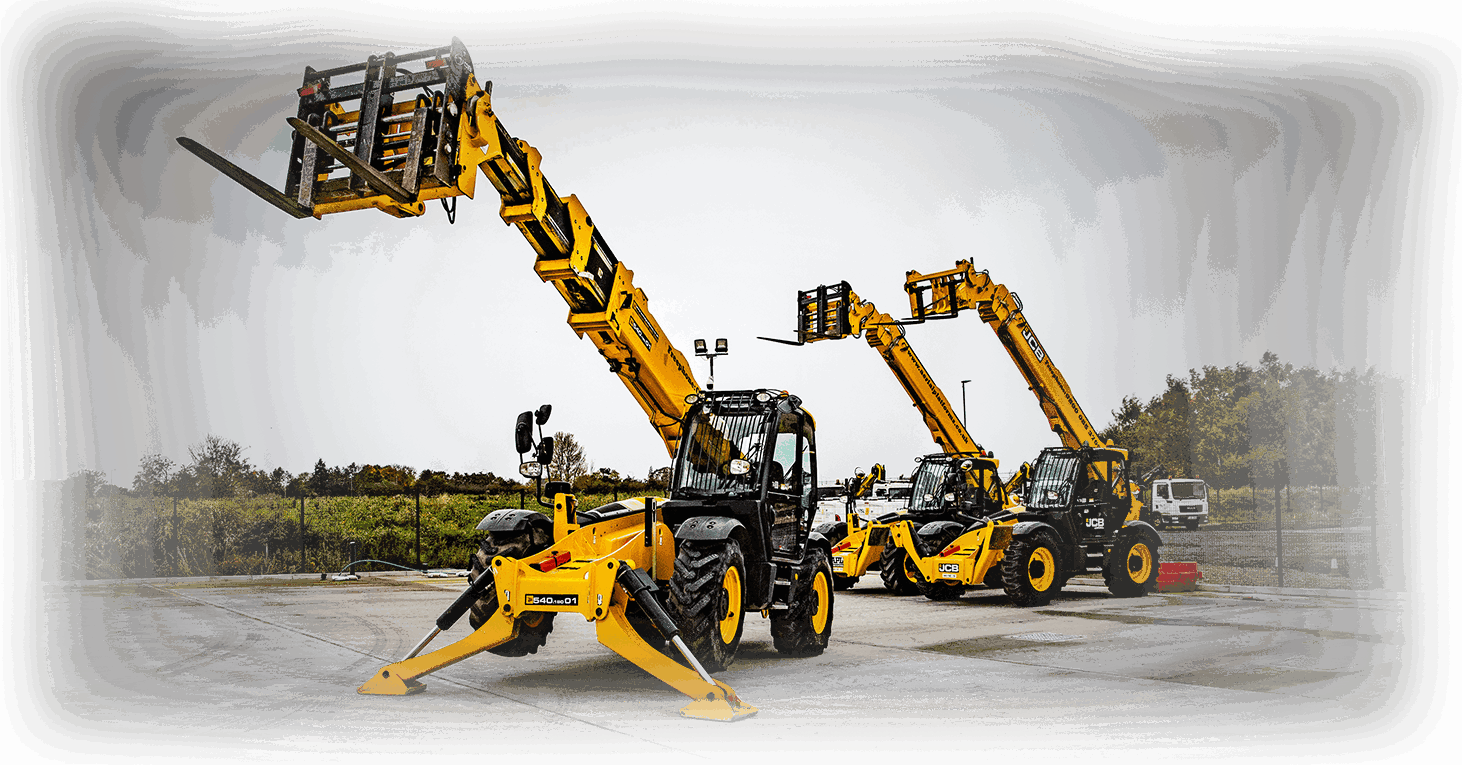

APL provide a wide range of Telehandlers, from buggy scopic to a 20m Telehandler. They have a high fleet specification including four wheel drive, and tier IV low emission engines. With a huge range of payloads and lift heights these machines are designed to be manoeuvrable, versatile, powerful, durable and productive.
Up to 20m lift height Up to 15.9m outreach High fleet specification Tier IV low emission engines Construction Up to 15.9m outreach High fleet specification Tier IV low emission engines
 Working Height 3.50M - 5.10M |  Stowed Height 1.55M - 1.85M |  Machine Length 0.90M - 1.60M |  Machine Width 0.70M - 0.78M |  Lift Capacity 150KG - 250KG |  Weight 180KG - 370KG |
Working Height 4.50M - 12.65M | Stowed Height 1.59M - 1.99M | Machine Length 1.20M - 3.65M | Machine Width 0.75M - 1.20M | Lift Capacity 200KG - 227KG | Weight 478KG - 4,900KG |
 Working Height 7.62M - 21.70M |  Stowed Height 1.59M - 3.82M |  Machine Length 1.78M - 3.74M |  Machine Width 0.76M - 1.75M | Lift Capacity 227KG- 500KG | Weight 1,170KG - 9,120KG |
 Working Height 9.85M - 34.00M |  Stowed Height 2.38M - 9.66M |  Machine Length 3.35M - 7.02M |  Machine Width 1.76M - 2.98M |  Lift Capacity 454KG - 1000KG | Weight 2,903KG 31,200KG |
Working Height 11.00M - 16.00M |  Stowed Height 1.98M - 2.00M |  Machine Length 4.10M - 5.74M |  Machine Width 1.19M - 1.70M | Lift Capacity 200KG - 227KG | Weight 3,880KG - 7,100KG |
Working Height 15.60M - 48.15M | Stowed Height 2.06M - 3.10M | Machine Length 6.35M - 15.10M | Machine Width 2.27M - 5.00M | Lift Capacity 227KG - 400KG | Weight 5,738KG - 26,027KG |
Working Height 12.20M - 28.00M | Stowed Height 1.90M - 3.00M | Machine Length 4.10M - 11.13M | Machine Width 1.50M - 2.49M | Lift Capacity 200KG - 280KG | Weight 3,435KG - 16,110KG |
Working Height 18.00M - 34.00M | Stowed Height 3.40M - 3.89M | Machine Length 3.74M - 9.66M | Machine Width 1.20M - 2.98M | Lift Capacity 500KG - 1000KG | Weight 7,985KG - 31,200KG |
Working Height 40M - 48M | Stowed Height 3.05M - 3.10M | Machine Length 11.46M - 15.10M | Machine Width 2.46M - 5.00M | Lift Capacity 230KG - 450KG | Weight 20,366KG - 26,027KG |
 Working Height 6.00M - 20.00M |  S.W.L (Full Height) 1500KG - 3500KG |  S.W.L (Full Reach) 200KG - 1250KG |  Max S.W.L 2500KG - 4000KG |  Reach (Max Lift Height) 0.15M - 2.82M |  Max Forward Reach 3.06M - 15.90M |
| 524-50 | 525-60 | 531-70 | 533-105 | 535-125 | 535-140 | 540-170 | 540-180 | 540-200 | |
| Working Height | 5.3M | 6M | 7M | 10.22M | 12.28M | 13.78M | 16.7M | 17.51M | 20M |
| Lift Capacity (full height) | 2400KG | 1750KG | 2400KG | 3300KG | 3500KG | 3000KG | 2500KG | 4000KG | 1500KG |
| Lift Capacity (full reach) | 1250KG | 800KG | 1250KG | 1000KG | 1150KG | 1250KG | 600KG | 550KG | 200KG |
| MAx. lift capacity | 2400KG | 2500KG | 3100KG | 3300KG | 3500KG | 3500KG | 4000KG | 4000KG | 4000KG |
| Reach at max. lift height | 0.6M | 0.15M | 0.48M | 1.91M | 0.46M | 0.93M | 2.05M | 1.88M | 2.82M |
| Max.forward reach | 2.9M | 3.06M | 3.7M | 6.83M | 8.06M | 9.60M | 12.50M | 13.34M | 15.90M |
| Stabilisers | - | - | - | - | |||||
| Sway | - | - | - | - | |||||
| Manufacturer | JCB | JCB | JCB | JCB | JCB | JCB | JCB | JCB | JCB |
We’re recognised as one of the leading privately owned single source MEWP rental companies in the UK, dedicated to making powered access simple.
Our professional team are ready and waiting for you. If you have any questions or thoughts, we’re here to answer them!
