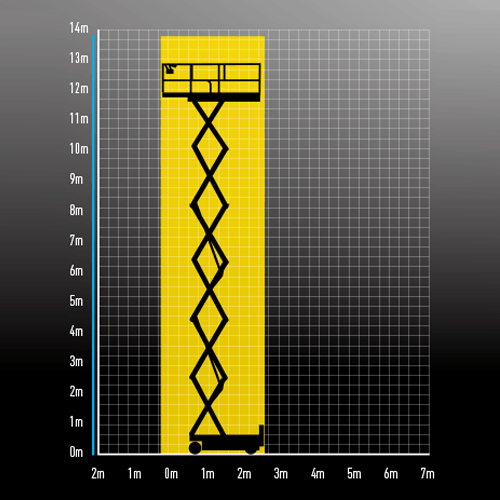

| Working Height | 13.96m |

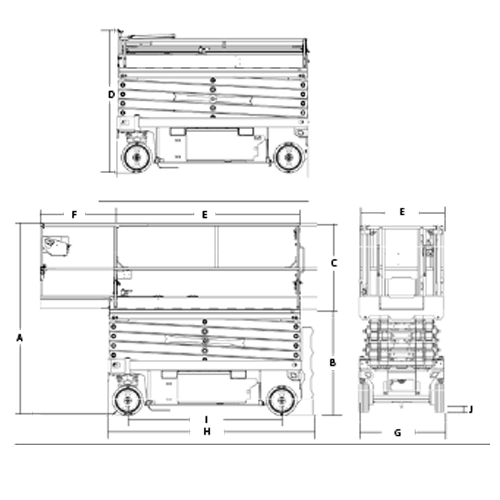

| A. Stowed Height | 2.55m |
| B. Platform Height | 1.40m |
| C. Platform Railing Height | 1.13m |
| D. Stowed Height (Rails Down) | 1.92m |
| E. Platform Size Inside (W x L) | 1.05m x 2.43m |
| F. Deck Extension | 0.91m |
| G. Overall Width | 1.14m |
| H. Overall Length | 2.71m |
| I. Wheelbase | 2.03m |
| J. Ground Clearance | 12.6cm |
| Lift Capacity (Indoor/Outdoor) | 350kg/250kg |
| Gradeability | 25% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.54m |
| Weight | 3,175kg |
Simplified, Reliable Design – Simple pothole protection system has fewer moving parts to reduce service calls
Built Rugged for Rental – An all-steel platform and steel component trays allow it to meet the demands of the toughest job sites
Narrow 1.14 m (45 in) Width – One of the narrowest widths in its class allows it to be used in warehouse and distribution centre aisles
Featuring JLG's Variable Tilt Technology allowing the machine to partially lift on slopes greater than 1.5 degrees
Increase your productivity with built-in power to platform
Lubrication-free scissor arm bushing meaning less maintenance is required
