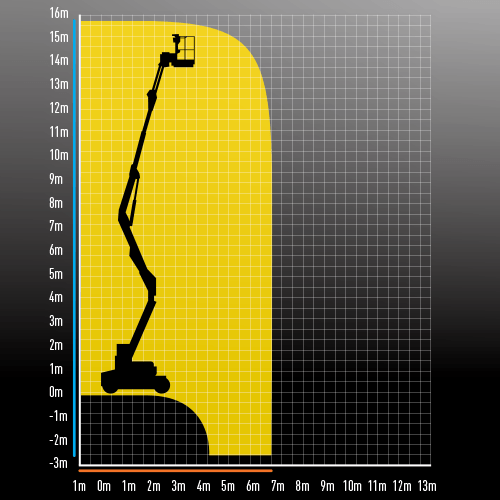

| Working Height | 15.72m |
| Working Outreach | 7.89m |
| Up and Over Height | 7.70m |
| Swing | 360° |
| Lift Capacity | 230kg |
| Platform Rotator (Hydraulic) | 180° |
| Jib Overall Length | 1.24m |
| Jib Range of Articulation | 144° (+84°/-60°) |

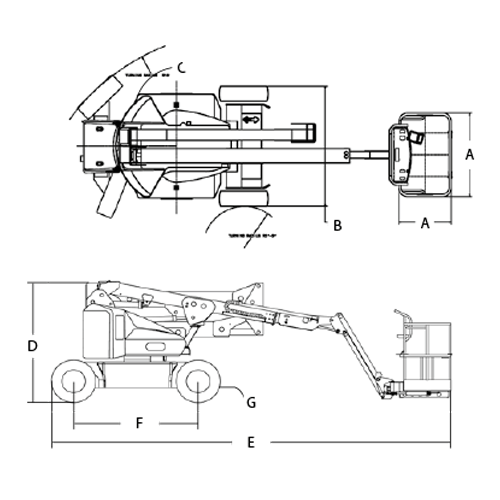

| A. Platform Size | 0.76m x 1.52m |
| B. Overall Width | 1.75m |
| C. Tailswing | 0m |
| D. Stowed Height | 2.01m |
| E. Stowed Length | 6.45m |
| F. Wheelbase | 2.01m |
| G. Ground Clearance | 0.20m |
| Gradeability | 30% |
| Turning Radius (Inside) | 0.61m |
| Turning Radius (Outside) | 3.15m |
| Weight | 6,700kg |
Standard Automatic Traction Control for enhanced terrain performance and increased manoeuvrability
High-efficiency direct electric drive with longer duty cycles for increased productivity
0.76m x 1.52m low mount platform. Full proportional drive joystick control with integral thumb steer switch
Electric power for zero emissions and near-silent running indoors
Stay up and running longer with onboard charging
Get great access to hard-to-reach places with near-vertical jib positioning and 180° side-to-side movement
