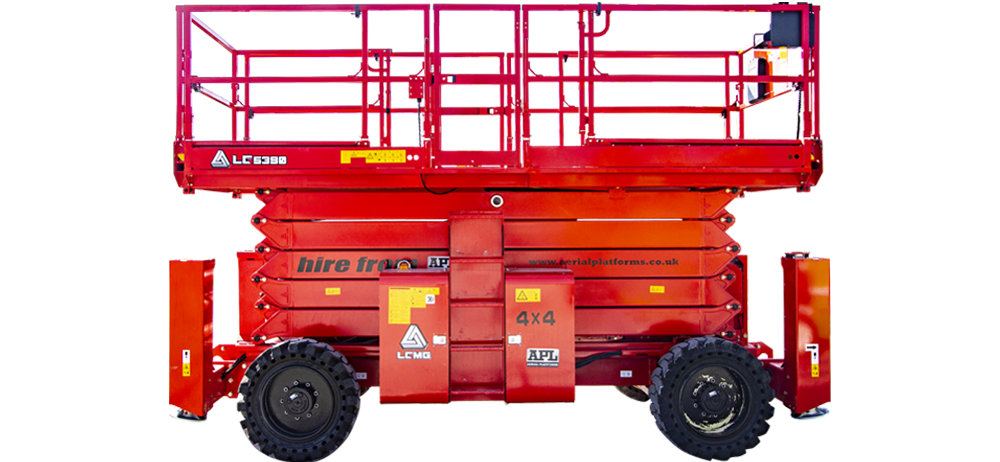

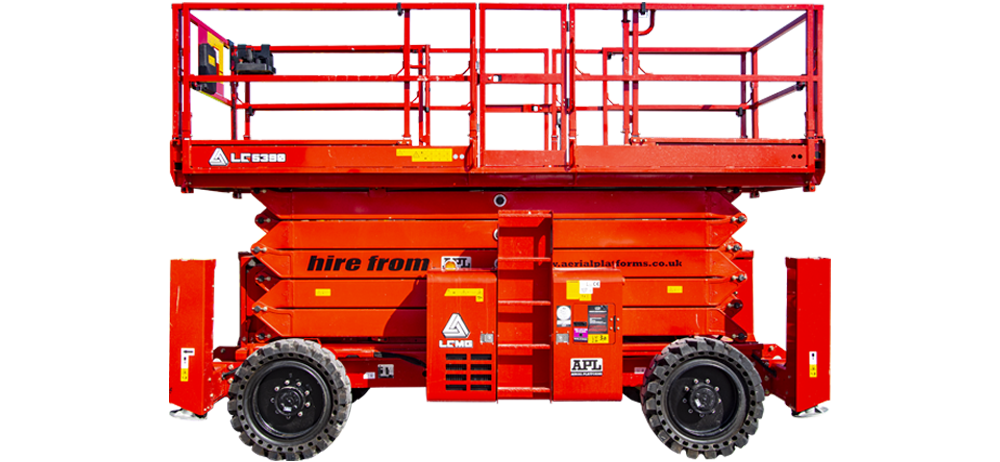

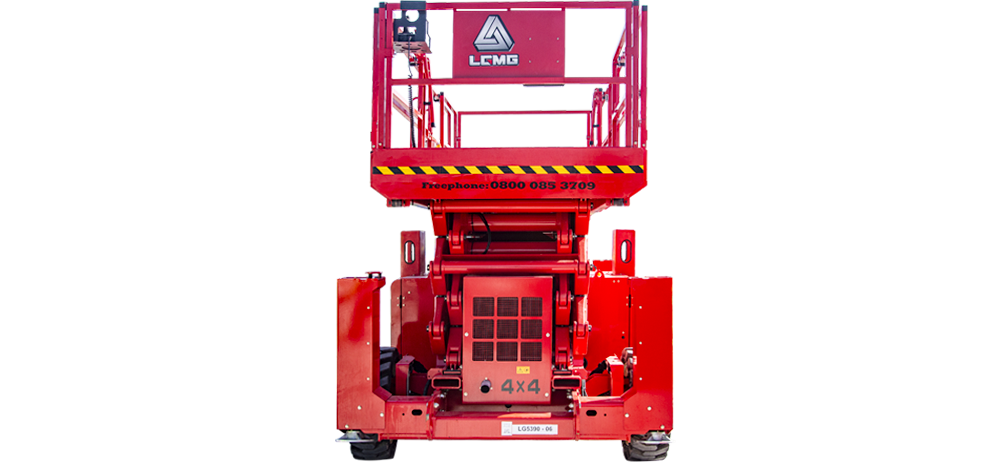

LGMG SR5390 Diesel Scissor Lift

LGMG SR5390

800+ Machine Fleet

We have over 800 of our own machines plus a large, efficient transport fleet, giving us the ability to meet all of your requirements at a moments notice.

Professional & Friendly

We re-invest into staff traning on a regular basis, ensuring that our work family is always ahead of the industry, friendly and here to help you with the best solution.

30+ Years In The Industry

We’ve been working in the industry for over 30 years now, and APL as a company has been around for over 10+ years - Giving you the confidence that we’re the right people for the job!

ANY TIME, ANY PLACE

We’re not restricted to providing access equipment at any point. Our team are dedicated and solution focused to all of APL’s customers.

STANDARD SPECIFICATIONS

KEEP SCROLLING DOWN to see why the LGMG SR5390 is the perfect Diesel Scissor Lift for your project

Working Height

Benefit from a working height of 18m

STANDARD FEATURES

Powerful four-wheel drive and big platform with high capacity for outdoor requirement

Lift Capacity

The SR5390 offers a lift capacity of 680kg and a 230kg capacity on the deck extension

STANDARD FEATURES

Precise weighing system with pressure sensor and overload alarm function

Versatile

Gradeabilty - Lowered 40% / 30%

STANDARD FEATURES

Automatic leveling function enables machine to work on the 7°slope

DOWNLOAD SPEC SHEET

Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation

REACH DIAGRAM

DIMENSIONS

PERFORMANCE

  • Max Working Height 18m
  • Max Platform Height (A) 16m
  • Main Platform Length (E) 3.98m
  • Platform Length - Double Extension (F) 6.58m
  • Platform Height - Lowered 2.08m
  • Platform Width (C) 1.83m
  • Overall Height - Rails Up (D) 3.18m
  • Overall Height - Rails Down 2.50m
  • Overall Width (G) 2.30m
  • Wheelbase (B) 2.85m
  • Ground Clearance 0.23m
  • Platform Capacity 680kg
  • Capacity on Deck Extension 230kg
  • Gradeability - Lowered 40% / 30%
  • Lift/Lower Time 55/55 sec
  • Drive mode 4*4 / 4*2
  • Machine Weight 8,000kg

HIRE LGMG SR5390 Diesel Scissor Lift
