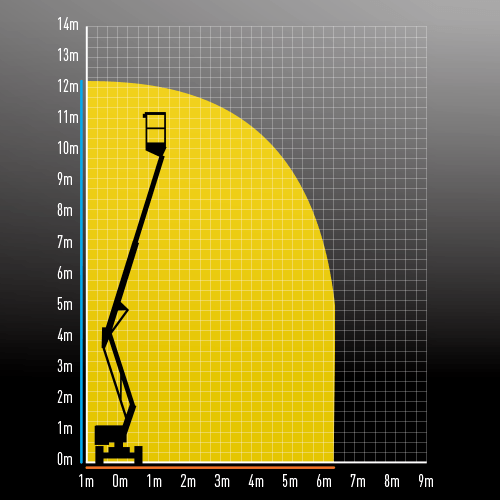

| Working Height | 12.20m |
| Platform Height | 10.20m |
| Horizontal Outreach | 6.10m |
| Lift Capacity | 200kg |
| Platform Size | 0.65m x 1.10m |

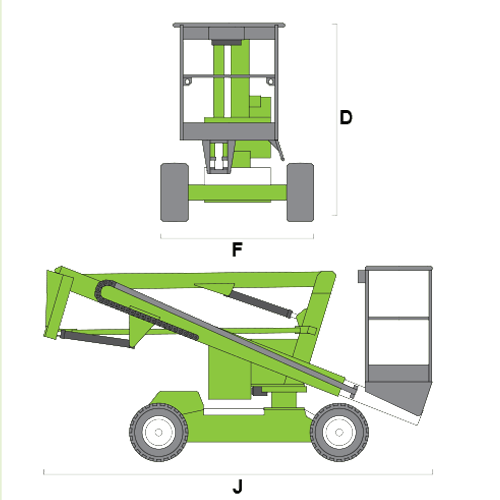

| D. Height Stowed | 1.90m |
| F. Width | 1.50m |
| J. Length Stowed | 4.10m |
| Turning Radius | 4.20m |
| Gradeability | 25% |
| Weight | 3,435kg |

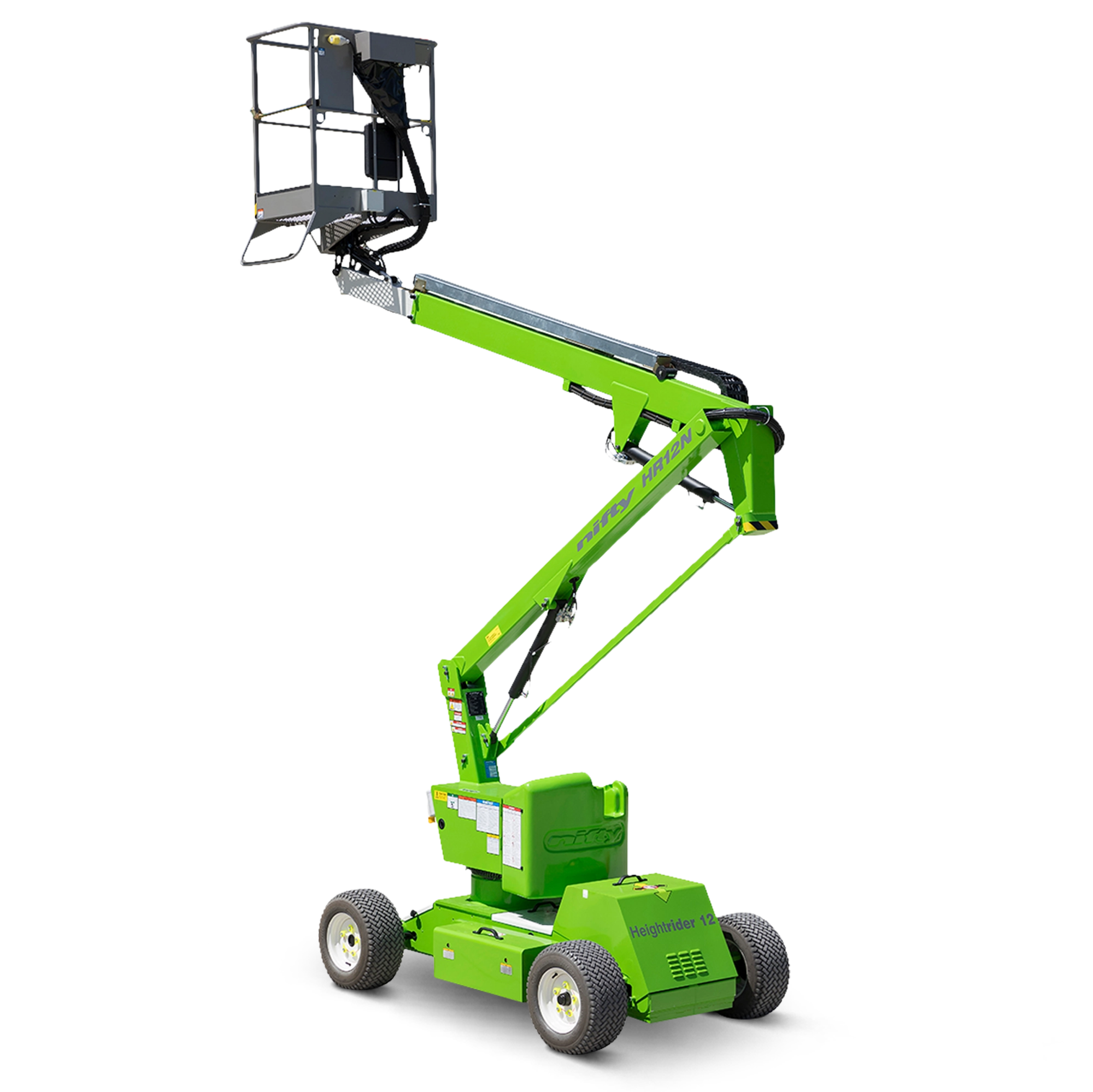

It is specifically designed to give maximum reach performance from the lightest, most compact base possible. A telescopic upper boom gives the HR12N improved accuracy when positioning the platform and superb manoeuvrability makes it ideal for a wide range of applications.
With a 1.50m (4ft 11in) narrow chassis, the HR12N is ideal for working in factories, warehouses or anywhere that space is restricted.
Its Bi-Energy option allows the HR12N to work for extended periods inside and outside, making it the perfect all-rounder.
Greater accuracy when positioning platform
Improved narrow aisle access
Simple, reliable & easy to maintain
