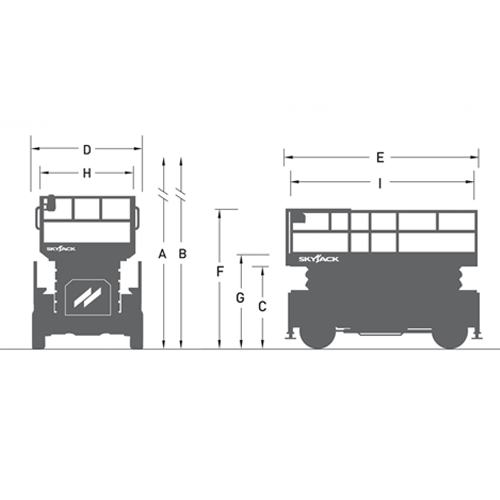

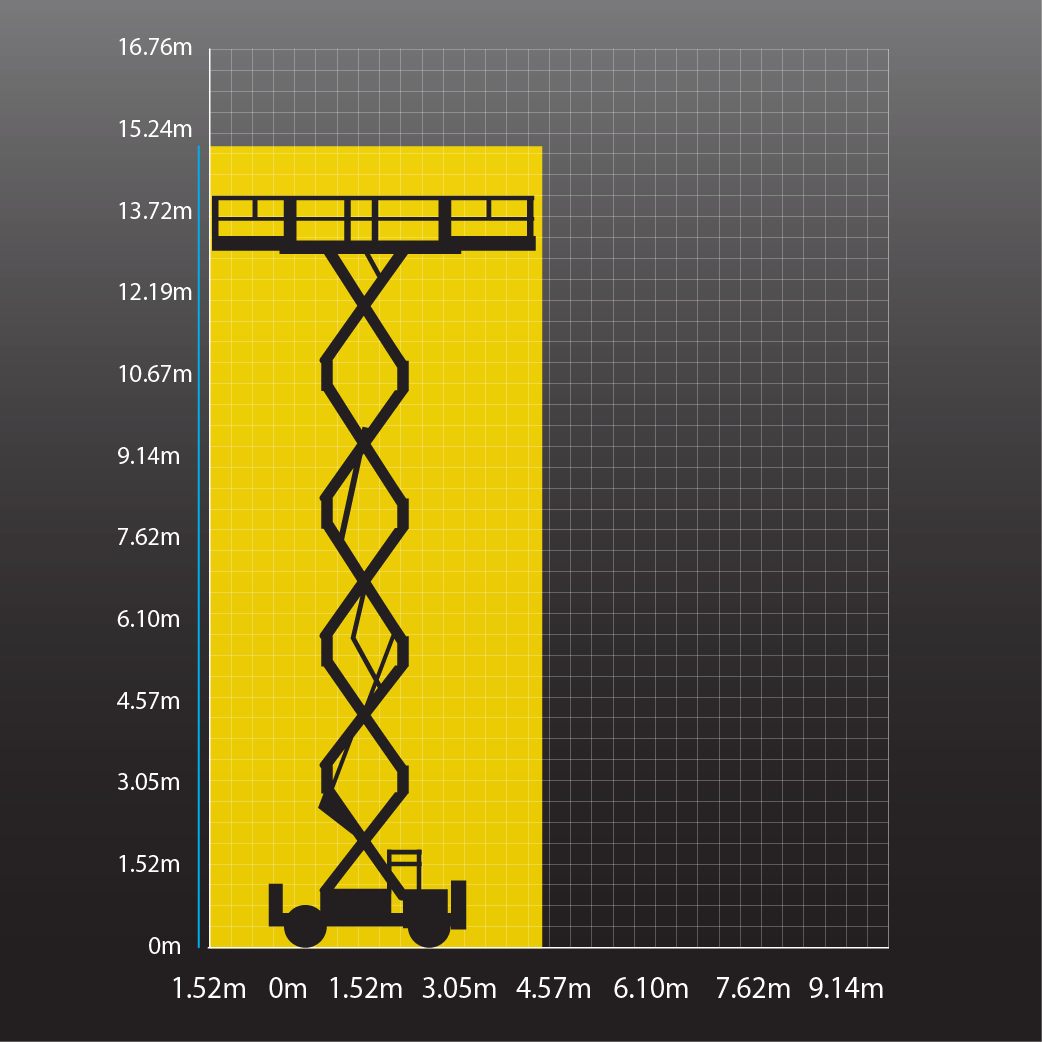

| Max. Working Height | 14.94m |
| Max. Platform Height | 13.11m |
| Overall Length | 4.42m |
| Overall Width | 2.30m |
| Overall Height (Rails Up) | 2.96m |
| Overall Height (Rails Down) | 2.17m |
| Platform Size(Length×Width) | 4.36m×1.82m |
| Platform Extension Size | 1.52m X2 |
| Overall Platform Length (Deck Extended) | 7.21m |
| Maximum Drive Height | 13.11m |
| Wheelbase | 3.02m |
| Turning Radius(Inside/Outside) | 3.25m/6.40m |
| Platform Capacity SWL | 907kg |
| Distributed Capacity (Front/Rear Extension Decks) | 227kg |
| Max. Occupants (0m/s) / (12.5m/s) | 6 |
| Gradeability | 30% |
| Up/Down Speed | 45/40sec |
| Weight | 6,749kg |

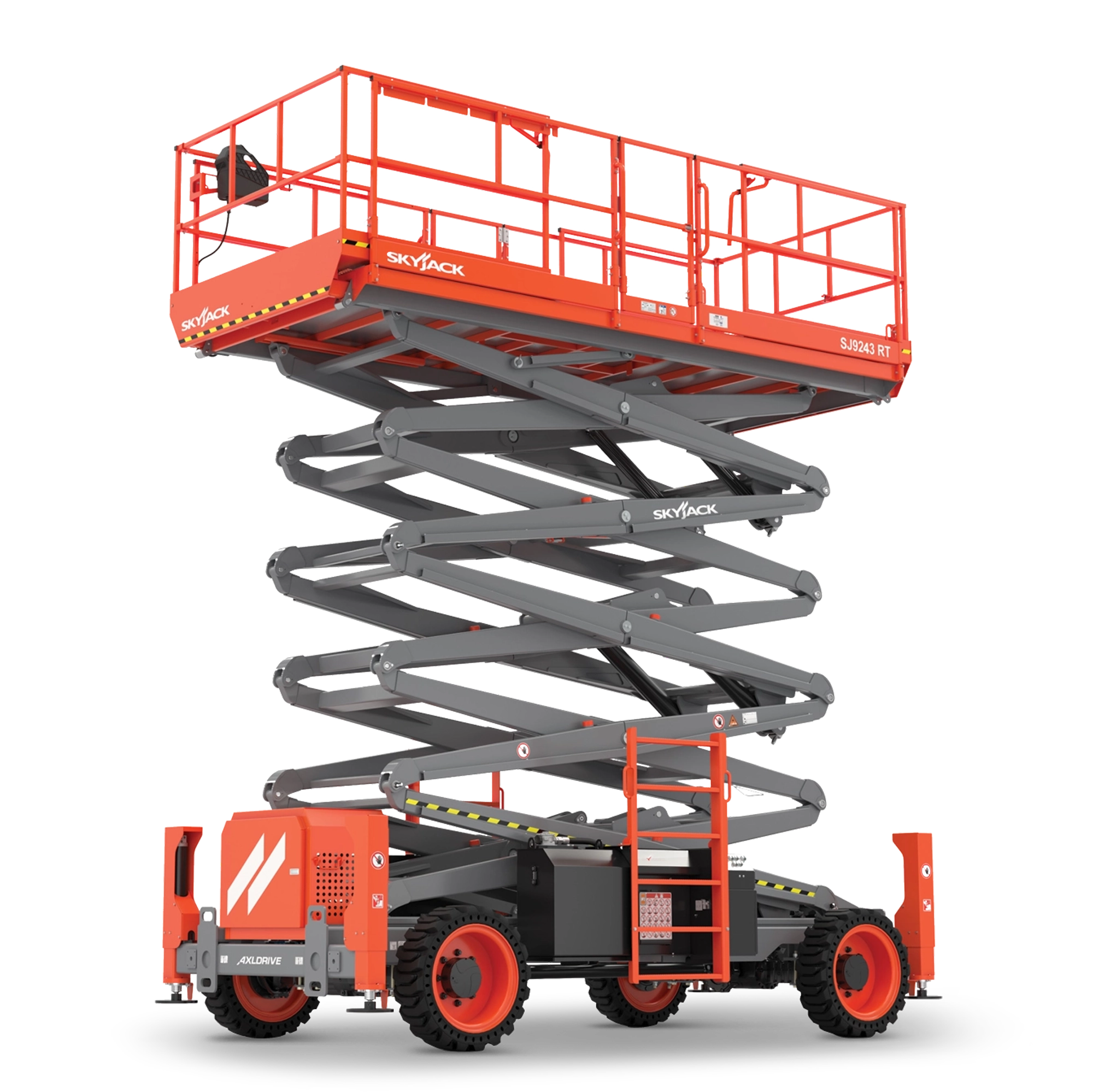

The recently redesigned Skyjack full-size rough terrain scissor lifts boast some of the largest platforms and capacities on the market. This machine also features axle-based four-wheel drive, providing it with outstanding all-terrain capabilities. The SJ9243RT is capable of lifting 907kg up to a maximum platform height of 13.11m and comes equipped with a spacious platform deck of 4.36m x 1.82m meaning a maximum of 6 occupants can work together at any one time.
Drivable at full height of 13.11m
Dual 1.52m extension decks for a max platform size of 7.40m (L) x 1.82m (W) *
30% Gradeability allows for traversing challenging worksites
Axle-based 4WD system
Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
Operator controlled locking rear differential and limited slip front differential.
