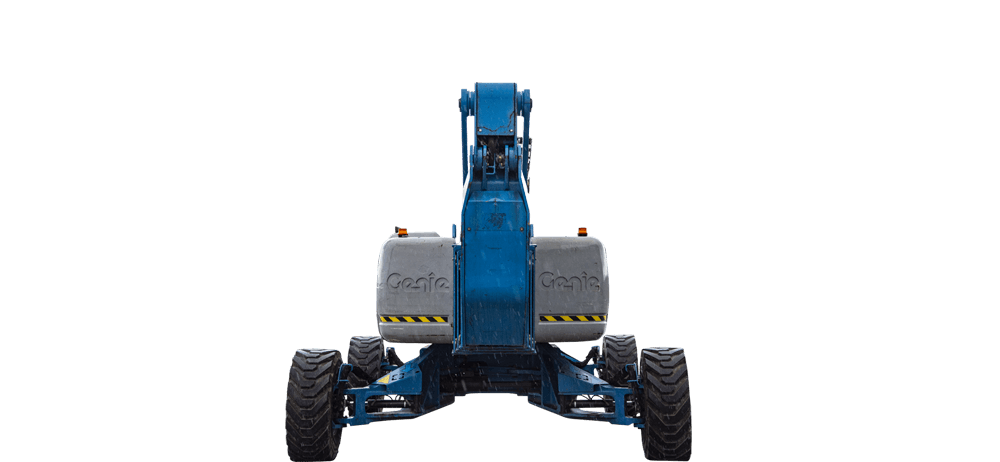

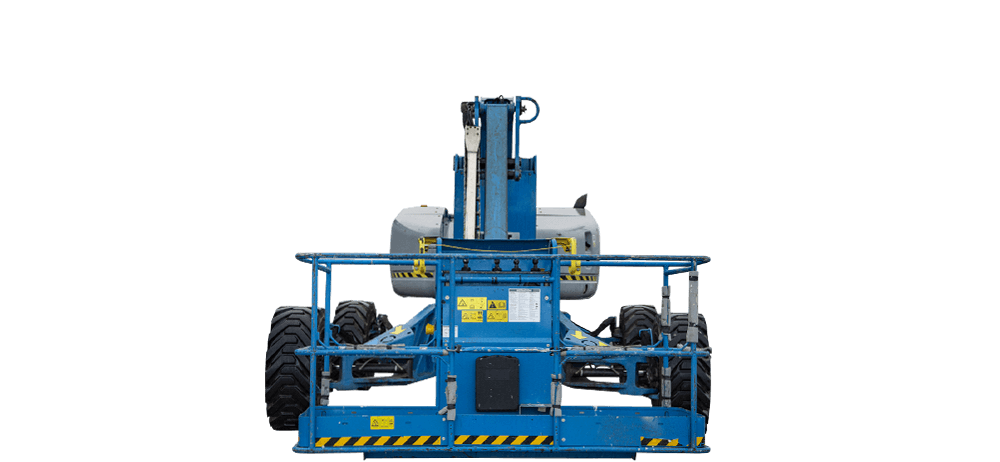

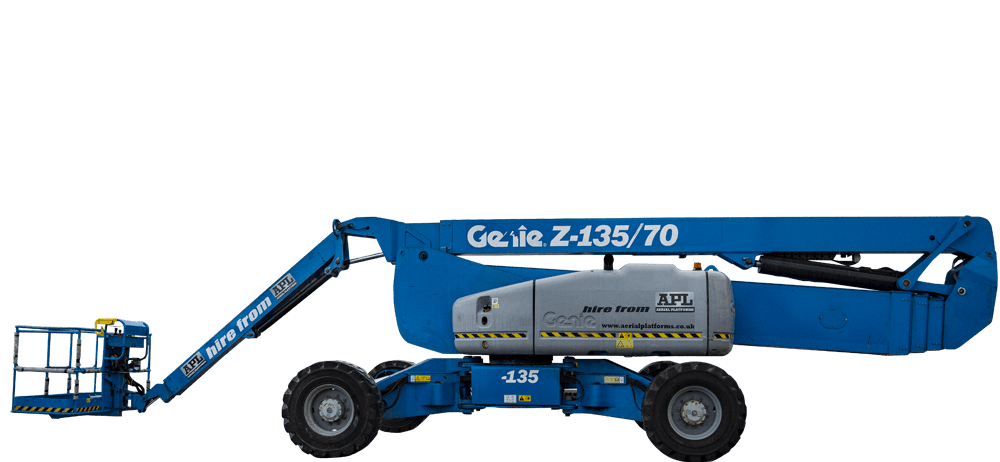

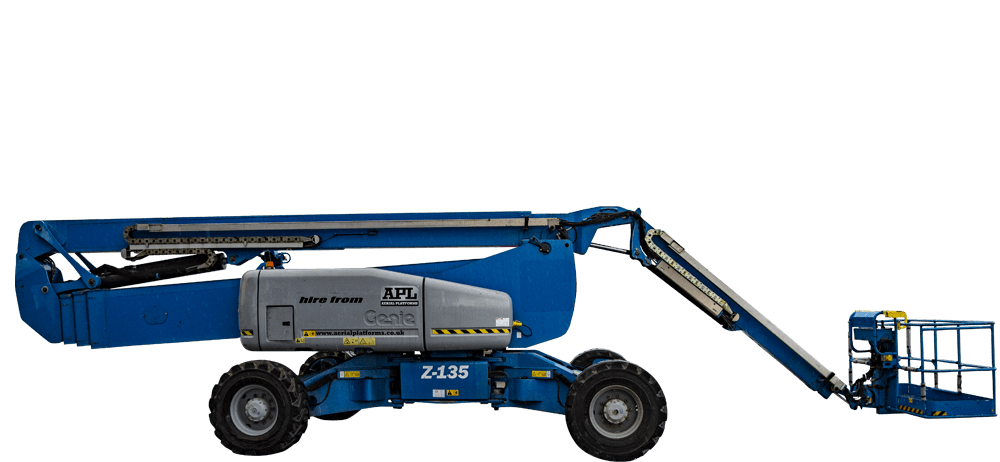

Genie Z135/70 SUPER BOOM Diesel Boom Lift

Genie Z135/70 SUPER BOOM

800+ Machine Fleet

We have over 800 of our own machines plus a large, efficient transport fleet, giving us the ability to meet all of your requirements at a moments notice.

Professional & Friendly

We re-invest into staff traning on a regular basis, ensuring that our work family is always ahead of the industry, friendly and here to help you with the best solution.

30+ Years In The Industry

We’ve been working in the industry for over 30 years now, and APL as a company has been around for over 10+ years - Giving you the confidence that we’re the right people for the job!

ANY TIME, ANY PLACE

We’re not restricted to providing access equipment at any point. Our team are dedicated and solution focused to all of APL’s customers.

STANDARD SPECIFICATIONS

KEEP SCROLLING DOWN to see why the Genie Z135/70 SUPER BOOM is the perfect Diesel Boom Lift for your project

Max Working Height

141 ft | 43.15 m

STANDARD FEATURES

Ideal for outdoor construction and industrial applications, the Genie® Z-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib.

Lift Capacity

600 lb | 272 kg

STANDARD FEATURES

Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.

Machine Weight

21,092kg *

STANDARD FEATURES

360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning

DOWNLOAD SPEC SHEET DOWNLOAD BIM MODEL

What is a bim model?

Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation

REACH DIAGRAM

DIMENSIONS

PERFORMANCE

  • Working Height 43.15m
  • Platform Height 41.15m
  • Horizontal Reach (Riser Extended) 18.03m
  • Horizontal Reach (Riser Retracted) 21.26m
  • Up and Over Reach (Riser Extended) 23.01m
  • Up and Over Reach (Riser Retracted) 9.91m
  • Below Ground Reach 5.87m
  • A. Platform Length 0.91m
  • B. Platform Width 2.44m
  • C. Height Stowed 3.07m
  • D. Length Stowed 12.93m
  • E. Width (Axles Extended) 3.94m
  • Width (Axles Retracted) 2.46m
  • F. Wheelbase (Axles Extended) 4.11m
  • Wheelbase (Axles Retracted) 4.72m
  • G. Ground Clearance (Centre) 0.51m
  • Lift Capacity 272kg
  • Platform Rotation 160°
  • Vertical Jib Rotation 110°
  • Turntable rotation 360° Continuous
  • Gradeability 45%
  • Inside Turning Radius (Axles Extended) 2.29m
  • Inside Turning Radius (Axles Retracted) 5.51m
  • Outside Turning Radius (Axles Extended) 5.64m
  • Outside Turning Radius (Axles Retracted) 7.77m
  • Machine Weight 20,366kg
