APL provide a wide range of Telehandlers, from buggy scopic to a 20m Telehandler. They have a high fleet specification including four wheel drive, and tier IV low emission engines. With a huge range of payloads and lift heights these machines are designed to be manoeuvrable, versatile, powerful, durable and productive.
Up to 20m lift height Up to 15.9m outreach High fleet specification Tier IV low emission engines Construction Up to 15.9m outreach High fleet specification Tier IV low emission engines
 Working Height 6.00M |  S.W.L (Full Height) 1750KG |  S.W.L (Full Reach) 800KG |  Max S.W.L 2500KG |  Reach (Max Lift Height) 0.15M |  Max Forward Reach 3.06M |
Working Height 7.00M | S.W.L (Full Height) 2400KG | S.W.L (Full Reach) 1250KG | Max S.W.L 3100KG | Reach (Max Lift Height) 0.54M | Max Forward Reach 3.70M |
Working Height 9.50M | S.W.L (Full Height) 1500KG | S.W.L (Full Reach) 450KG | Max S.W.L 3500KG | Reach (Max Lift Height) 2.49M | Max Forward Reach 6.52M |
Working Height 12.27M | S.W.L (Full Height) 3500KG | S.W.L (Full Reach) 1200KG | Max S.W.L 3500KG | Reach (Max Lift Height) 0.54M | Max Forward Reach 8.06M |
Working Height 13.78M | S.W.L (Full Height) 3000KG | S.W.L (Full Reach) 1250KG | Max S.W.L 4000KG | Reach (Max Lift Height) 1.01M | Max Forward Reach 9.64M |
Working Height 16.70M | S.W.L (Full Height) 2500KG | S.W.L (Full Reach) 600KG | Max S.W.L 4000KG | Reach (Max Lift Height) 2.05M | Max Forward Reach 12.50M |
Working Height 17.51M | S.W.L (Full Height) 2500KG | S.W.L (Full Reach) 550KG | Max S.W.L 4000KG | Reach (Max Lift Height) 1.88M | Max Forward Reach 13.34M |
Working Height 20.00M | S.W.L (Full Height) 1500KG | S.W.L (Full Reach) 200KG | Max S.W.L 4000KG | Reach (Max Lift Height) 2.82M | Max Forward Reach 15.90M |

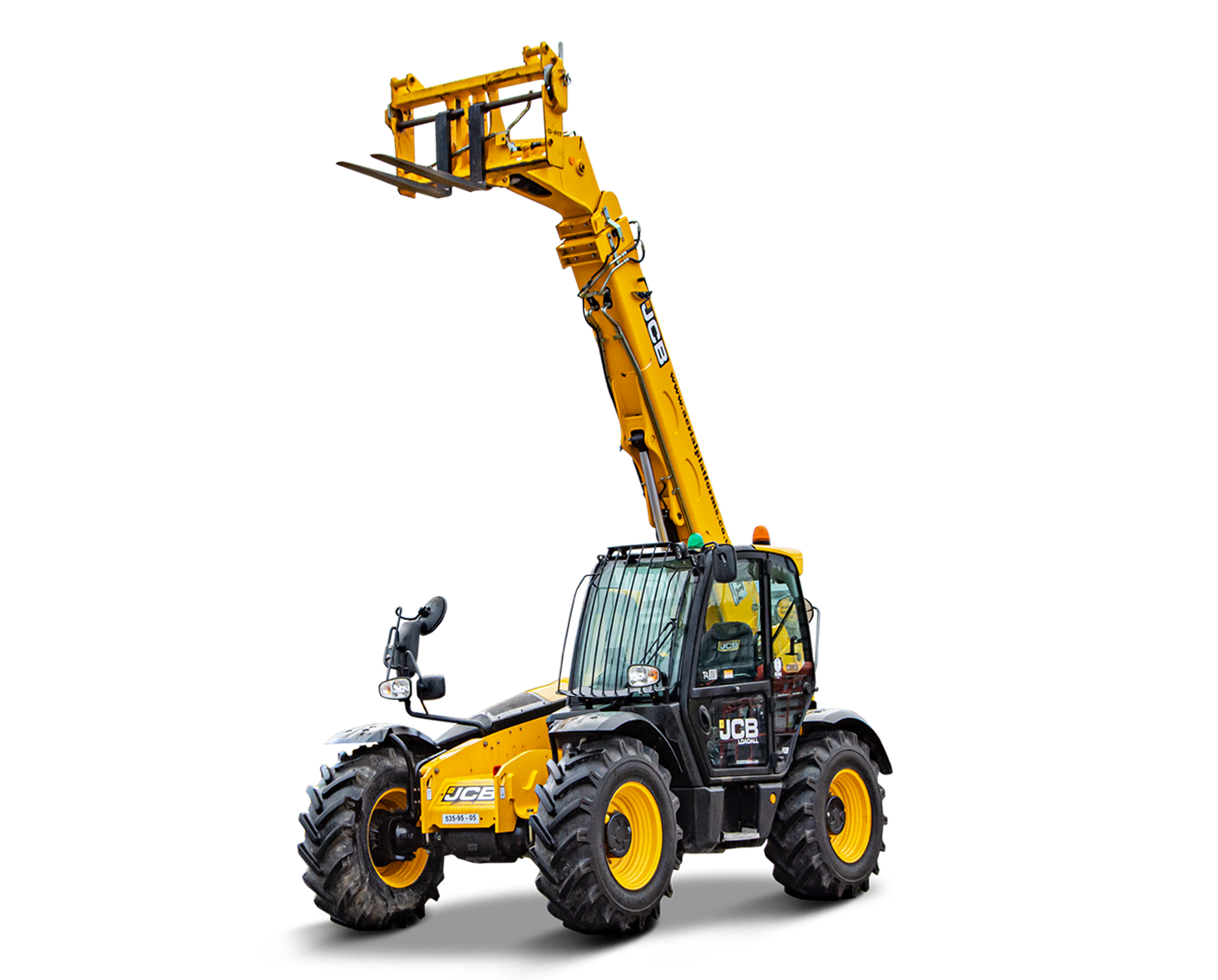

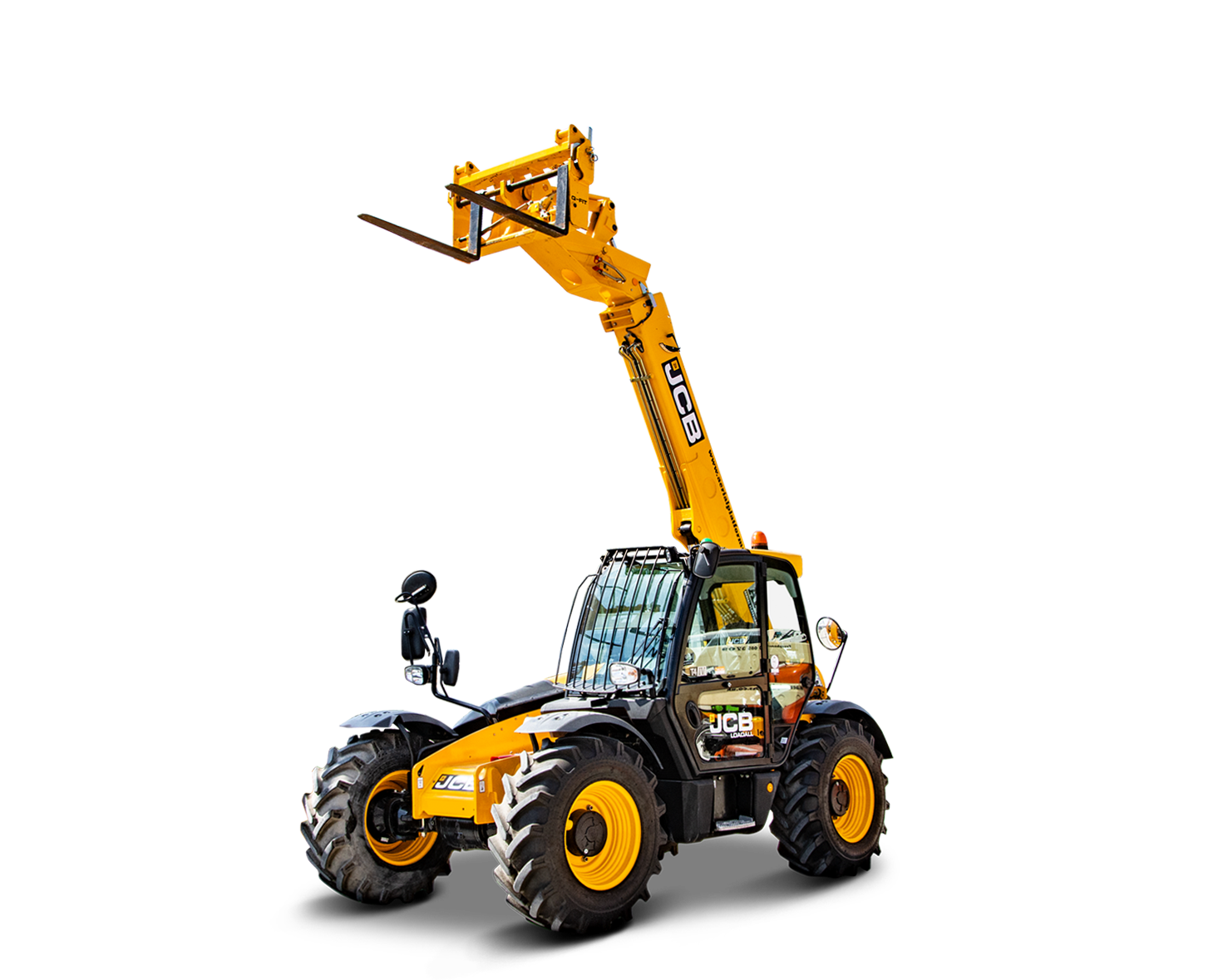

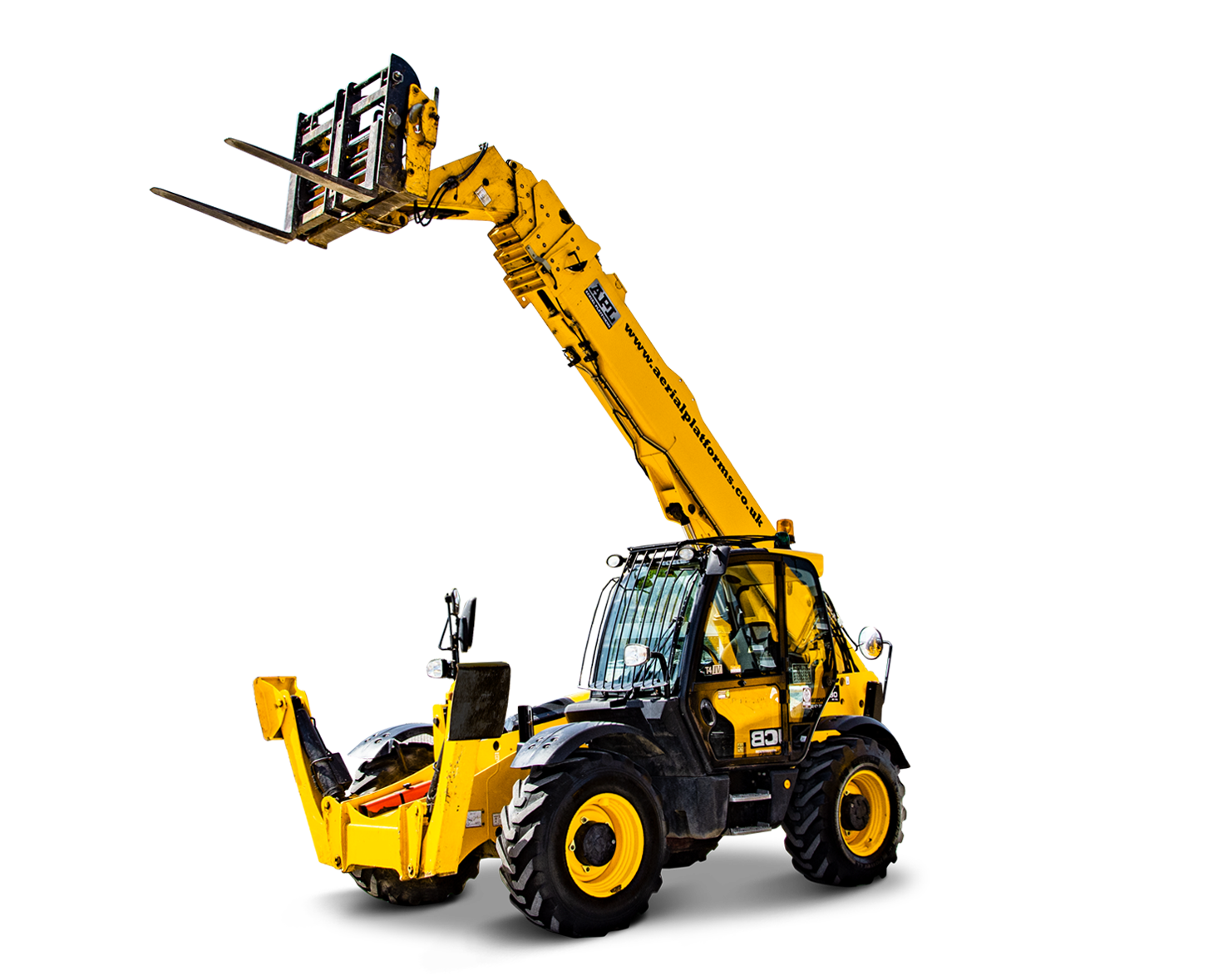

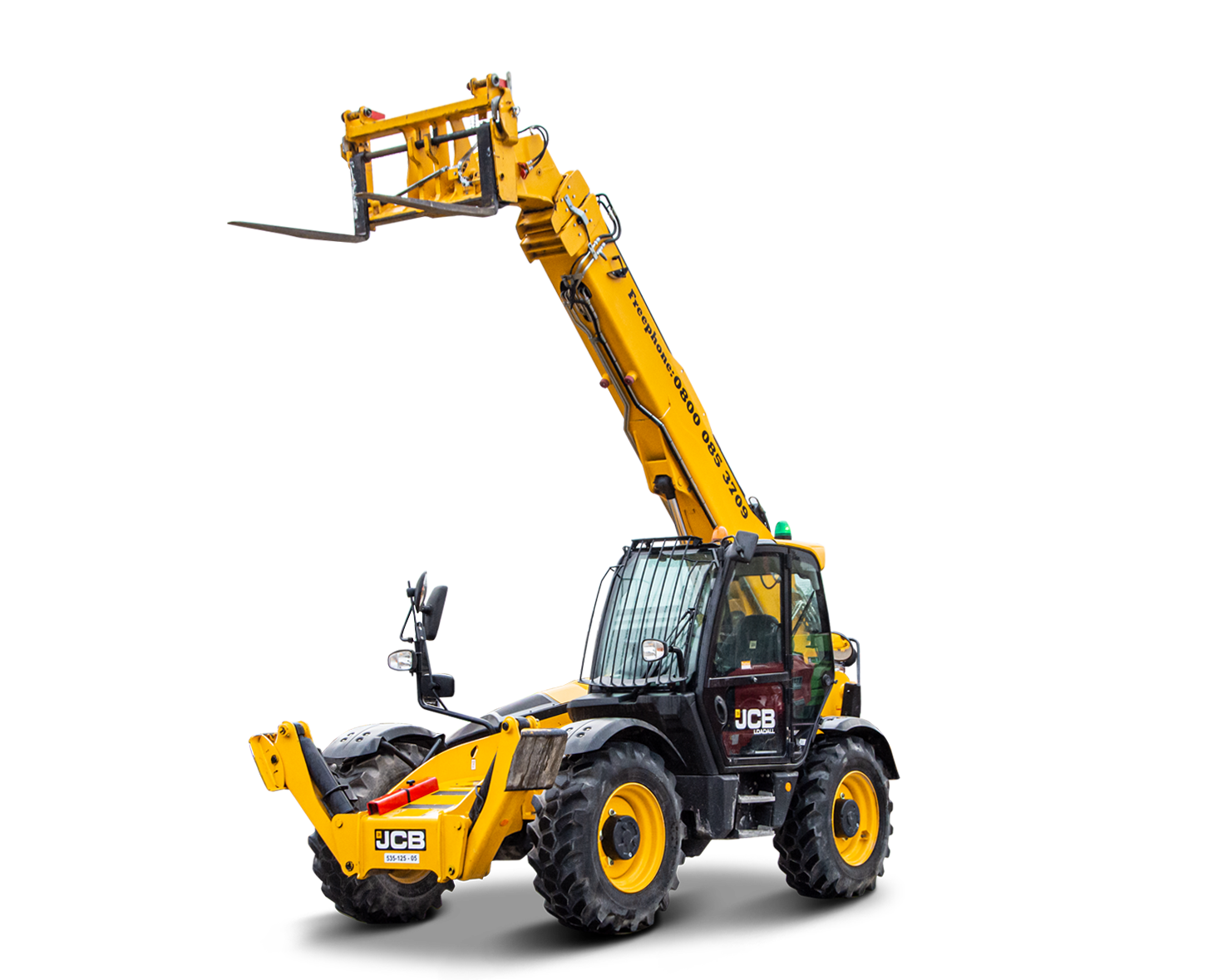

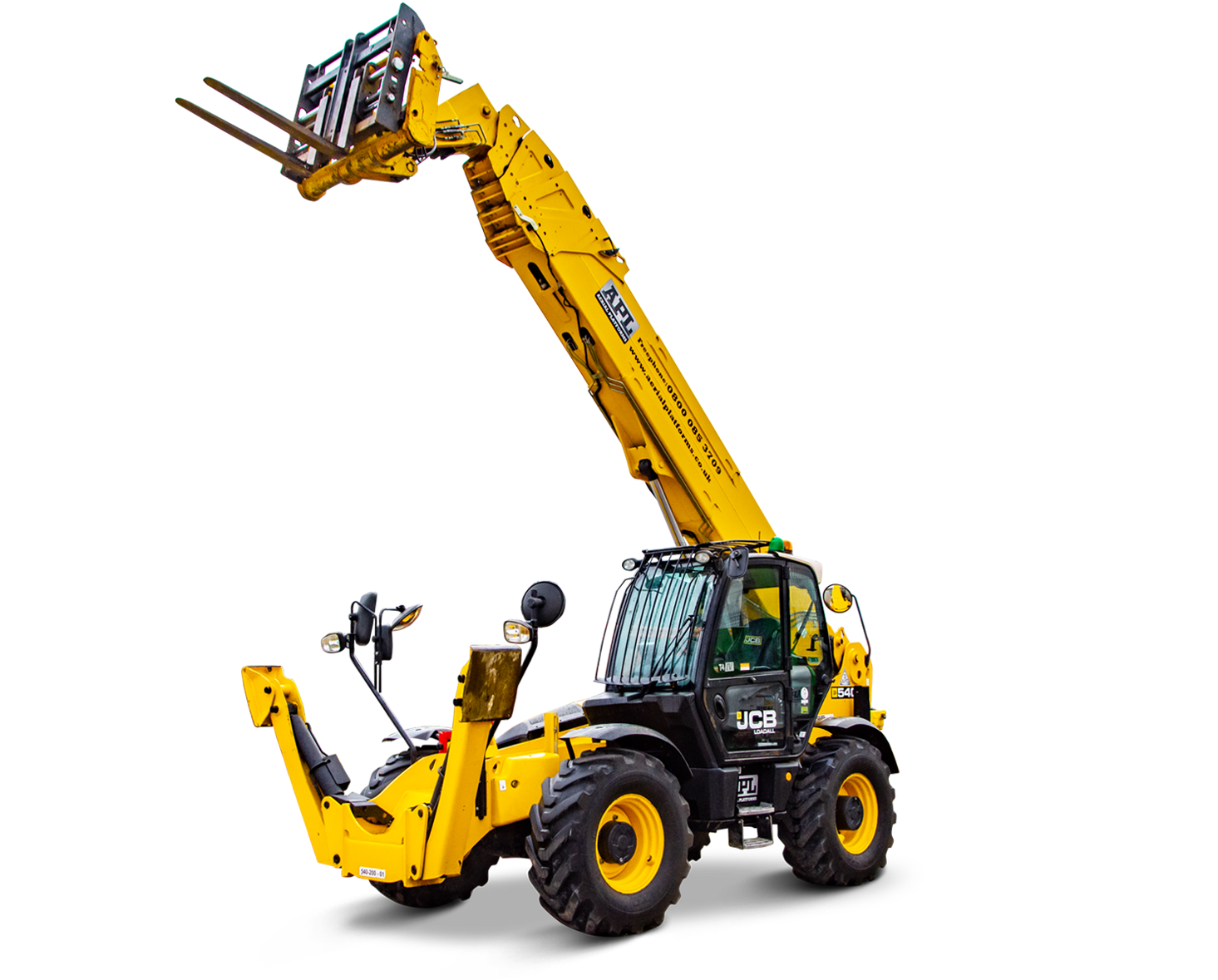

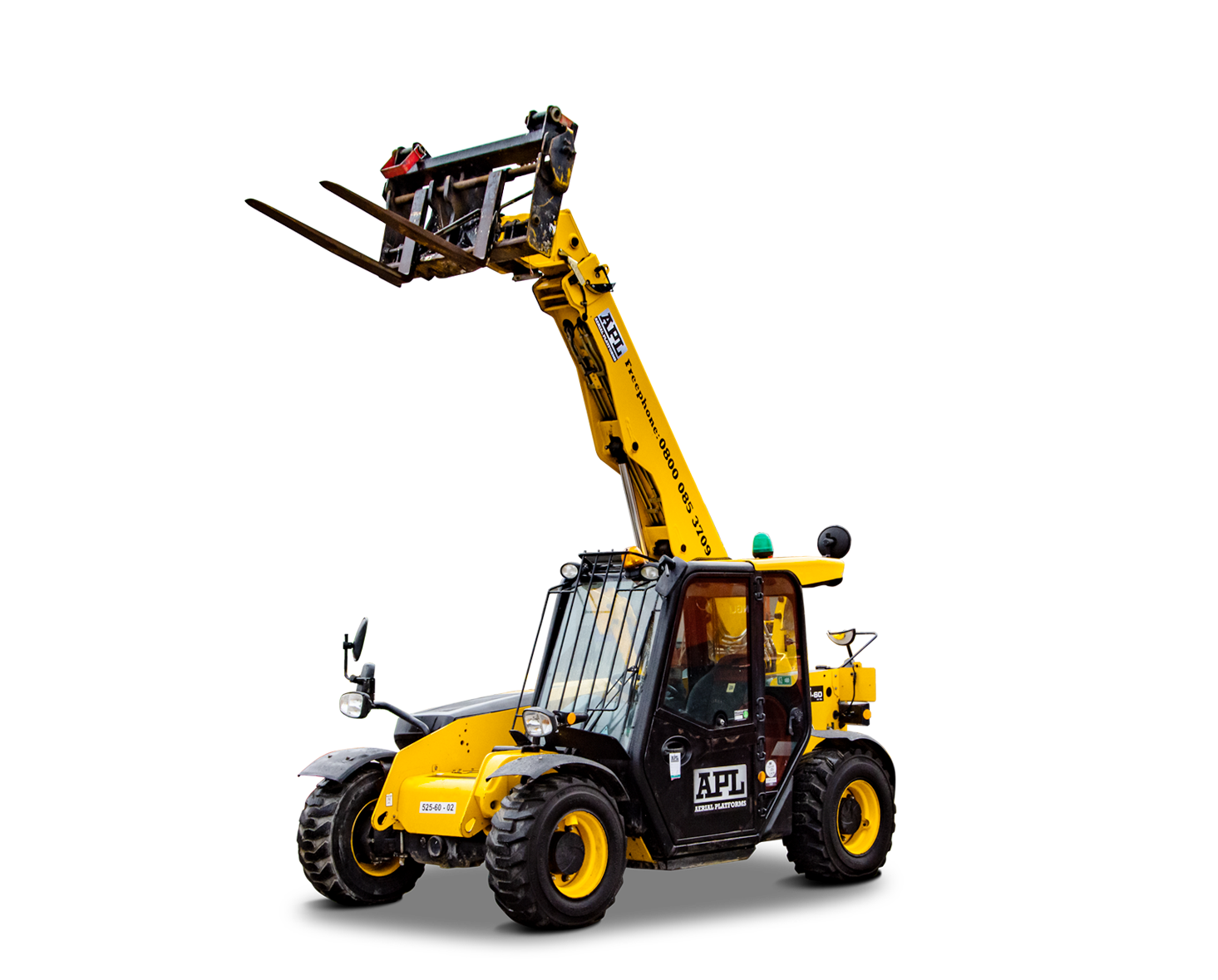

| 525-60 | 531-70 | 535-95 | 535-125 | 535-140 | 540-170 | 540-180 | 540-200 | |
| Working Height | 6.00M | 7,00M | 9.50M | 12.27M | 13.78M | 16.70M | 17.51M | 20.00M |
| Lift Capacity (full height) | 1750KG | 2400KG | 1500KG | 3500KG | 3000KG | 2500KG | 2500KG | 1500KG |
| Lift Capacity (full reach) | 800KG | 1250KG | 450KG | 1200KG | 1250KG | 600KG | 550KG | 200KG |
| Max. lift capacity | 2500KG | 3100KG | 3500KG | 3500KG | 4000KG | 4000KG | 4000KG | 4000KG |
| Reach at max. lift height | 0.15M | 0.54M | 2.49M | 0.54M | 1.01M | 2.05M | 1.88M | 2.82M |
| Max.forward reach | 3.50M | 3.70M | 6.52M | 8.06M | 9.64M | 12.50M | 13.34M | 15.90M |
| Stabilisers | - | - | - | |||||
| Sway | - | - | - | |||||
| Manufacturer | JCB | JCB | JCB | JCB | JCB | JCB | JCB | JCB |
