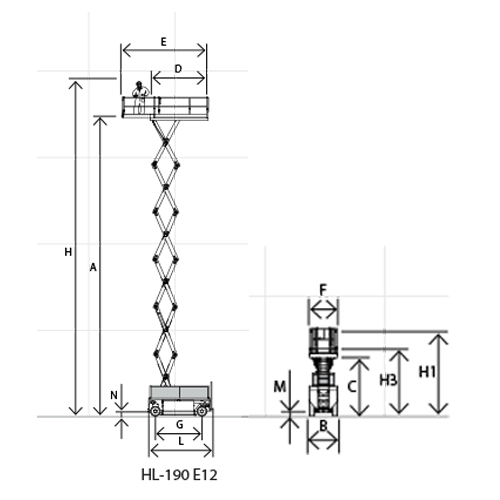

| H. Working Height | 18.80m |
| A. Platform Height | 16.80m |
| C. Platform Height (Lowered) | 2.24m |
| DxF. Platform Length x Width (Retracted) | 3.38m x 1.16m |
| ExF. Platform Length x Width (Extended) | 4.88m x 1.16m |
| H1. Height Stowed | 3.40m |
| H3. Height Stowed (Rails Folded) | 2.65m |
| LxB. Machine Length x Base | 3.74m x 1.20m |
| G. Wheelbase | 2.67m |
| M. Ground Clearance (Stowed) | 148mm |
| N. Ground Clearance (Raised) | 235mm |
| Lift Capacity | 500kg |
| Gradeability | 25% |
| Weight | 7,985kg |
Control box quick disconnect for easy operation from the ground
Drivable at full height of 16.80m
3.38m x 1.16m dimensions with an added 1.5m extending deck
Benefit from a lift capacity of 500kg suitable for 2 persons + 340kg
On-board 230V power supply on platform to power tools
Proportional controls and intuitive control box design for easy operation
