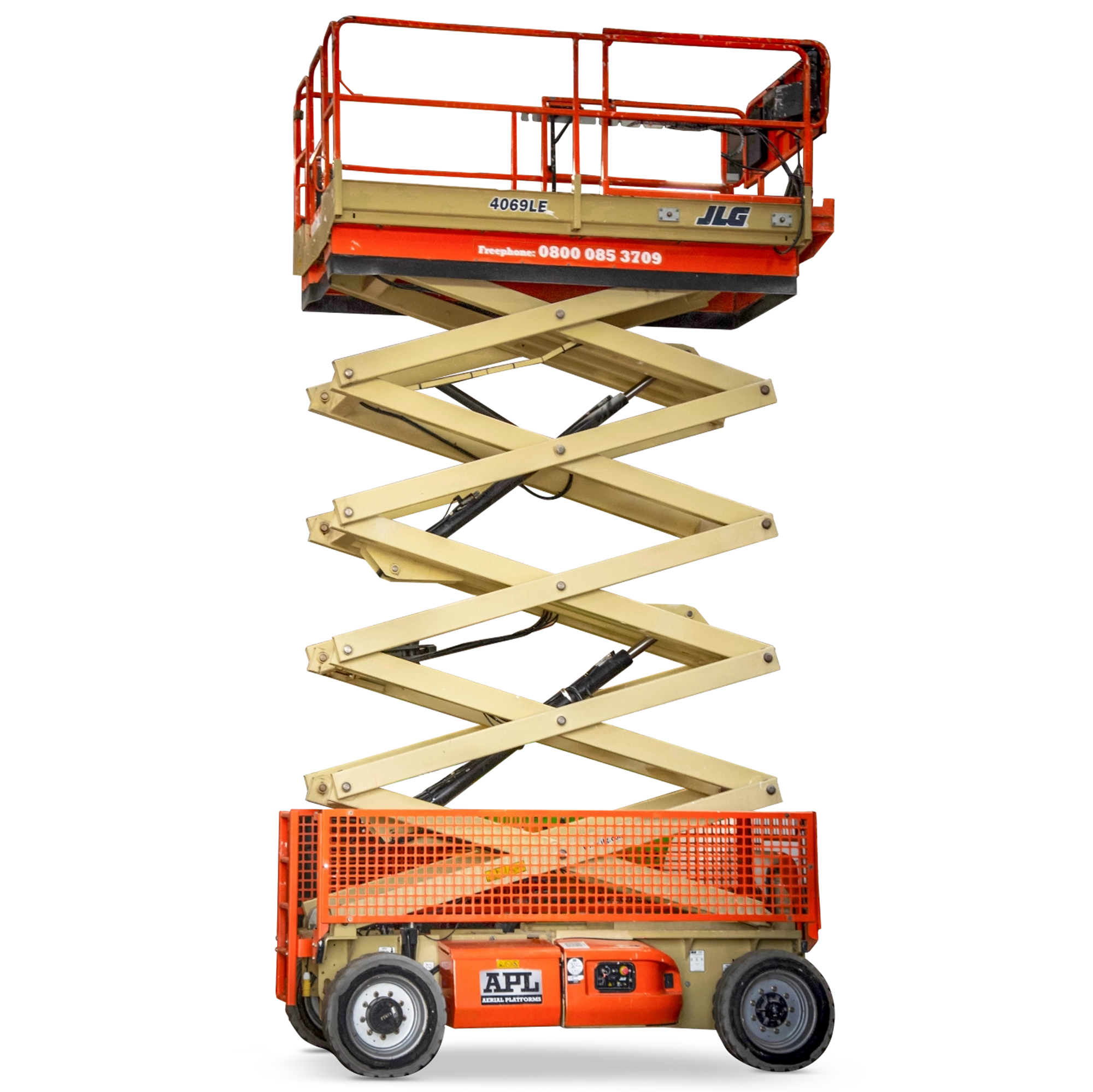

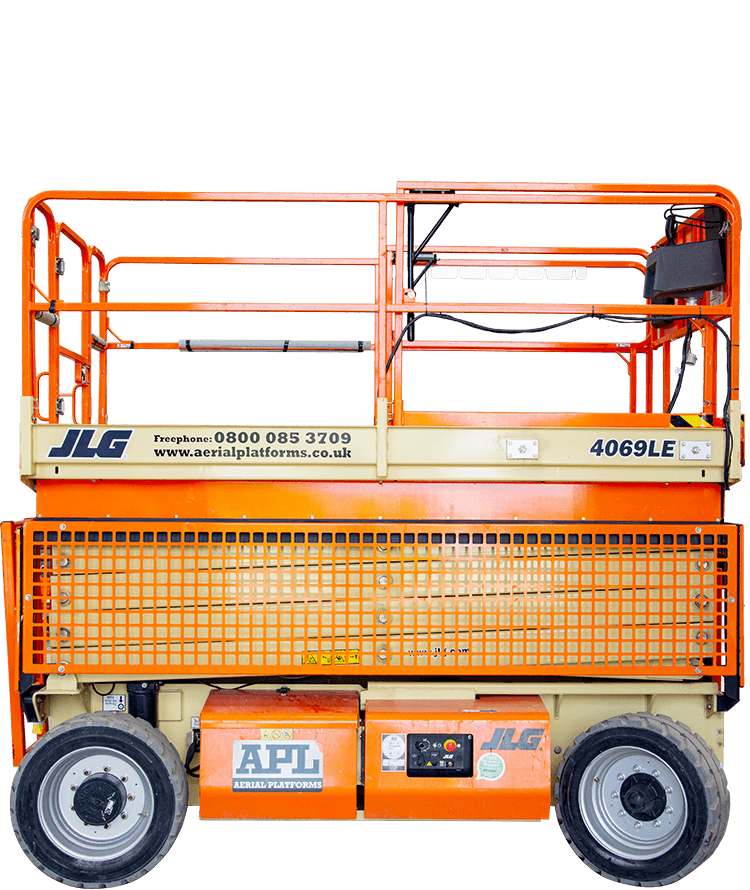

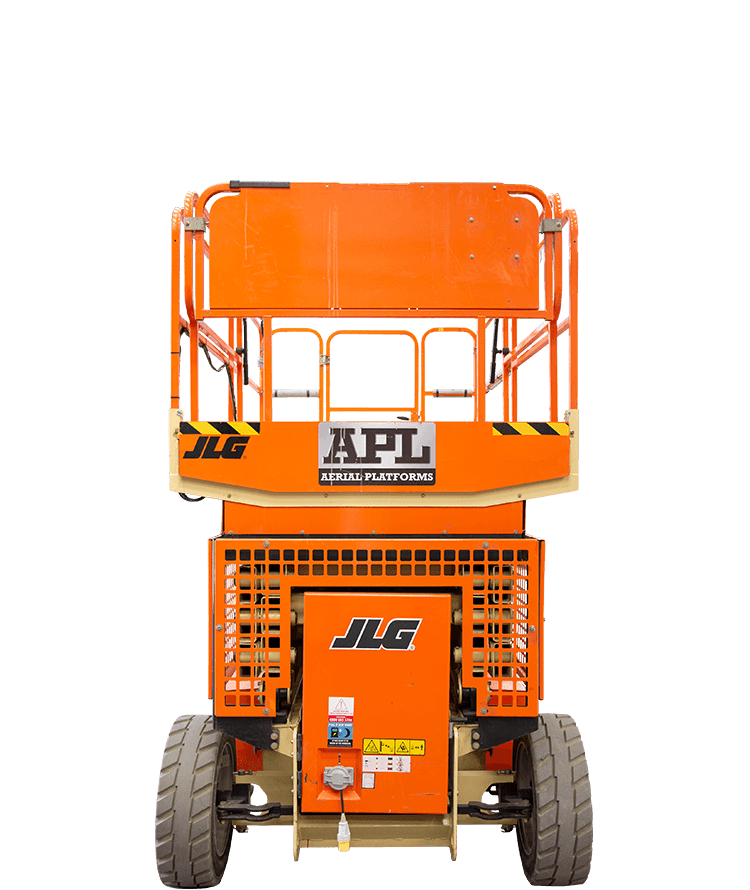

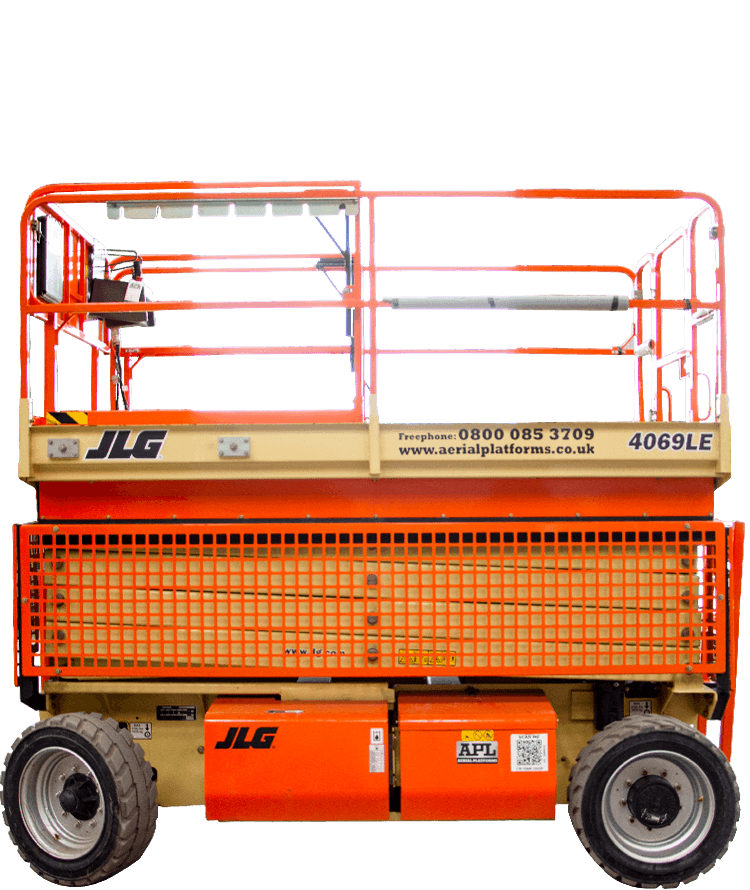

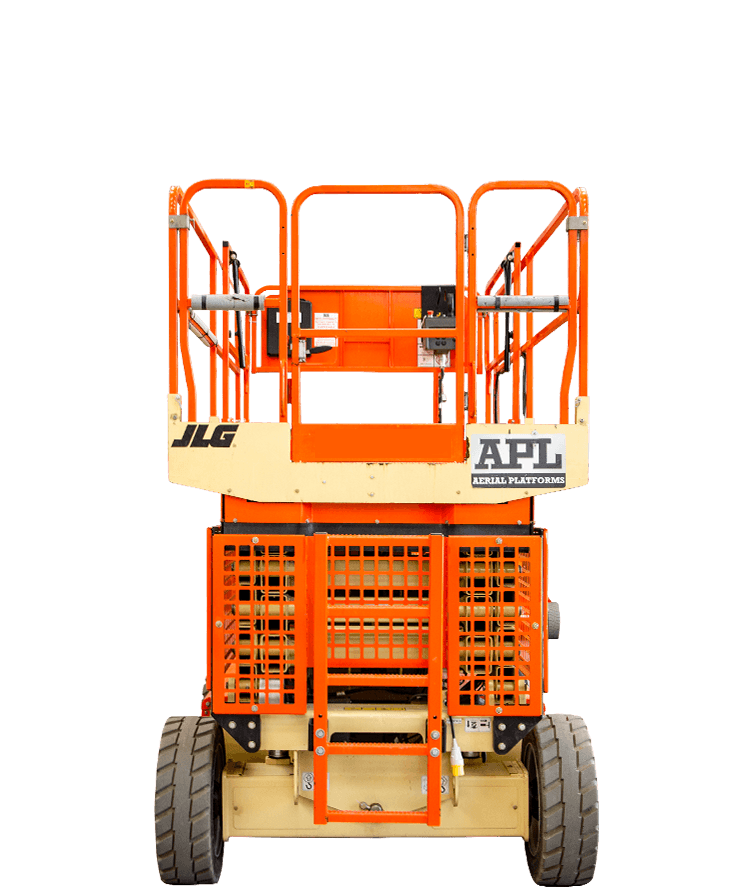

JLG 4069LE Electric Scissor Lift

Platform Specifications

Working Height 14.19m
Platform Height 12.19m
A. Stowed Height 2.83m
B. Platform Railing Height 1.10m
C. Stowed Height (Rails Down) 2.04m
D. Platform Size (W x L) 1.65m x 2.92m
E. Deck Extension 0.91m
F. Overall Width 1.75m
G. Overall Length 3.07m
H. Wheelbase 2.32m
I. Ground Clearance 0.20m
Lift Capacity 360kg
Gradeability 35%
Turning Radius (Inside) 2.29m
Turning Radius (Outside) 4.88m
Weight 5,300kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

STANDARD FEATURES

Superior performance on or off slab with oscillating axle and automatic traction control (ATC) standard

High-efficiency direct electric drive with double the duty cycle of similar-sized machines keep you on the job longer

Environmentally friendly with zero emissions

MORE ECONOMIC

Electric power for zero emissions and near-silent running indoors

MORE PRODUCTIVE

Boost efficiency with direct electric drive

MORE ACCESS

Enjoy enhanced versatility with true multi-terrain capability

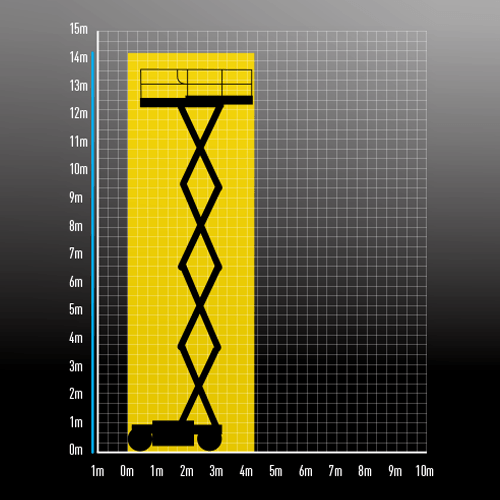

WORKING ENVELOPE

DIMENSIONS
