| Working Height | 20.39m |
| Platform Height | 18.39m |

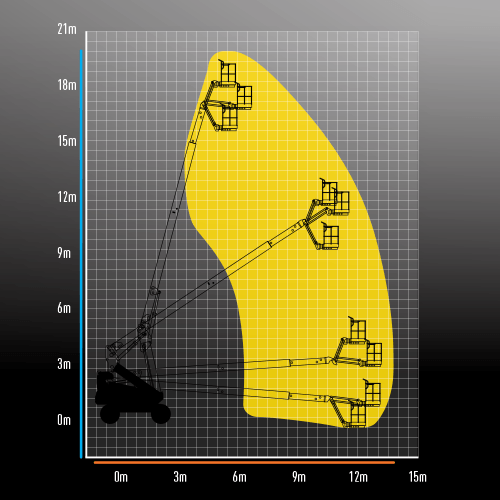

| Horizontal Outreach | 13.54m |
| Swing | 400° |
| Lift Capacity | 230kg |
| Platform Rotator (Hydraulic) | 180° |
| Jib Overall Length | 1.24m |
| Jib Range of Articulation (Vertical) | 145° (+89°/-56°) |
| A. Platform Size | 0.76m x 1.83m |
| B. Overall Width | 2.42m |
| C. Tailswing | 1.23m |
| D. Stowed Height | 2.54m |
| E. Stowed Length | 10.15m |
| F. Wheelbase | 2.74m |
| G. Ground Clearance | 0.30m |
| Gradeability | 30% |
| Turning Radius (Inside) | 1.22m |
| Turning Radius (Outside) | 4.64m |
| Weight | 8,015kg* |
Largest electric drive booms in the industry offering 20.00 m working heights
Increased accessibility with the optional JibPLUS® with side-to-side movement and near-vertical jib operation
Zero emissions, reduced noise and standard non-marking tires for environmentally-friendly equipment
Electric power for zero emissions and near-silent running indoors
Stay up and running longer with onboard charging
Get great access to hard-to-reach places with near-vertical jib positioning and 180° side-to-side movement
