| A. Working Height | 9.75m |
| B. Platform Height | 7.92m |
| C. Height Stowed | 2.15m |
| D. Overall Width | 0.81m |
| E. Overall Length | 2.32m |
| F. Stowed Height (Rails Up) | 2.15m |
| G. Stowed Height (Rails Down) | 1.79m |
| H. Platform Width (Inside Dimension) | 0.71m |
| I. Platform Length (Inside Dimension) | 2.13m |
| Deck Extension | 0.91m |
| Ground Clearance (Stowed) | 8.89cm |
| Ground Clearance (Raised) | 1.90cm |
| Wheelbase | 1.75m |
| Gradeability | 30% |
| Turning Radius (Inside) | 1.27m |
| Turning Radius (Outside) | 2.74m |
| Maximum Drive Height | Full Height |
| Lift Capacity | 227kg |
| Maximum No. of Persons | 2 |
| Wind Rating | 28mph (12.5 m/s) |
| Weight | 1,876kg |

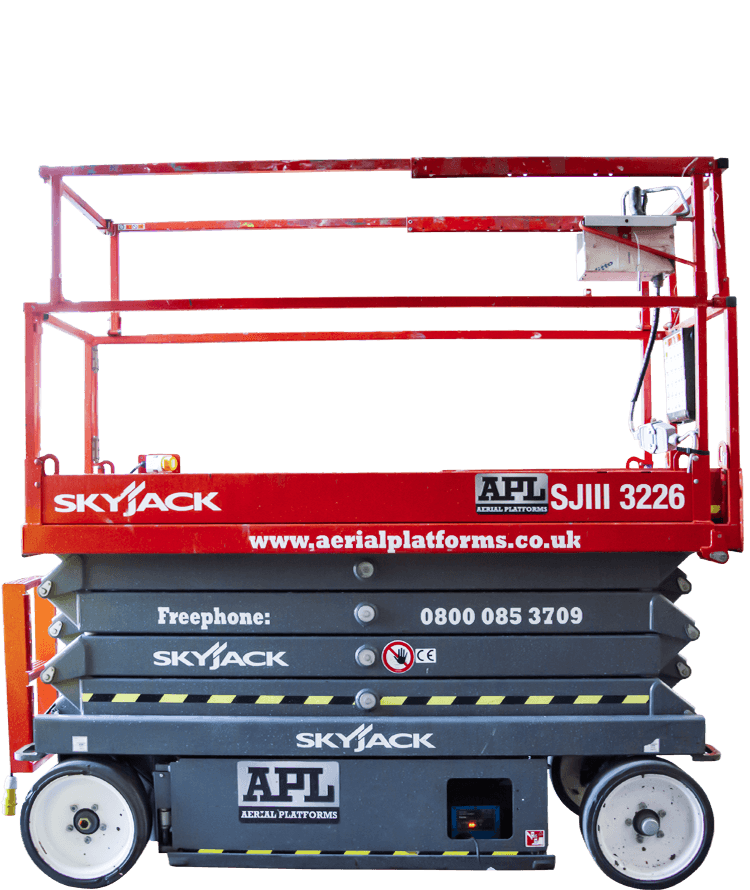

These ultra compact self propelled scissors are perfect for manoeuvering and working in small spaces.
Collapsable guard rails for increased manoeuvrability in tight spaces
Power-to-platform as standard allowing for increased productivity for your workforce
Max working height of 9.75m suitable for a number of internal applications
Benefit from a lift capacity of 227kg
Low machine weight of just 1,876kg making it ideal for work on sensitive flooring
