Dingli BA16CMRT2
Dingli BA16CMRT2
Dingli BA16CMRT2
Dingli BA16CMRT2
Dingli BA16CMRT2
Dingli BA16CMRT2
Right Arrow
Left Arrow
ENQUIRE NOW Call hire desk 0800 085 3709

Max. Working Height

16.27m

Max. Horizontal Reach

8.69m

Overall Width (Transport)

2.44m

Lift Capacity

320kg

Gradeability

40%

Weight

7,850kg

Google review
Dingli

Dingli BA16CMRT2

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height

16.27m

Max.Platform Height

14.27m

Max. Horizontal Reach

8.69m

Up And Over Clearance

7.30m

Overall Width (Transport)

2.44m

Overall Height (Transport)

2.58m

Overall Length (Transport)

5.17m

Platform Size (Length×Width)

1.83m × 0.79m

Ground Clearance (A)

0.31m

Wheelbase (B)

2.40m

Max. Down Probing Depth

0.42m

Lift Capacity

320kg

Max Occupants

2

Tailswing Turntable

0m

Turning Radius (Inside/Outside)

3m/4.73m

Turret Rotation (Continuous)

360°

Platform Rotation

180°

Jib Movement

132°

Gradeability

40%

Max Working Slope

X-5°/Y-5°

Weight

7,850kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Your safety is our priority. All our equipment meets strict health and safety standards, with clear operational guidelines and risk assessments. For training, maintenance, or safety documentation, please refer to the included manuals or contact our team for support.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

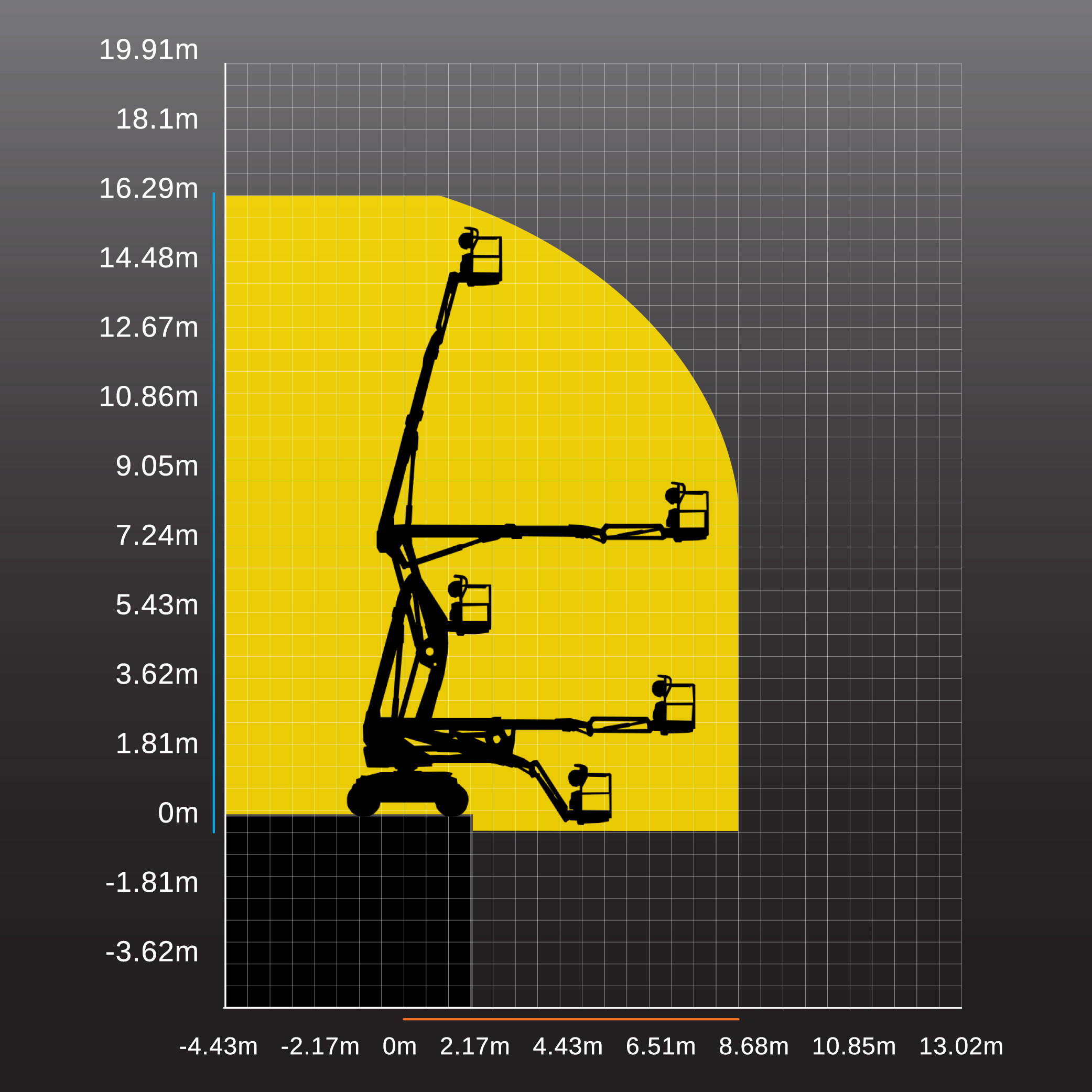

Working envelope

Working envelope

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The Dingli BA16CMRT2 is a robust articulating boom lift designed for reliable performance on challenging terrain. It offers strong four-wheel-drive capability, smooth proportional controls and a generous platform capacity to maximise productivity at height. Equipped with advanced safety systems, including tilt and descent alarms, load-sensing technology and automatic engine protection, it delivers both efficiency and operator confidence on every job.

STANDARD FEATURES

The Dingli BA16CMRT2 features a platform that swings 180° left and right for flexible positioning.

Equipped with a tilt alarm and descent alarm for enhanced operator safety.

Includes a self-levelling platform to maintain operator stability and comfort.

Eco-Friendly & Flexible Fuel

The engine supports bio-diesel, allowing for more economical, energy-efficient, and environmentally friendly operation.

Four-Wheel Drive & Two-Wheel Steering

Offers both four-wheel drive and two-wheel steering to maximise manoeuvrability and traction in tight or rough spaces.

Eco-Friendly & Flexible Fuel

It includes a tilt alarm and a descent alarm, a platform load-sense system to prevent overload, a fault-diagnosis system for early error detection, an operator anti-crushing protection system and an auto-engine fault shutdown feature.
