LGMG AR14J

Specifications

Max. Working Height

16.09m

Platform Height

14.09m

Horizontal Outreach

7.67m

Up and Over Height

7.56m

(A) Stowed Length

6.77m

(B) Stowed Width

2.31m

(C) Stowed Height

2.17m

(D) Platform Length

1.83m

(E) Platform Width

0.76m

Platform Capacity

230kg

Wheelbase

2.059m

Ground Clearance

0.36m

Platform Occupants Max. (in/out)

2/2

Gradeability-Stowed

45%

Platform Rotator

160°

Turnable Rotation

355°

Turnable Tailswing

0m

Turning Radius - Inside/Outside

1.94m/4.41m

Weight

7,160kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

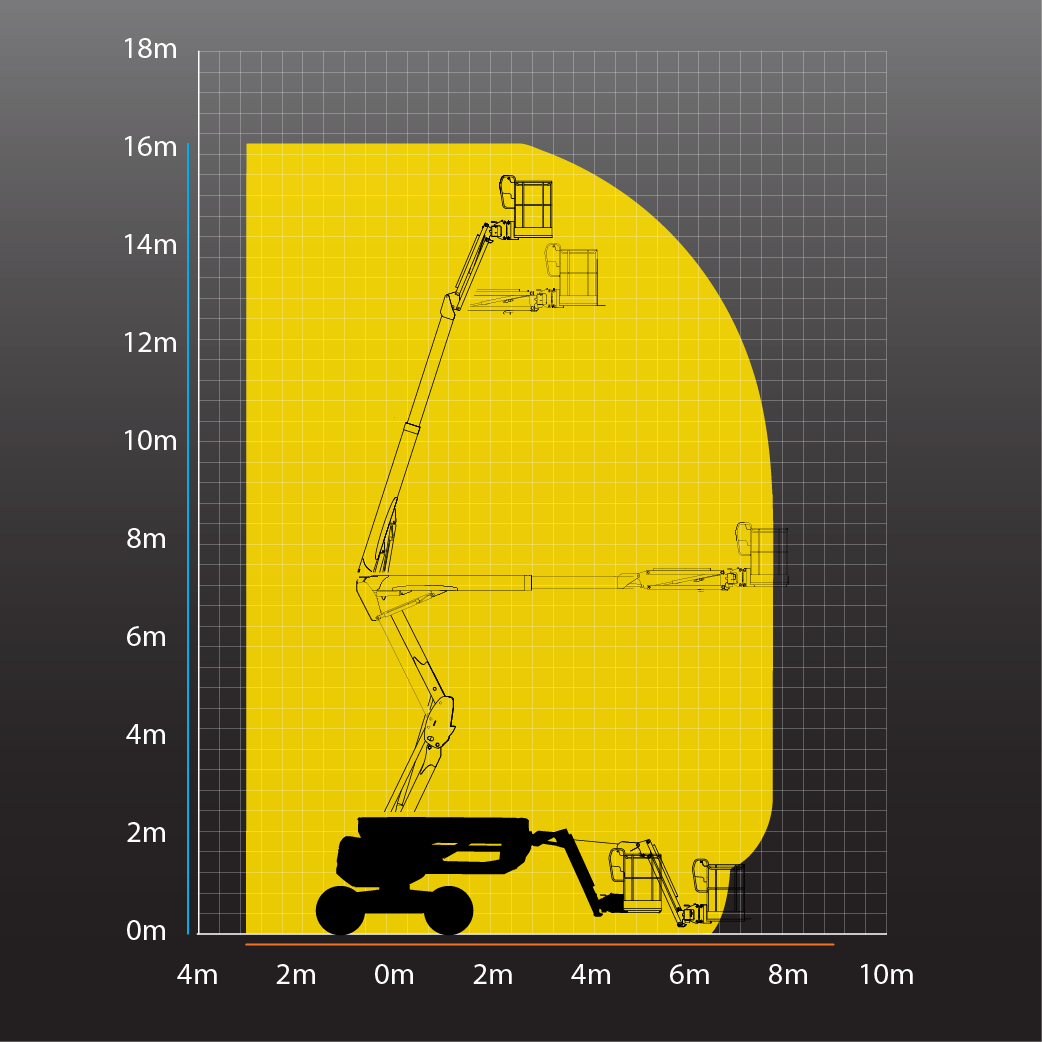

Working envelope

Working envelope

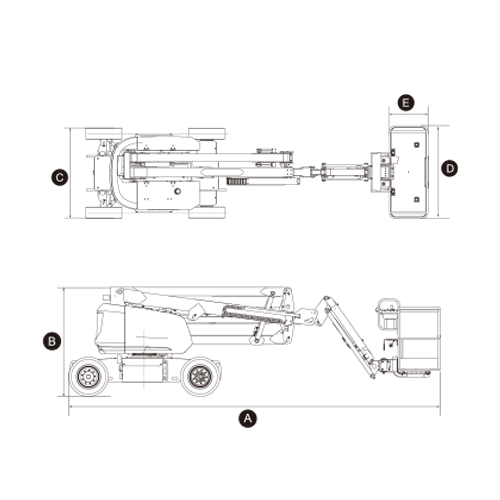

Dimension drawing

Dimension drawing

MACHINE INFORMATION

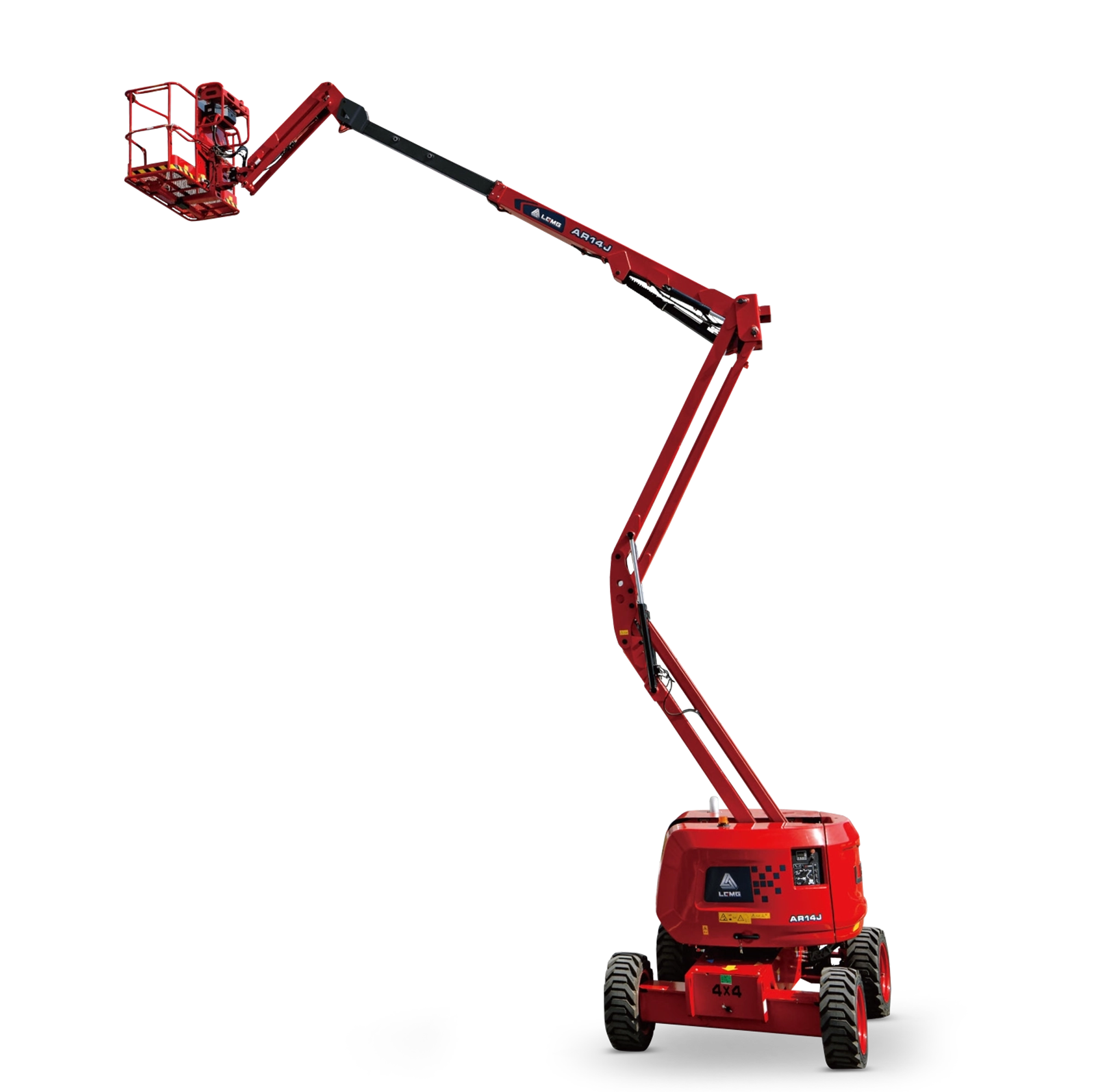

The LGMG AR14J Diesel Articulated Boom Lift has been purpose built for outdoor construction and industrial applications. Its simple and reliable design with industrial features make this machine easy to operate. With a maximum working height of 16.09 meters and a horizontal outreach of 7.67 meters, it allows access to challenging work areas. The platform accommodates up to two operators with a capacity of 230 kilograms. Its design includes oscillating axles and four-wheel drive, providing superior gradeability on rough terrains. The self-leveling platform, coupled with hydraulic platform rotation, ensures exceptional productivity and precise positioning. Additionally, features like the swing-out engine tray facilitate easy maintenance, while the intelligent self-diagnostic system aids in quick troubleshooting.

STANDARD FEATURES

Oscillating axels and four-wheel drive delivers better gradeability on rough terrain.

Self-leveling platform to ether with hydraulic platform rotation deliver exceptional productivity.

Proportional smooth driving, precise positioning and comfortable operation.

Working Height

16.09m

Horizontal Outreach

7.67m

Working Height

230kg

More Boom Lifts
SEE MORE
LGMG A14JE
LGMG A14JE

Working height

15.80m

Platform capacity

230kg

Outreach

7.81m

VIEW MODEL
Skyjack SJ46 AJ
Skyjack SJ46 AJ

Working height

15.93m

Platform capacity

227kg

Outreach

7.54m

VIEW MODEL
Snorkel A46JE
Snorkel A46JE

Working height

16.00m

Platform capacity

227kg

Outreach

7.35m

VIEW MODEL
Manitou 160 ATJ+
Manitou 160 ATJ+

Working height

16.01m

Platform capacity

400kg

Outreach

8.95m

VIEW MODEL

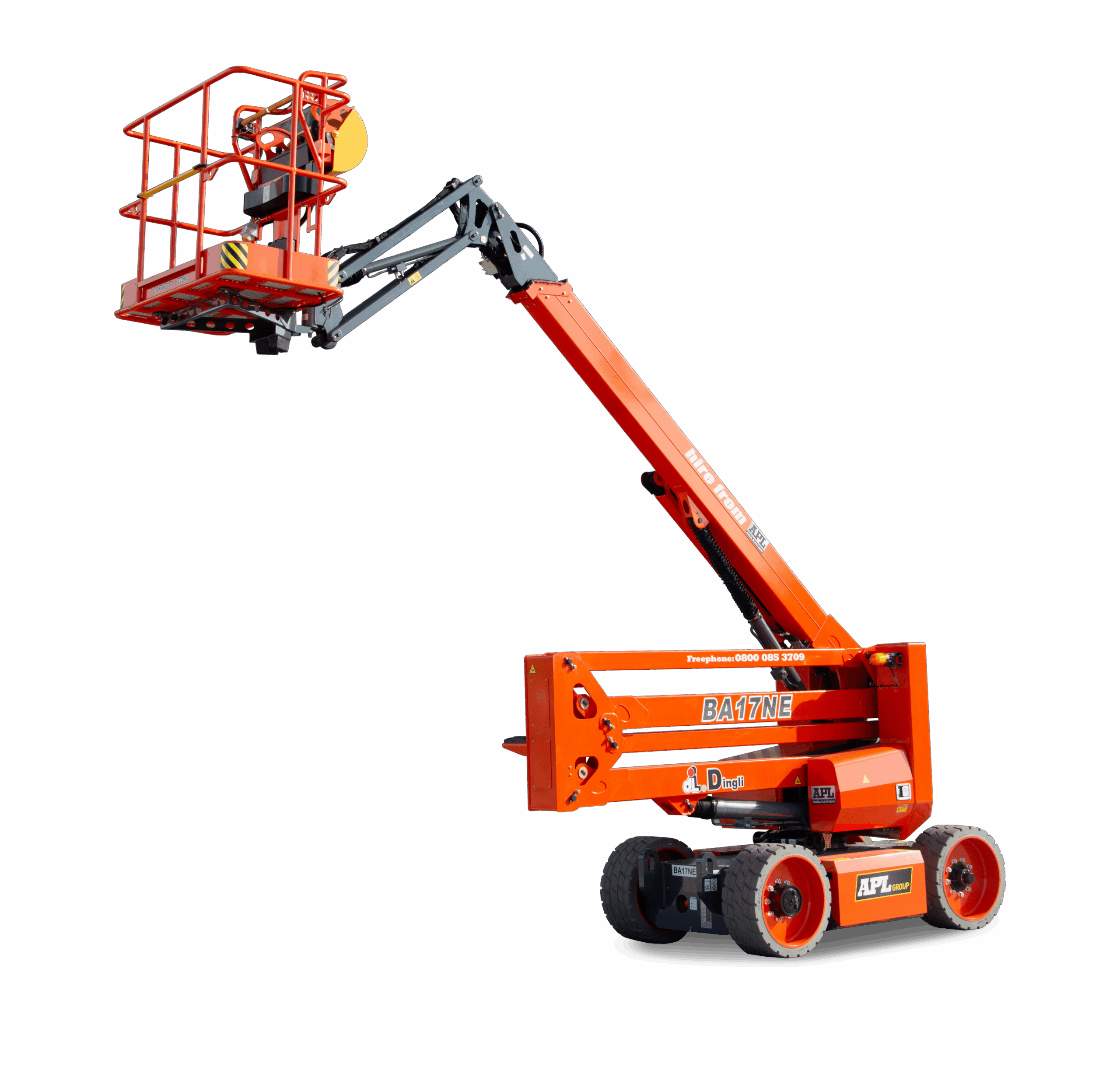

Dingli BA17NE
