Dingli DL11.5

Specifications

Max. Working Height

11.20m

Max.Platform Height

9.20m

Max.Horizontal Reach

2.62m

A. Overall Length(Stowed)

2.62m

B. Overall Width(Stowed)

1.0m

C. Overall Height(Stowed)

1.99m

Platform Size(Length×Width)

0.69m × 0.93m

Ground Clearance

0.07m

D. Wheelbase

1.22m

Lift Capacity

200kg

Max Occupants

1/2

Turning Radius (Inside/Outside)

0/1.80m

Turret Rotation (Continuous)

345°

Jib Movement

130°

Gradeability

25%

Max Working Slope

X-2.5°/Y-2.5°

Weight

2,970kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Power-To-Platform

Power-To-Platform

Has power to platform

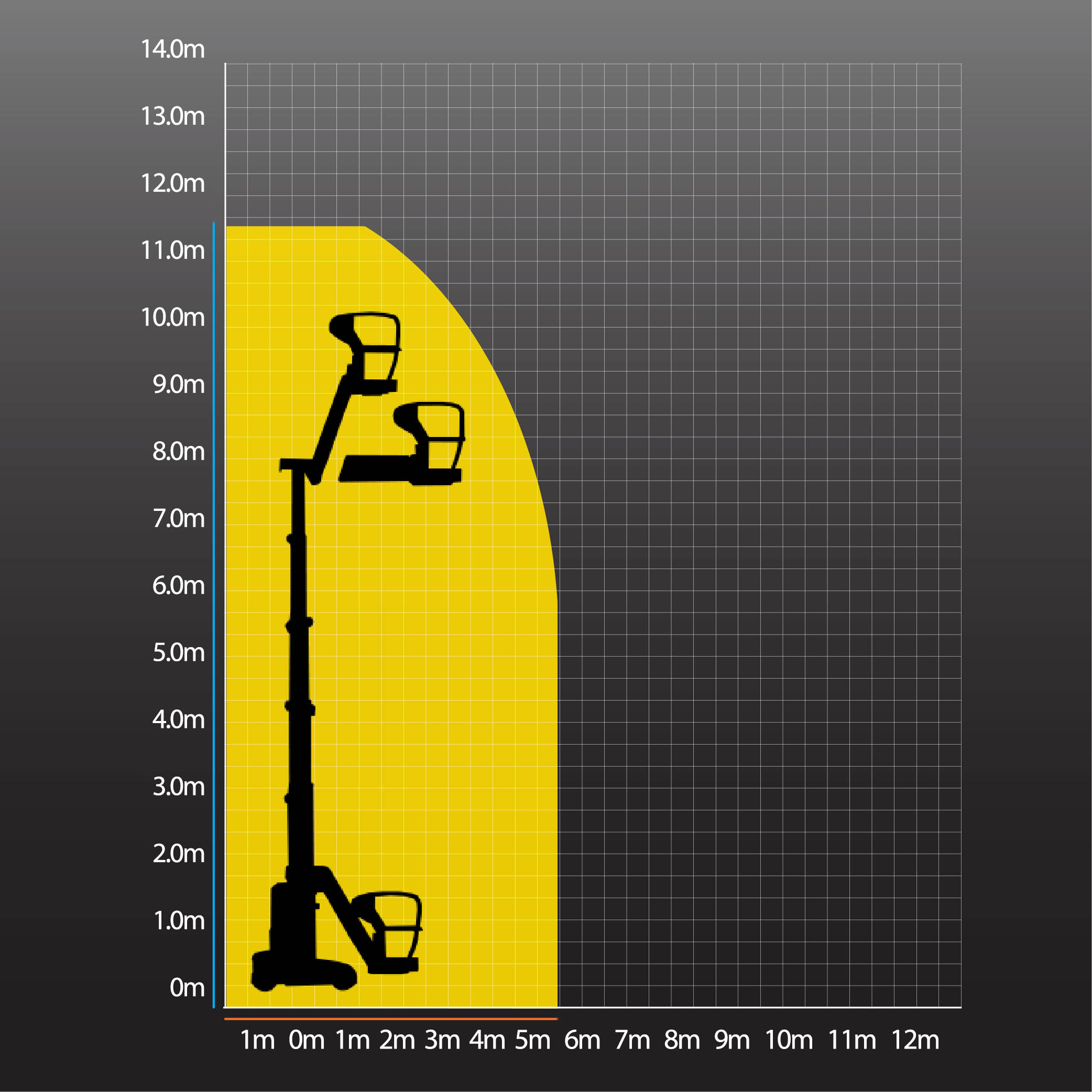

Working envelope

Working envelope

Dimension drawing

Dimension drawing

MACHINE INFORMATION

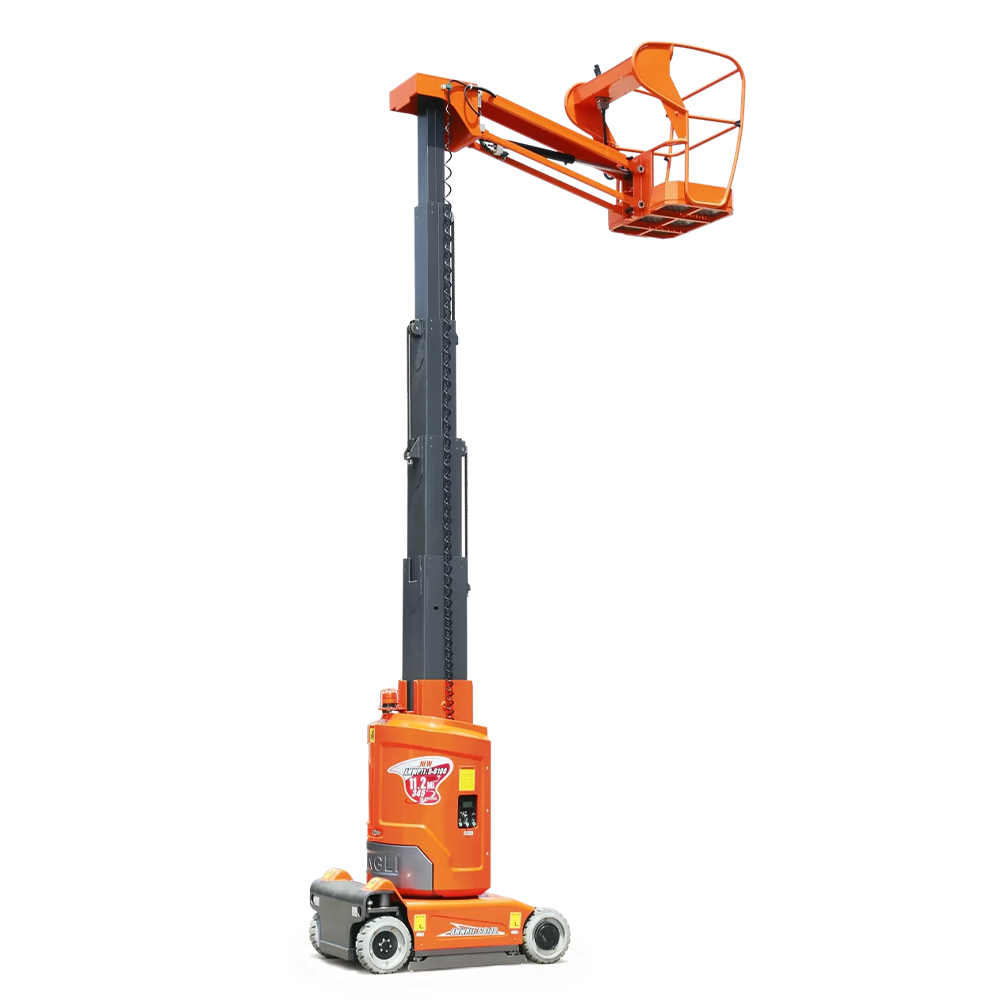

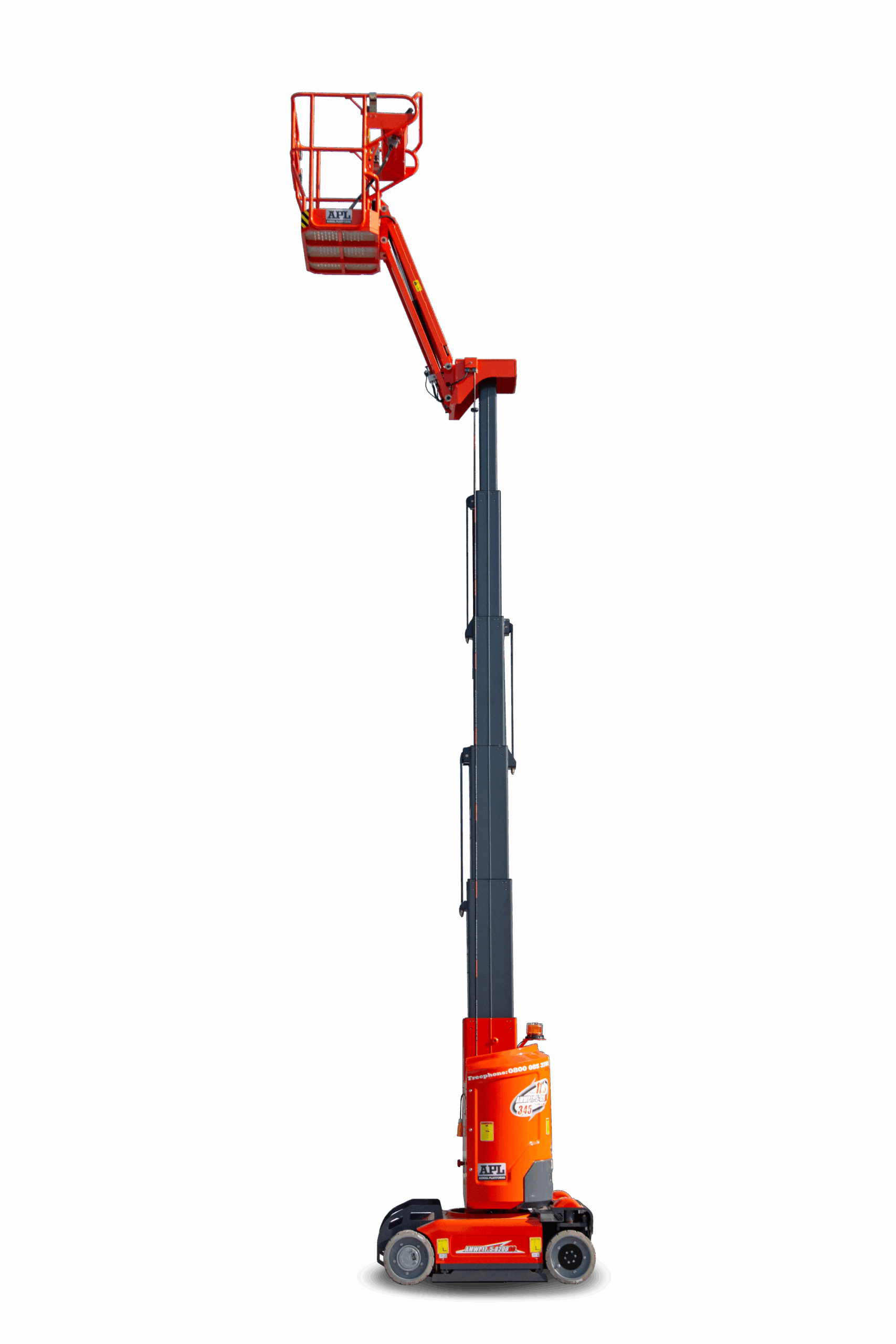

The Dingli DL11.5 Electric Mast Lift is a quiet, eco-friendly solution designed for indoor tasks in confined areas like airports, hotels, and warehouses. Offering a maximum working height of 11.2m and a 3-meter horizontal outreach, it provides excellent versatility to access hard-to-reach spots. Its compact design enables smooth navigation, even in tight spaces, and it can be operated at full height for added efficiency. Equipped with a touch screen interface for simplified operation and diagnostics, along with automatic pothole protection, it ensures both convenience and safety on the job.

STANDARD FEATURES

The Dingli DL11.5 is better for inside use.

Equipped with its Onboard Diagnostic System, safety is ensured as malfunctions are quickly detected.

Maximum weight of the Dingli DL11.5 is 2,970kg.

Working Height

Max Working Height of 11.20m with a Max Platform Height of 9.20m

Horizontal Outreach

Max Horizontal Outreach of 2.62m

Working Height

Benefit from a 200kg platform capacity suited for 1/2 occupants and tools
