Electric Mast Lift

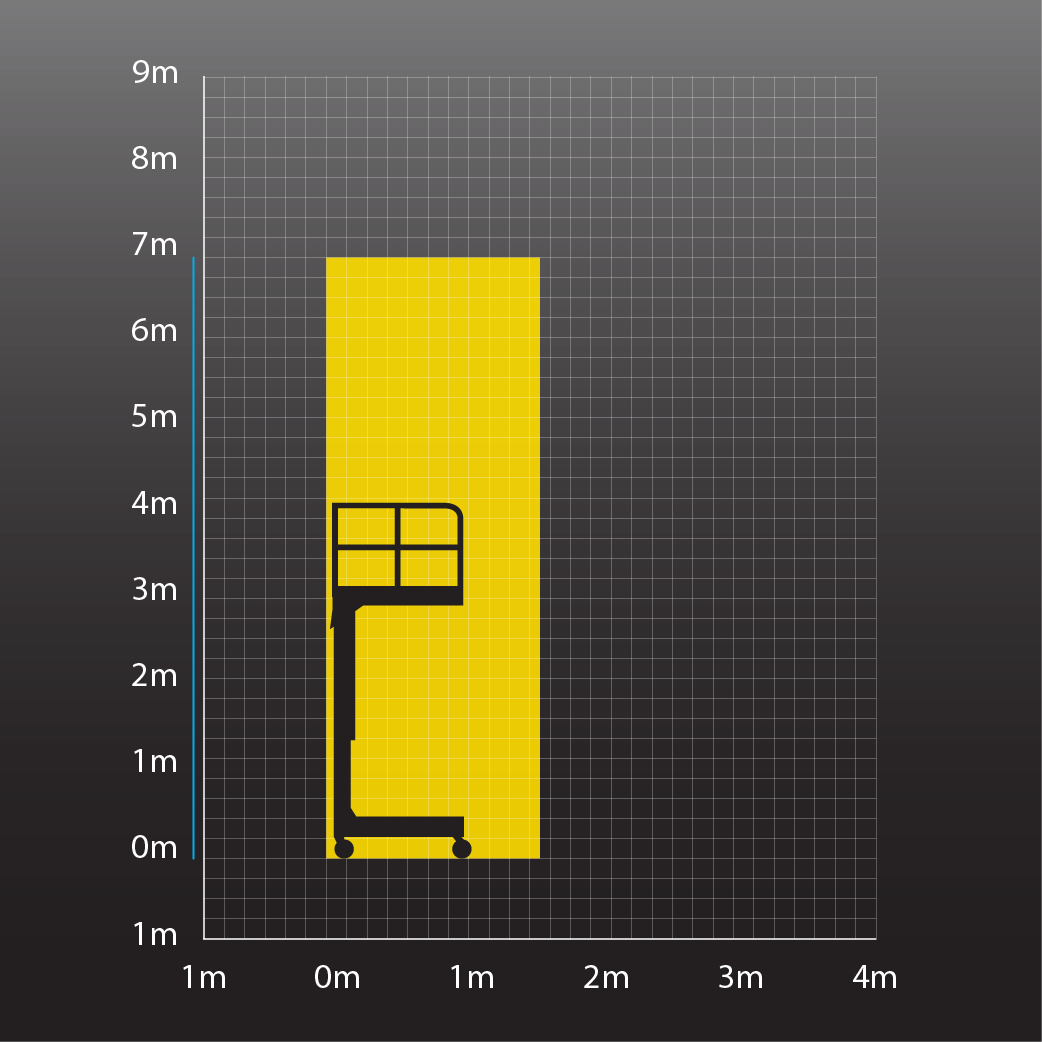

| Max. Working Height | 6.87m |
| Max. Platform Height (A) | 4.87m |
| Overall Width (B) | 0.76m |
| Overall Length (D) | 1.37m |
| Stowed Height (C) | 1.98m |
| Platform Size (Stowed) | 0.68m x 0.99m |
| Platform Size (Extended) | 0.68m x 1.50m |
| Deck Extension | 0.51m |
| Ground Clearance | 76mm |
| Platform Capacity SWL | 227kg |
| Max. Drive HeightMax. Drive HeightMax. Drive Height | 4.87m |
| Max. Wind Speed | 0m/s |
| Gradeability | 25% |
| Max. Operating Slope (side to side) | 1.5º |
| Max. Operating Slope (front to back) | 1.5º |
| Inside Turning Radius | 0m |
| Outside Turning Radius | 1.40m |
| Weight | 1,105kg |

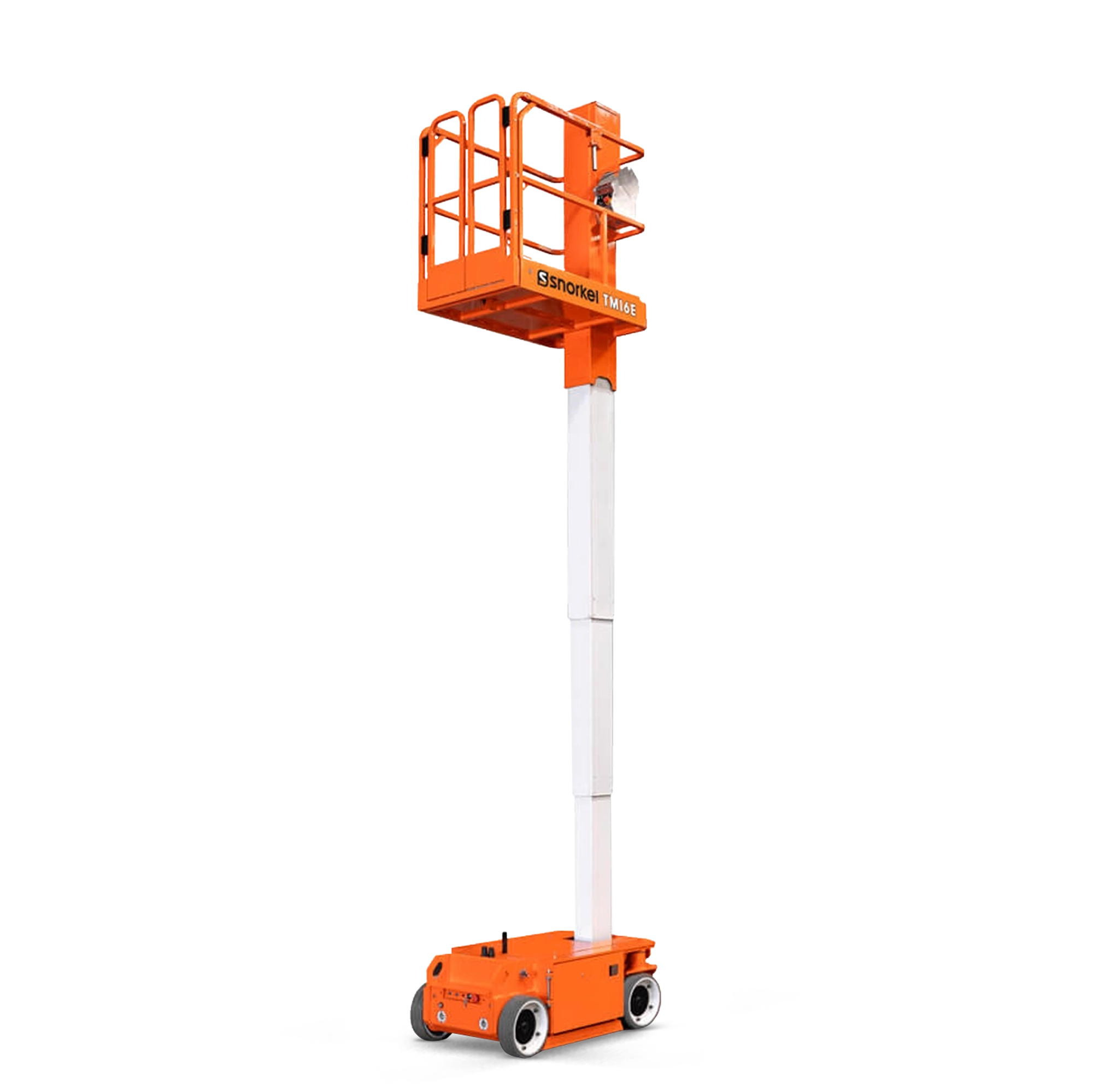

The Snorkel TM16E comes equipped with many of the same great features that are present on the TM12E but with an increased working height of 6.87m. It features an electric drive system offering longer duty cycles on site. Its compact dimensions, 0m inside turning radius and smooth proportional controls allow for precise positioning in environments where space is limited.
0.51m roll-out deck extension.
Non-marking rubber tyres and electric power source, suited for indoor applications.
Saloon-door style entry gates for easy entering and exiting of the machine.
Max. working height of 6.87m making it ideal for internal fit-outs, CCTV and Alarm installations and other low level tasks.
Compact dimensions of just 0.68m (W) x 0.99m (L) x 1.98m (H) enabling it to be operated in between warehouse racking and other tight spaces.
0m/1.40m Inside/Outside turning radius allowing for excellent manoeuvrability.
