JLG Eco Lift

Specifications

Working Height

4.20m

Platform Height

2.20m

Basket Dimensions

850mm (L) x 644mm (W)

Working Footprint

1.28m x 700mm

Safe Working Load

150kg

Maximum Manual Force

200 Newtons

Maximum Wind Force

0m/s

Height Stowed

1.94m

Weight

305kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

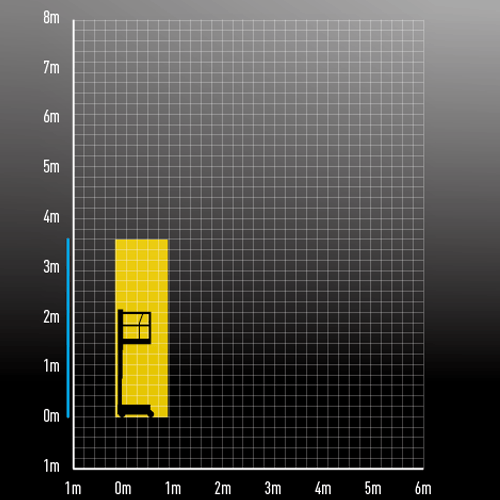

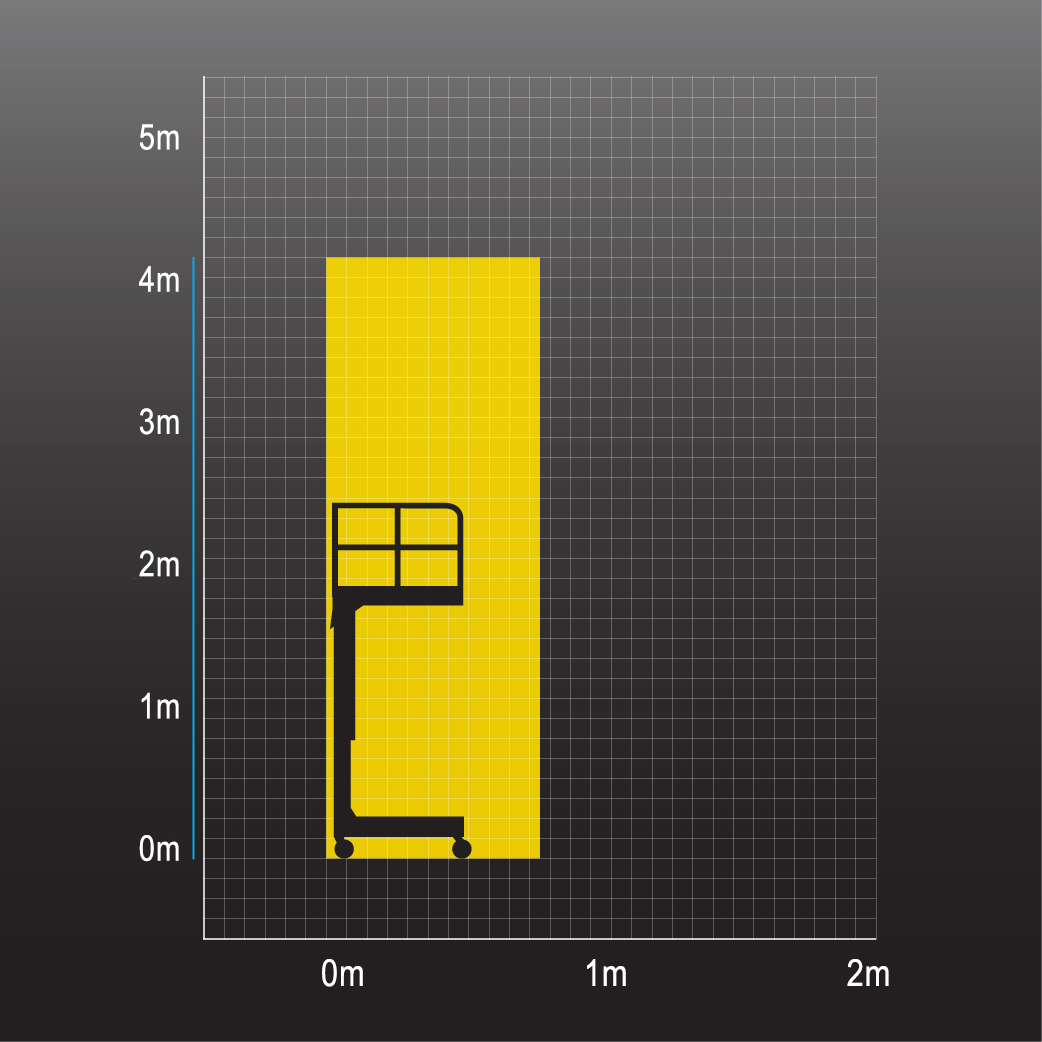

Working envelope

Working envelope

Dimension drawing

Dimension drawing

MACHINE INFORMATION

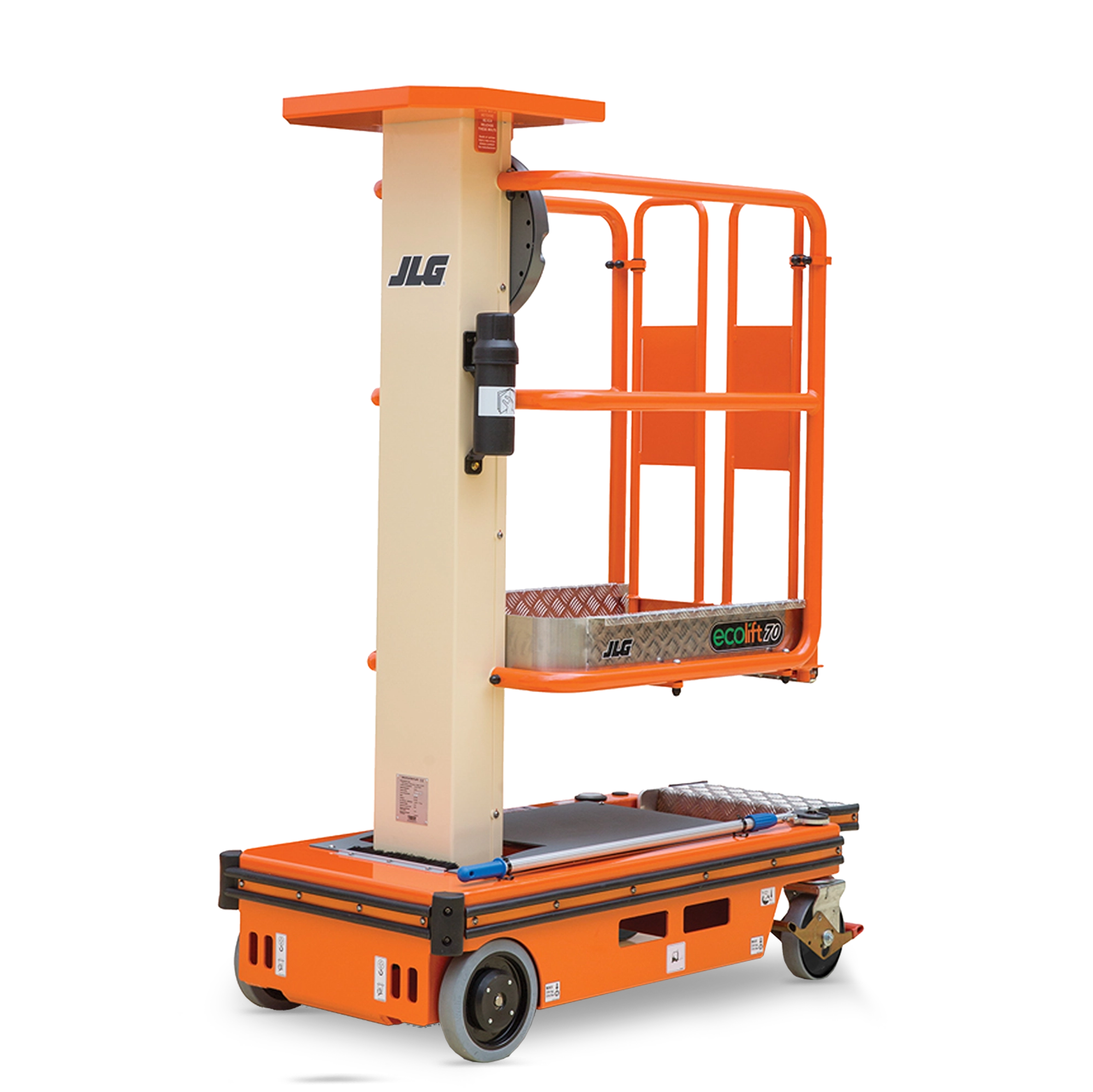

​The JLG Eco Lift is a non-powered, push-around vertical lift designed for indoor, low-level access tasks. It offers a working height of 4.20 meters and a platform capacity of 150 kg, suitable for a single operator and tools. The platform dimensions are 0.85 meters in length and 0.64 meters in width, providing ample space for various maintenance and installation activities. With a compact footprint of 1.28 by 0.70 meters and a stowed height of 1.94 meters, the Eco Lift can easily pass through standard doorways and fit into elevators. Weighing 305 kg, it is lightweight and easy to maneuver in confined spaces. The lift operates without batteries or hydraulic systems; instead, it utilizes a patented lift mechanism activated by simply turning a handle, allowing for unlimited lift cycles and minimal maintenance. This eco-friendly design eliminates the need for charging, reduces operational costs, and ensures a smaller carbon footprint.

STANDARD FEATURES

Easy, fast and efficient to use, it's intuitive. Just step in and turn the handle. No power needed, no batteries to charge and no mains power consumption.

Stop wherever you want up to 4.20m working height

You're always safe, fully guarded from the ground up.

Eco-Friendly

No batteries means no power consumption for charging, no battery acid spills, no hydrogen gases. No hydraulic oil means no spills. In fact its carbon footprint is even smaller than its working footprint!

Intuitive

The Eco Lift is very easy to operate - turn the handle to elevate thanks to the unique lift mechanism no power is required

Eco-Friendly

Small footprint of just 1280mm x 700mm
