| Working Height | 17.95m |
| A. Platform Height | 15.95m |
| B. Platform Height Stowed | 2.02m |
| C. Platform Length Outside | 3.98m |
| Platform Length Dual Deck Extended | 6.57m |
| E. Slide-Out Platform Extension Deck - (Front (E) /Rear (F)) | 1.52m/1.22m |
| G. Platform Width - Outside | 1.83m |
| H. Height Stowed (Folding Guardrails) | 3.15m |
| Rails Lowered | 2.47m |
| I. Length Stowed (With Outriggers) | 4.88m |
| J. Width | 2.29m |
| K. Wheelbase | 2.84m |
| L. Ground Clearance | 0.36m |
| Max No. of Persons | 4 |
| Lift Capacity | 680kg |
| Lift Capacity (Extension Deck) | 227kg |
| Max Drive Height | 9.14m |
| Gradeability | 40% |
| Turning Radius (Inside) | 2.16m |
| Turning Radius (Outside) | 5.33m |
| Weight | 7,995kg* |

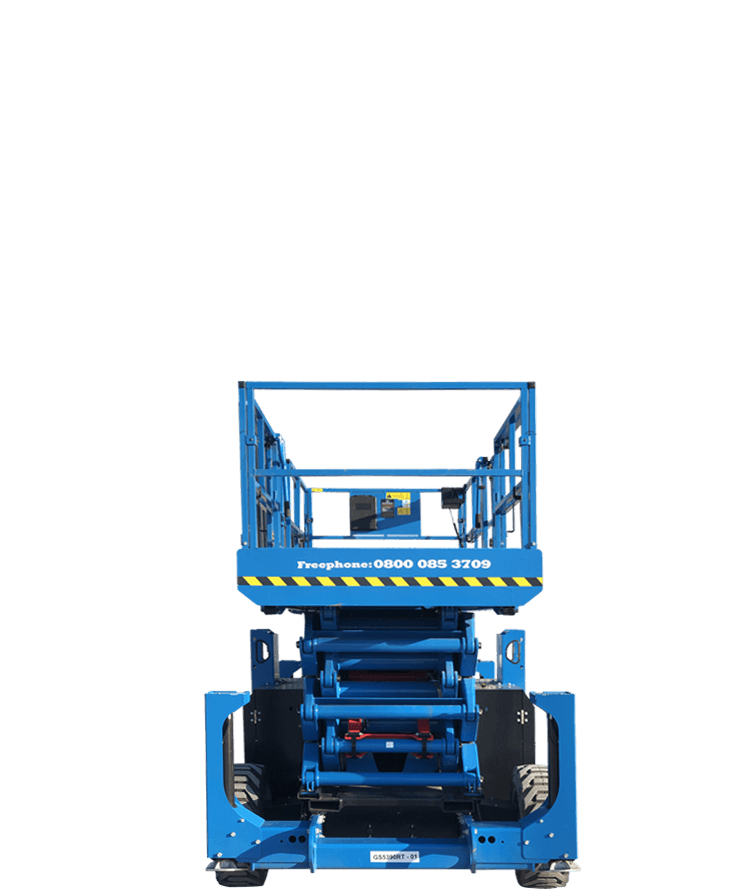

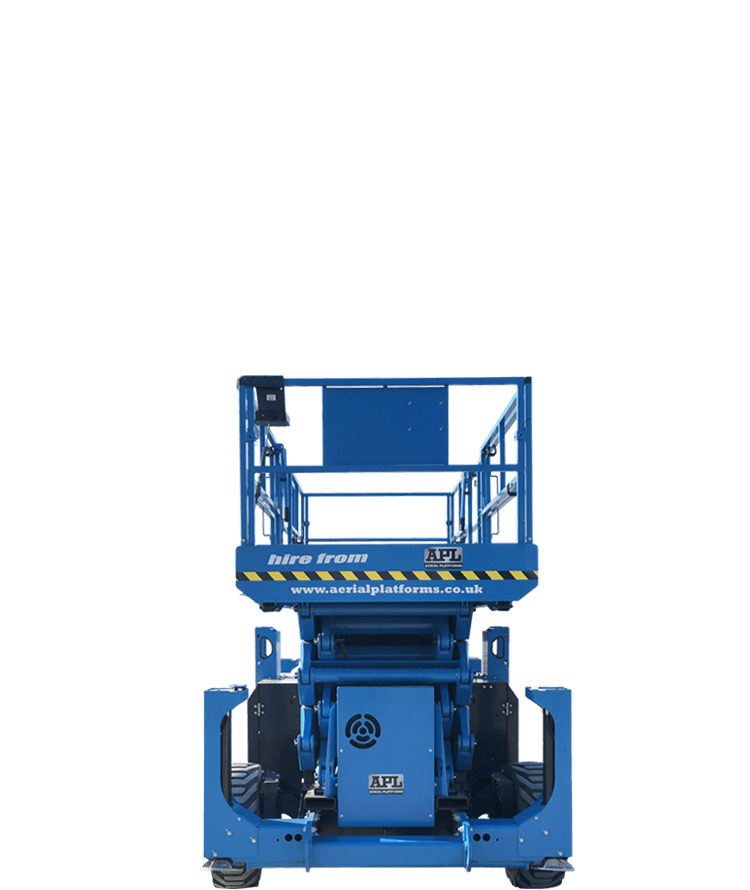

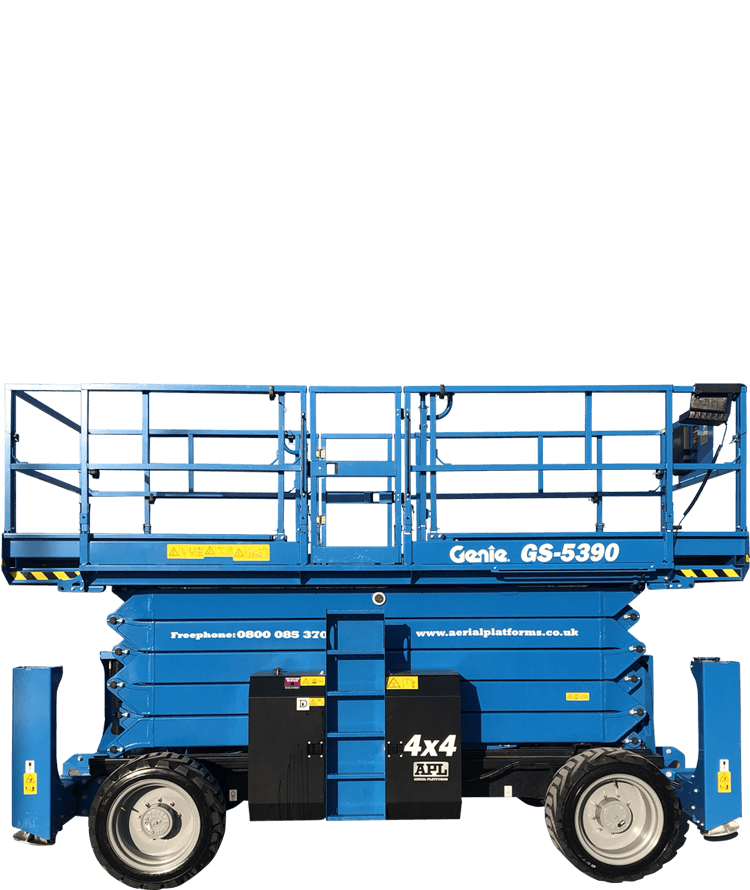

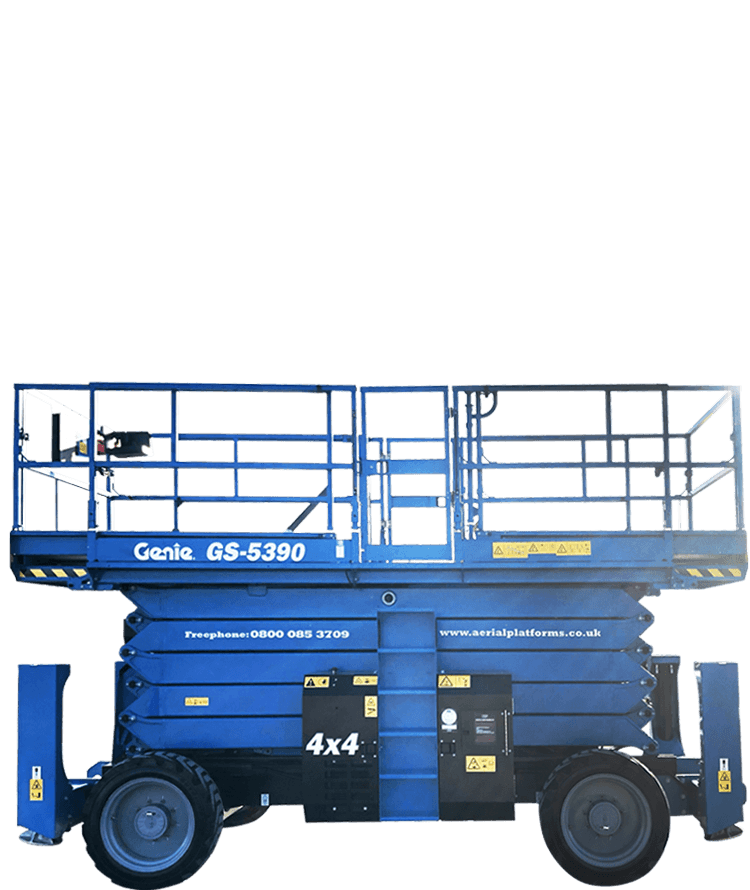

A tough, construction-oriented four-wheel drive machine with positive traction control, the Genie® GS™-5390 RT rough terrain scissor lift is ideal for increasing productivity in demanding outdoor worksites.
Up to 50% gradeability with foam-filled, rough-terrain tires
Proportional lift and drive
Diamond plate deck, two self-closing full-height swing gates, AC power to platform, four-wheel braking, dual flashing LED beacons and more!
Emission compliant engine, 12V DC auxiliary power, slide-out engine tray
Dual slide-out platform extension deck offering 1.52m in the front and 1.22m in the rear
