| Working Height | 11.75m |
| A. Platform Height | 9.75m |
| B. Platform Height Stowed | 1.29m |
| C. Platform Length (Outside) | 2.26m |
| Platform Length (Extended) | 3.18m |
| Deck Extension | 0.91m |
| D. Platform Width (Outside) | 0.81m |
| Guardrail Height | 1.10m |
| Toeboard Height | 0.15m |
| E. Height Stowed (Rails Unfolded) | 2.39m |
| Height Stowed (Rails Folded) | 2.03m |
| Length Stowed | 2.44m |
| F. Length (Extended) | 3.33m |
| G Width | 0.81m |
| H. Wheelbase | 1.85m |
| I. Ground Clearance (Centre) | 0.09m |
| J. Ground Clearance (With Pothole Guards Deployed) | 0.02m |
| Lift Capacity | 227kg |
| Drive Height | 6.71m |
| Gradeability | 25% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.13m |
| Weight | 2,352kg |
Folding rails with half-height swing gate come standard
Automatic levelling hydraulic outrigger system levels machine on slopes up to 5˚
Large platform workspace with 0.91 m roll-out platform extension

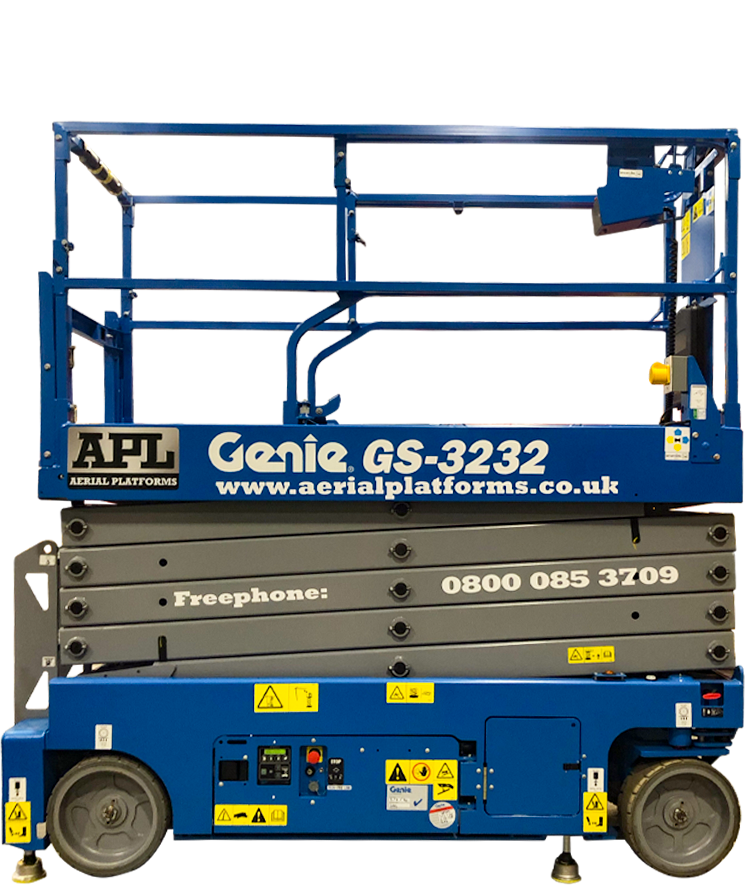

The quiet, zero-emission Genie® GS™-3232 slab scissor lift is ideal for operation in sound-sensitive environments
Enhanced productivity by providing exceptional positive traction, speed, and gradeability
User-friendly Smart Link Proportional Control System
