| Working Height | 43.15m |
| Platform Height | 41.15m |

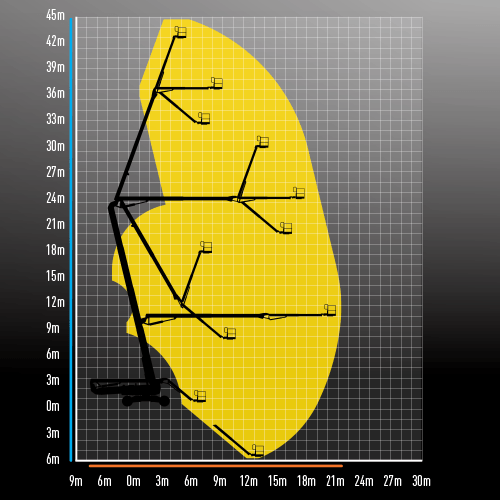

| Horizontal Reach (Riser Extended) | 18.03m |
| Horizontal Reach (Riser Retracted) | 21.26m |
| Up and Over Reach (Riser Extended) | 23.01m |
| Up and Over Reach (Riser Retracted) | 9.91m |
| Below Ground Reach | 5.87m |
| A. Platform Length | 0.91m |
| B. Platform Width | 2.44m |
| C. Height Stowed | 3.07m |
| D. Length Stowed | 12.93m |
| E. Width (Axles Extended) | 3.94m |
| Width (Axles Retracted) | 2.46m |
| F. Wheelbase (Axles Extended) | 4.11m |
| Wheelbase (Axles Retracted) | 4.72m |
| G. Ground Clearance (Centre) | 0.51m |
| Lift Capacity | 272kg |
| Platform Rotation | 160° |
| Vertical Jib Rotation | 110° |
| Turntable Rotation (Continuous) | 360° |
| Gradeability | 45% |
| Inside Turning Radius (Axles Extended) | 2.29m |
| Inside Turning Radius (Axles Retracted) | 5.51m |
| Outside Turning Radius (Axles Extended) | 5.64m |
| Outside Turning Radius (Axles Retracted) | 7.77m |
| Weight | 20,366kg |
Ideal for outdoor construction and industrial applications, the Genie® Z-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib.
Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
141 ft | 43.15 m
600 lb | 272 kg
21,092kg *
