Electric Mast Boom Lift
| Working Height | 9.90m |
| Platform Height | 7.90m |
| Outreach | 3.15m |
| Lift Capacity | 200kg |
| Basket Size | 0.90m x 0.75m |
| 1. Overall Length | 2.82m |
| 2. Overall Width | 0.99m |
| 3. Overall Height | 1.99m |
| 4. Ground Clearance | 10cm |
| 5. Turning Radius (Inside) | 0.49m |
| 6. Turning Radius (Outside) | 1.98m |
| Turret Rotation | 350° |
| Jib Tilting | 140° |
| Gradeability | 25% |
| Weight | 2,650kg |

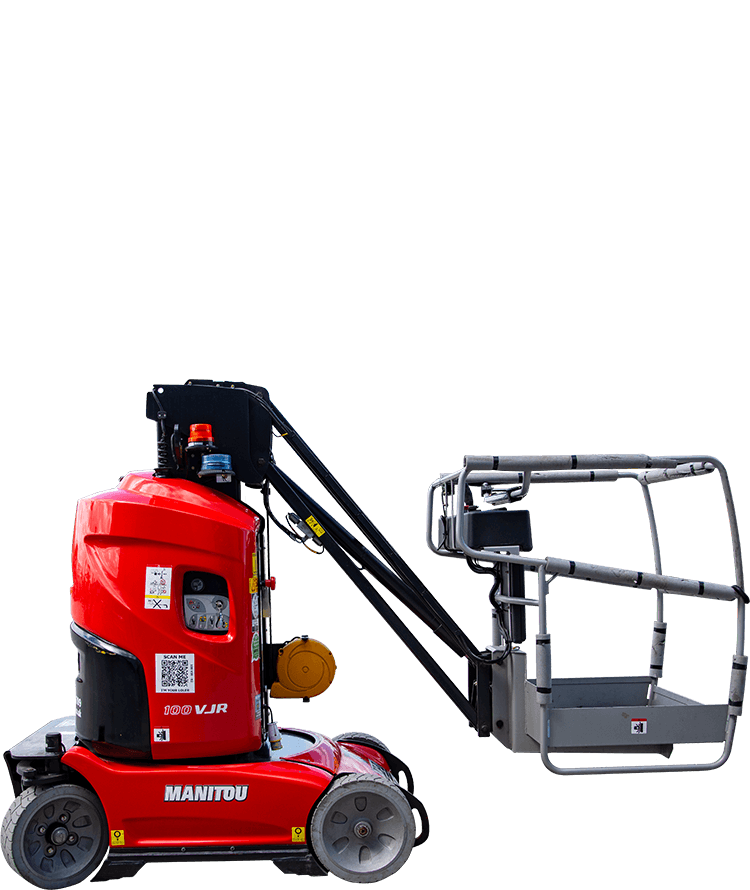

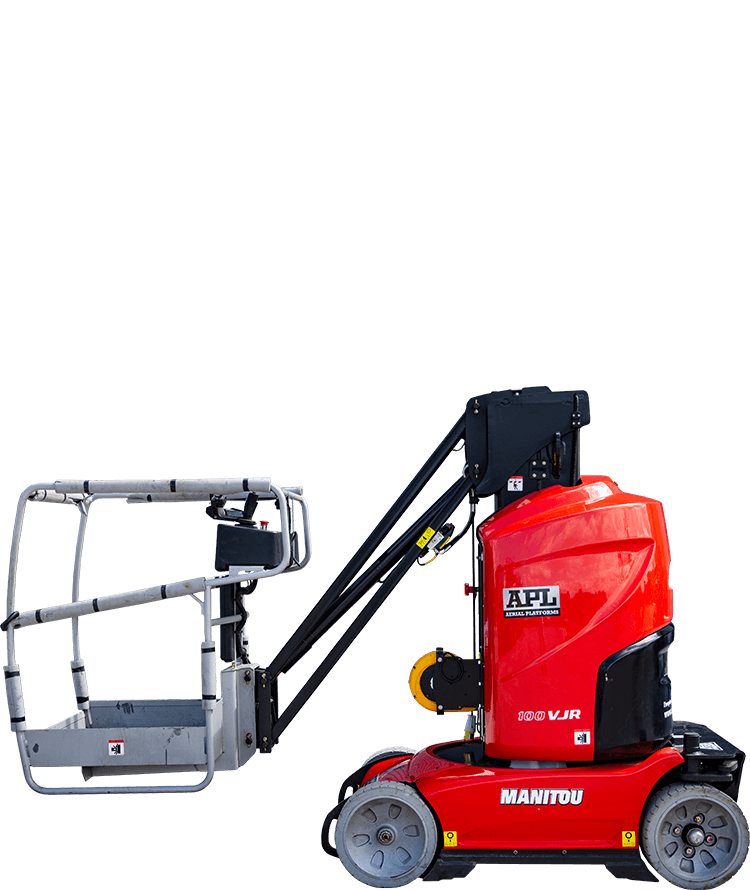

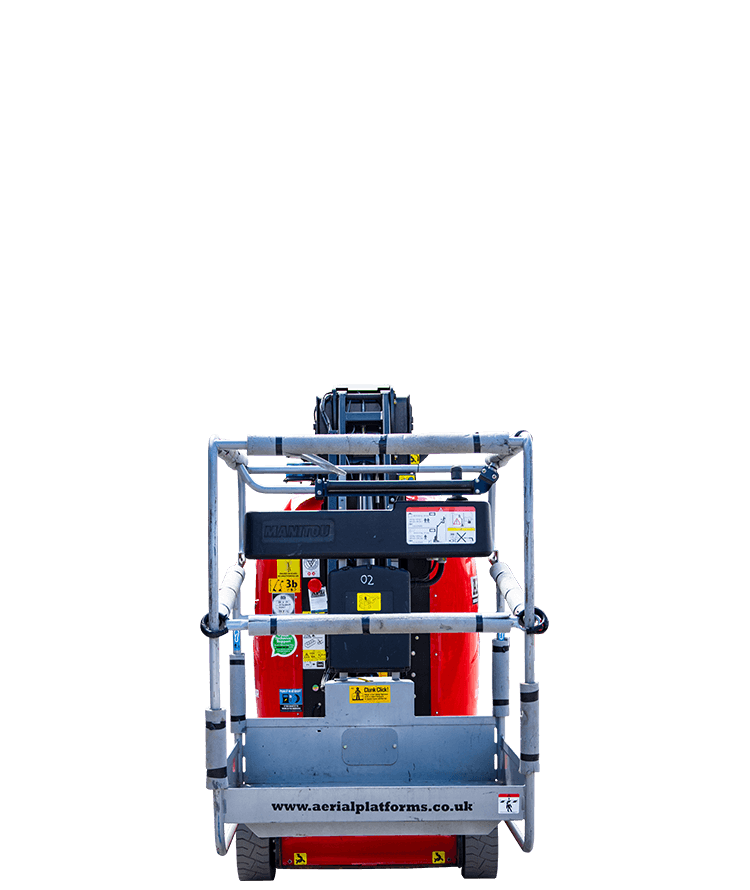

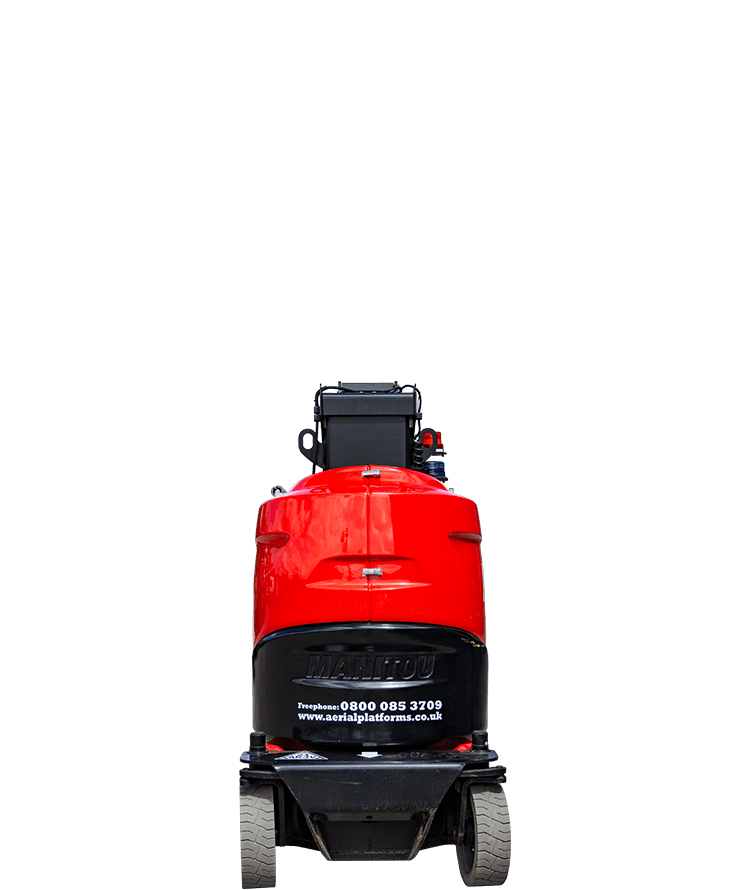

The Manitou 100 VJR is a compact electric mast boom lift designed for precise maneuverability in confined spaces. It offers a maximum working height of 9.90 meters and a horizontal outreach of 3.15 meters, supporting a platform capacity of 200 kilograms. The platform measures 0.90 by 0.75 meters and features a 140-degree jib tilting range, while the turret provides 350-degree rotation, enhancing versatility. With compact dimensions—2.82 meters in length, 0.99 meters in width, and 1.99 meters in height—the 100 VJR is highly maneuverable, boasting an inside turning radius of 0.49 meters and zero tailswing, making it suitable for navigating tight, hard-to-reach areas with ease. It is equipped with non-marking tires and features such as a horn, hour meter, battery charge indicator, and emergency manual descent for enhanced safety and ease of maintenance.
It is an excellent choice for your maintenance operations inside or outside on stable ground. Passing through doors and access to narrow spaces will be facilitated by its compact dimensions.
The pendular arm which enables rotation of more or less 70° and the turret which can rotate around 355° make it one of the stars of the market.
Operators appreciate its comfort, flexibility and its horizontal outreach of more than 3 meters. Its mast technology with telescopic tubes guarantees a low-level of maintenance.
Whether in lifting capacity or height, engine power, longer battery autonomy or drawbar full, the 100VR shows it is the fruit of the labours of various development departments.
The 100VJR is designed bearing simplicity and particularly ease of use in mind. Whether you are just the buyer or buyer and user, you know exactly how important being able to quickly come to grips with a new machine, as on-site productivity waits for no man. With this machine you'll be on board and off in no time, even if you are a novice operator.
Compactness is a vital concept for some of the sectors we provide solutions for. If you have to deal with narrow aisles, areas with tight dimensions or low door thresholds, then the sizes of our machines will prove essential to you.
