Manitou MAN'GO 12 Articulated Diesel Boom Lift Hire - APL
Manitou MAN’GO 12
Manitou MAN’GO 12
Manitou MAN’GO 12
Manitou MAN’GO 12
Manitou MAN’GO 12
Manitou MAN’GO 12
Right Arrow
Left Arrow

Manitou MAN’GO 12

Specifications

Max. Working Height

11.91m

Max. Platform Height

9.91m

Horizontal Outreach

6.69m

Overhang

4.80m

Pendular Arm Rotation (Bottom)

+70°

Platform Capacity

230kg

Turret Rotation

350°

Platform Rotation (right/left)

70°/66°

Max. Number of Occupants (Indoor/Outdoor)

2/2

Platform Dimensions (Length x Width)

1.50m x 0.98m

Overall Length

5.50m

Overall Width

1.80m

Overall Height

2.02m

Jib Length

1.46m

Counterweight Offset (Turret at 90°)

0.19m

Outside Turning Radius

4.11m

Wheelbase

2.00m

Gradeability

40%

Drive Speed (Stowed)

5.20km/h

Weight

4,150kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

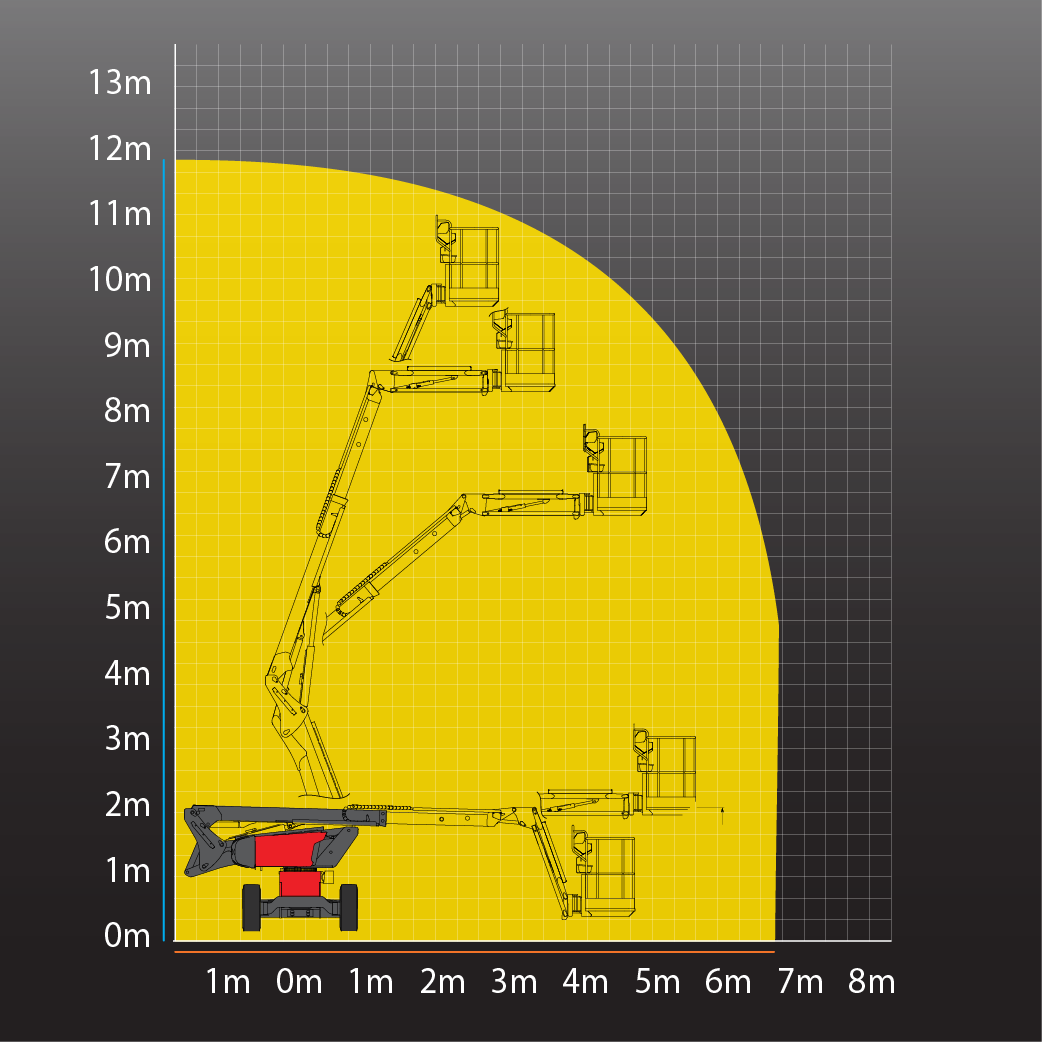

Working envelope

Working envelope

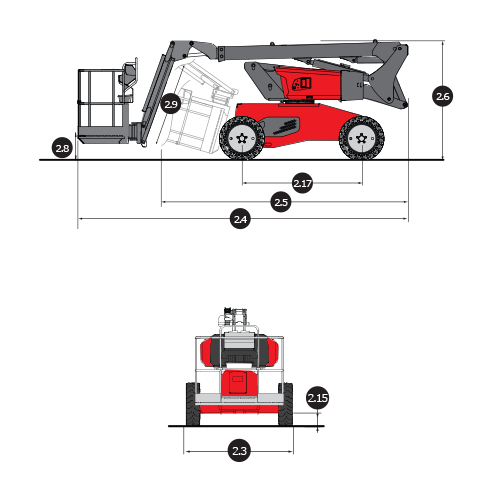

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The ManGo 12 articulated diesel boom lift boasts a compact design, great offroad maneuverability and various other innovative features such as a galvanized basket floor, 350° turret rotation and quick lift arms ... It is capable of working in tight, hard to reach areas with ease thanks to the exceptional compactness of the ManGo 12. The lift offers a maximum working height of 11.91 meters and a horizontal outreach of 6.69 meters, supporting a platform capacity of 230 kilograms. Weighing just 4,150 kilograms, it is suitable for operation on sensitive flooring. The ManGo 12 enhances efficiency by allowing simultaneous operation of three joystick movements and ensures operator safety with a secondary guarding device fitted to the controls.

STANDARD FEATURES

Increased efficiency thanks to the ability to operate 3 separate joystick movements simultaneously.

Secondary Guarding device fitted to controls for added operator safety.

Great maneuverability on uneven ground thanks to its large rough terrain tyres and 40% gradeability.

Low Overall Weight

Weighing just 4,150kg it can be operated on sensitive flooring

Compact Dimensions

5.50m (L) x 1.80m (W) x 2.02m (H) and a 4.11m outside turning radius enables it to maneuver through tight spaces

Low Overall Weight

11.91m max. working height and 6.69m max. horizontal outreach
