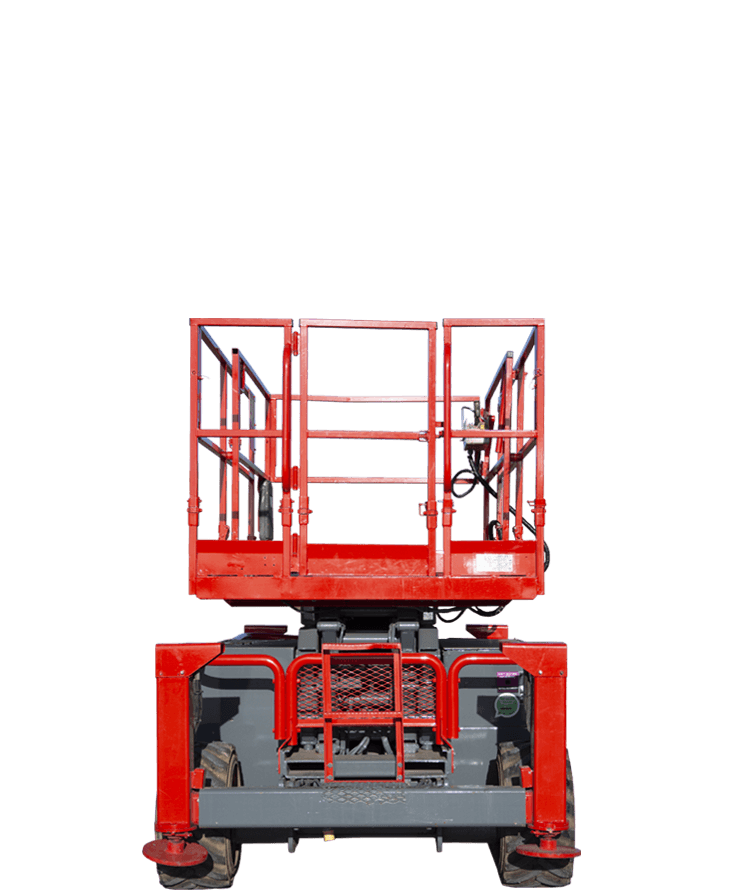

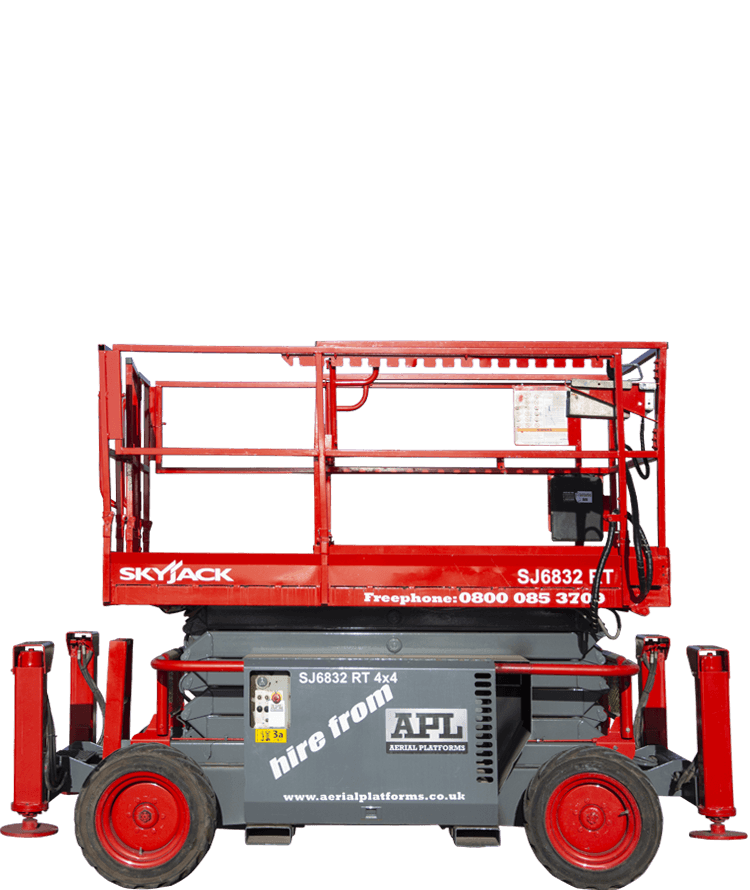

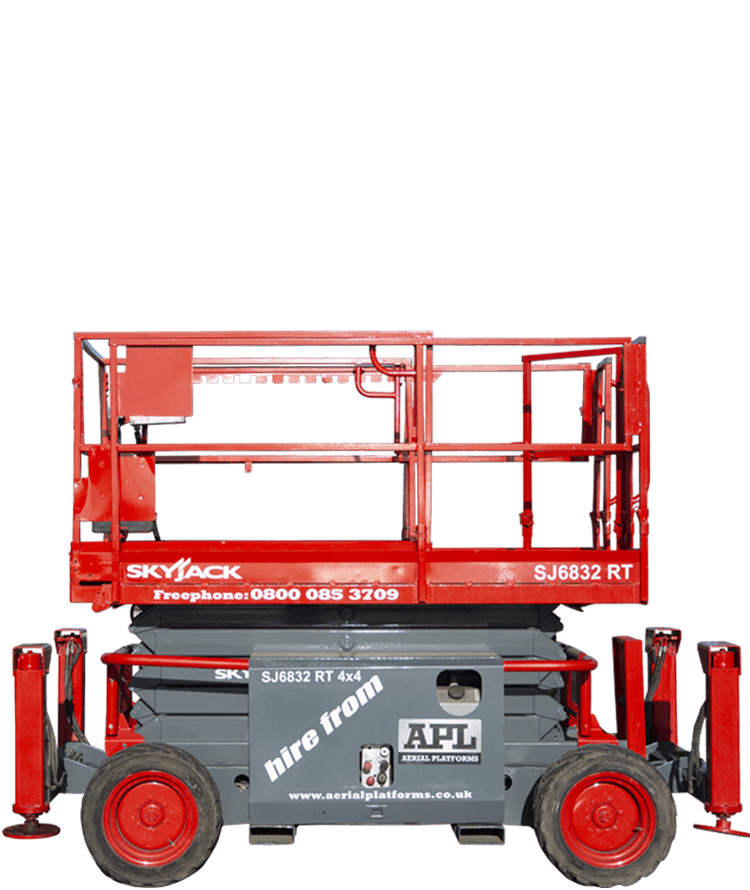

Skyjack SJ6832RT Diesel Scissor Lift

Platform Specifications

A. Working Height 11.58m
B. Raised Platform Height 9.75m
C. Lowered Platform Height 1.37m
D. Overall Width 1.76m
E. Overall Length 3.35m
F. Height Stowed (Rails Up) 2.51m
G. Height Stowed (Rails Down) 1.75m
H. Platform Width (Inside Dimension) 1.42m
I. Platform Length (Inside Dimension) 2.44m
Deck Extension 1.52m
Ground Clearance 0.20m
Wheelbase 2.04m
Gradeability 40%
Inside Turning Radius 1.52m
Outside Turning Radius 3.96m
Maximum Drive Height Full Height
Lift Capacity 454kg
Maximum No. of Persons 4
Weight 3,475kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

STANDARD FEATURES

Drivable at full height with 1.52M roll out deck fully extended

Up to 40% gradeability

Independent/auto levelling outriggers

Working Height

Max working height of 11.58m suitable for a number of external applications

Lift Capacity

Increased productivity thanks to a 454KG platform capacity allowing for multiple men and their tools to be lifted

Tyres

Foam-filled rough-terrain tyres as standard allowing for increased manoeuvrability on uneven surfaces.

WORKING ENVELOPE

DIMENSIONS

HIRE Skyjack SJ6832RT Diesel Scissor Lift
