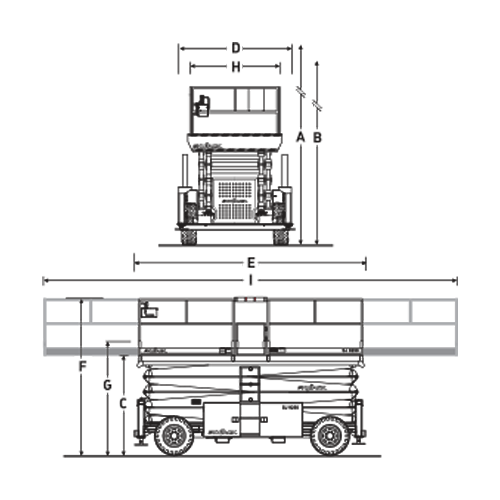

| A. Working Height | 17.20m |
| B. Platform Height | 15.20m |
| C. Lowered Platform Height | 2.00m |
| D. Overall Width | 2.30m |
| E. Overall Length | 4.50m |
| F. Stowed Height (Rails Up) | 3.20m |
| G. Stowed Height (Rails Down) | 2.30m |
| H. Platform Width (Inside Dimension) | 1.90m |
| I. Platform Length Extended (Inside Dimension) | 7.20m |
| Platform Length Stowed (Inside Dimension) | 4.30m |
| Ground Clearance | 0.20m |
| Wheelbase | 3.00m |
| Gradeability | 30% |
| Turning Radius (Inside) | 4.40m |
| Turning Radius (Outside) | 7.20m |
| Maximum Drive Height | Full Height |
| Lift Capacity | 681kg |
| Maximum No. of Persons | 5 |
| Weight | 7,407kg |
Large 7.2m total working platform length
Independent/auto-levelling outriggers
Dual 1.5m powered extension decks for increased mobility whilst elevated.
Benefit from a 681kg lift capacity allowing a maximum of 5 people to work simultaneously on the platform
7.2m (L) x 1.9m (W) platform dimensions with both 1.5m deck extensions are extended
Robust axle based 4WD system with "no spin" and limited slip differentials delivering excellent job site terrainability
