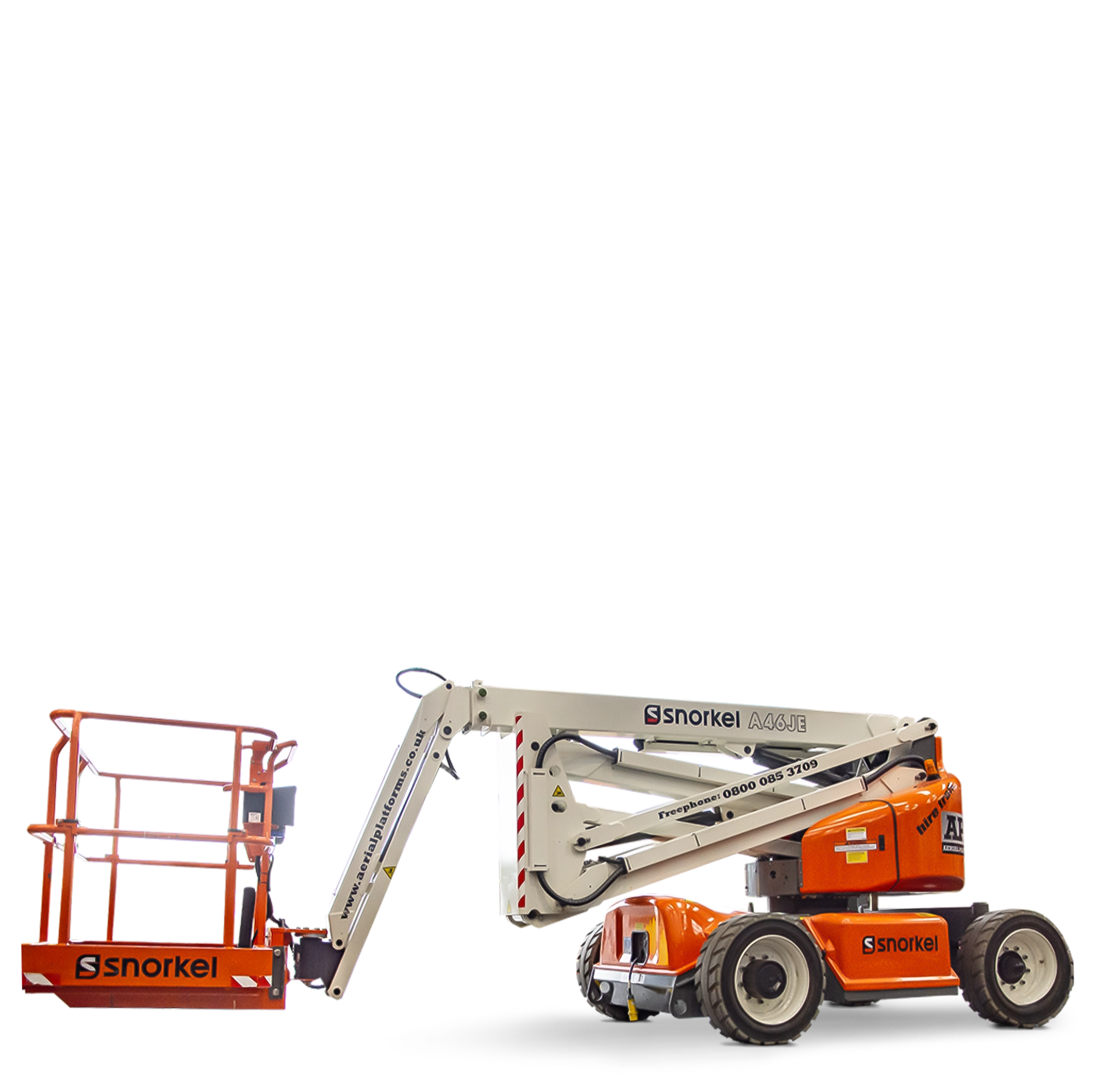

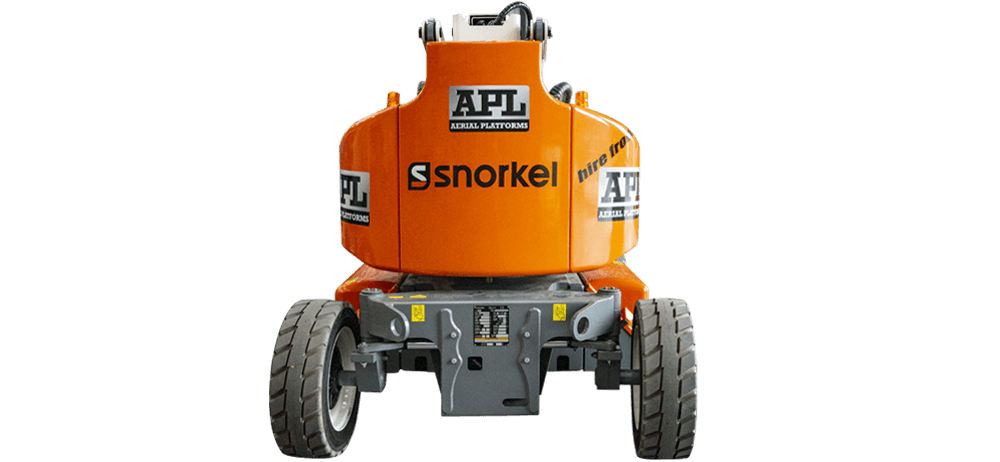

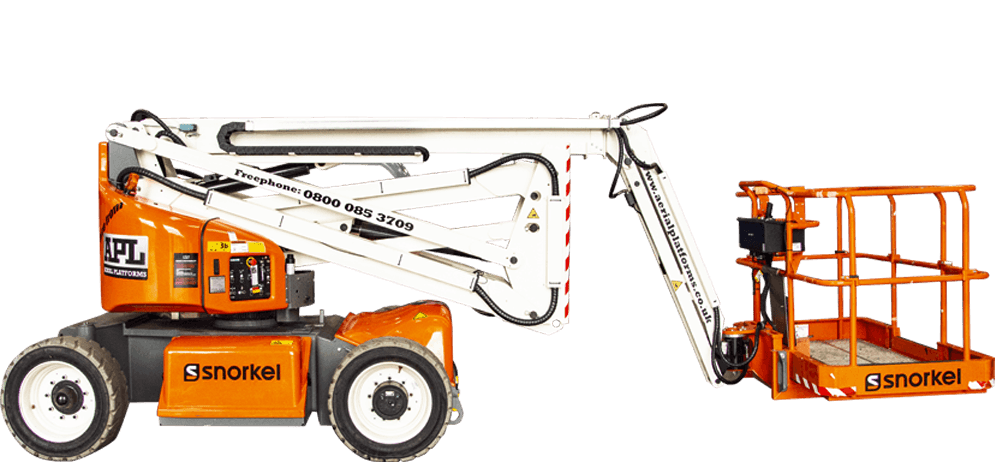

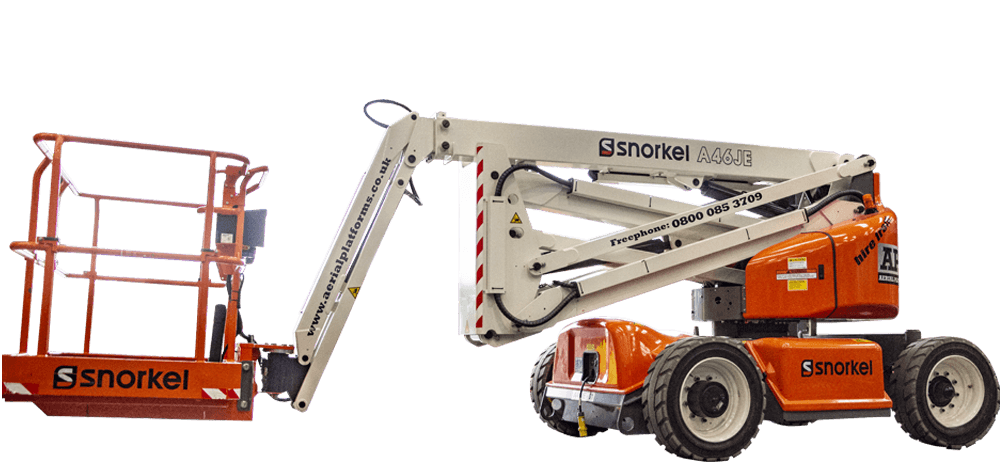

Snorkel A46JE Electric Boom Lift

Platform Specifications

Working Height 16.00m
Platform Height 14.00m
Max Working Outreach 7.35m

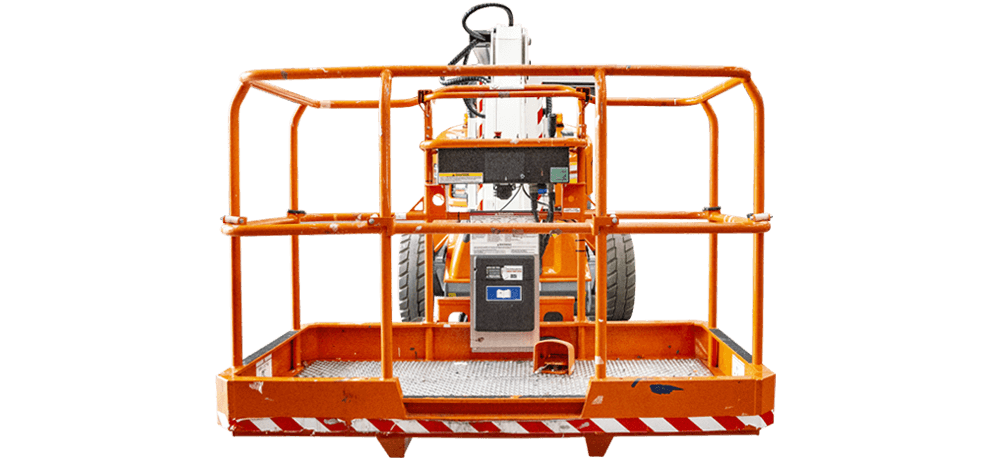

Platform Size 1.00m x 1.83m
Chassis Width (A) 1.70m
Overall Length (B) 5.60m
Height Stowed (C) 2.00m
Ground Clearance 152mm
Lift Capacity 227kg
Max Drive Height 14.00m
Max Wind Speed 12.5m/s
Jib Length 1.50m
Jib Arc 140°
Platform Rotation 160°
Turret Rotation (Non-Continuous) 360°
Tailswing 0m
Gradeability 30%
Inside Turning Radius 0.60m
Outside Turning Radius 3.00m
Weight 6,486kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

STANDARD FEATURES

The Snorkel A46JE is a class-leading electric articulated boom lift which can lift 227kg to a working height of 16.1m.

This high performance boom delivers a superb working envelope, with the added flexibility of a jib boom.

Compact dimensions, tight turning radius and zero tailswing makes this the ideal boom lift for working in tight spaces.

Snorkel Guard™

Featuring Snorkel's secondary guarding system Snorkel Guard™ featuring a spring-loaded rail mounted above the platform controls, which cuts-out machine operations when pressure is applied. If the operator is able, they can restore power using the override switch in the platform. Alternatively, the ground controls can be used to lower the platform

Compact

Zero tailswing allowing for easy manoeuvring in tight spaces

Non-Marking Tyres

Non-Marking Tyres meaning this machine can be used for projects with sensitive flooring such as tiled showrooms.

WORKING ENVELOPE

DIMENSIONS
