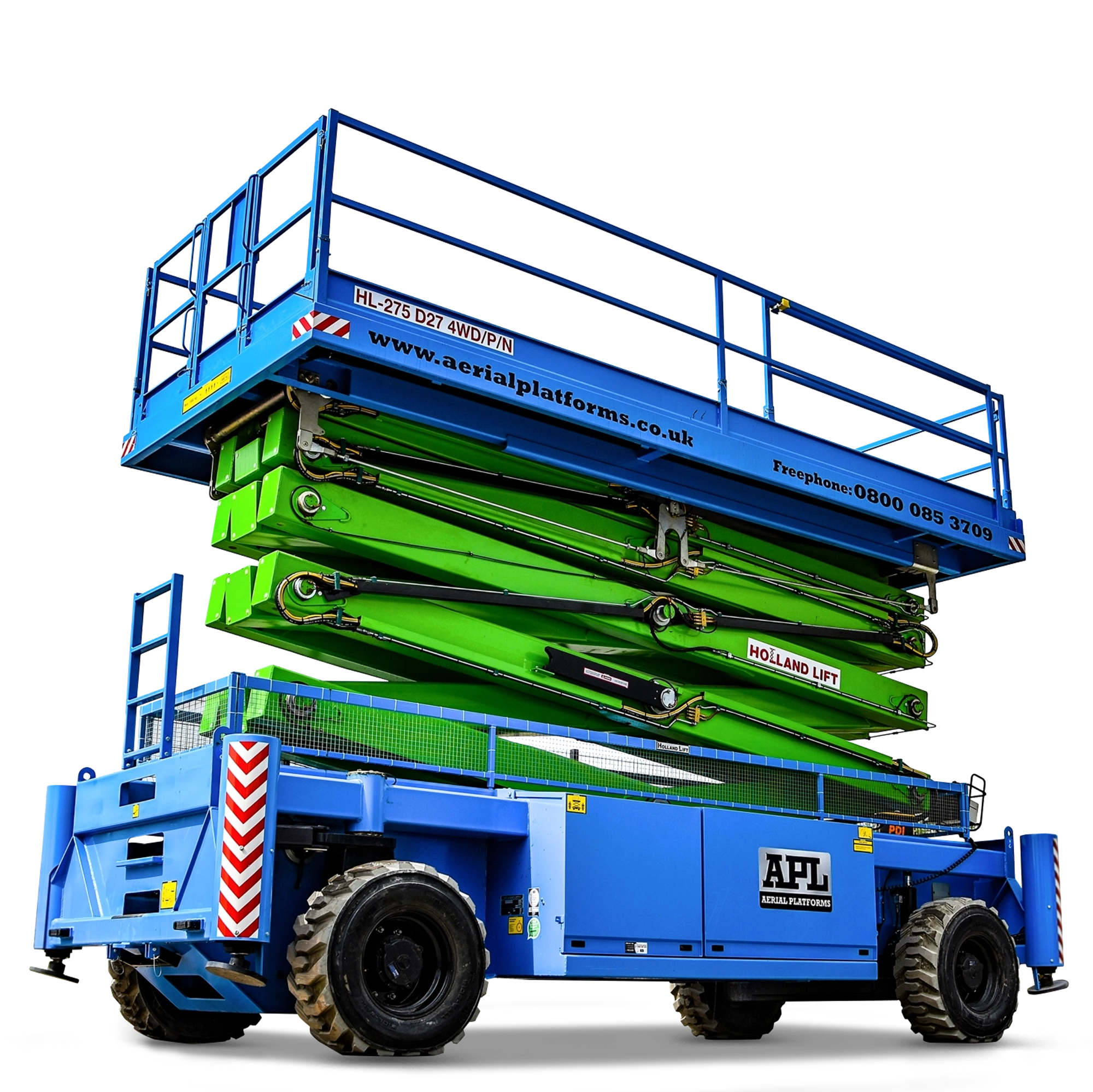

Diesel Scissor Lift

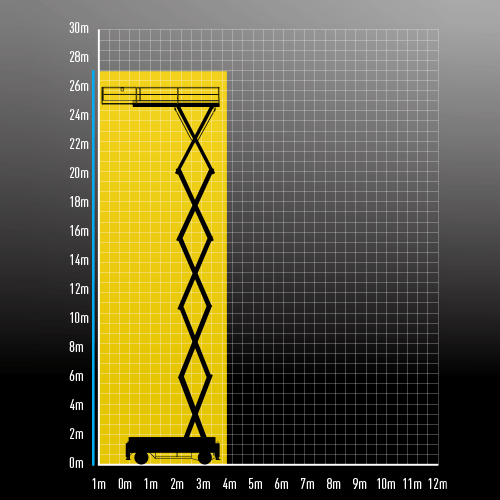

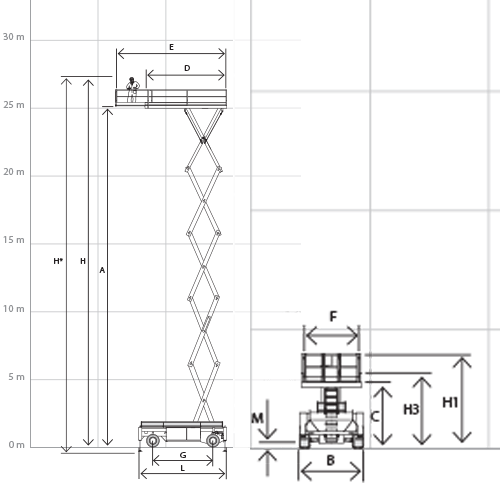

H. Working Height | 27.50m |
A. Platform Height | 25.20m |
C. Platform Height Lowered | 2.75m |
DxF. Platform Length x Width (Retracted) | 6.15m x 2.50m |
ExF. Platform Length x Width (Extended) | 8.25m x 2.50m |
H1. Height Stowed | 3.89m |
H3. Height Stowed (Rails Folded) | 3.13m |
LxB. Machine Length x Base | 6.57m x 2.65m |
G. Wheelbase | 4.50m |
M. Ground Clearance (Stowed) | 195mm |
Lift Capacity | 1000kg |
Gradeability | 30% |
Weight | 21,910kg |
Controlbox with quick disconnect for easy operation from ground
Driveable at full height of 25.20m
6.15m x 2.50m platform dimensions with an additional 2.10m deck extension
Benefit from 30% gradeability allowing the machine to be used in a number of different scenarios
Offering a 1000kg lift capacity, the HL-275 is suitable for multiple men and their tools
Four wheel drive with oscillating axle and self-levelling jacks
