Diesel Scissor Lift

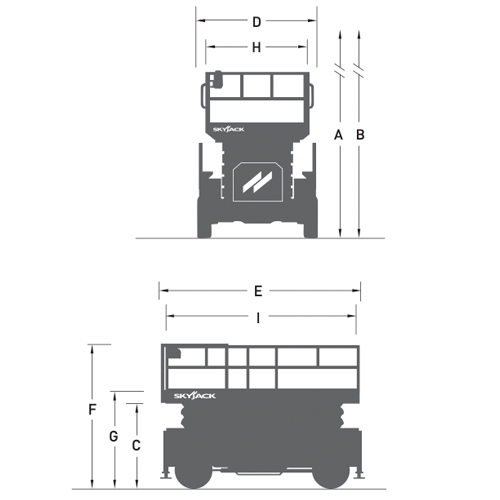

| A. Working Height | 17.98m |
| B. Platform Height | 16.15m |
| C. Lowered Platform Height | 2.12m |
| D. Overall Width | 2.30m |
| E. Overall Length | 4.50m |
| F. Stowed Height (Rails Up) | 3.20m |
| G. Stowed Height (Rails Down) | 2.43m |
| H. Platform Width (Inside Dimension) | 1.82m |
| I. Platform Length Extended (Inside Dimension) | 7.40m |
| Platform Length Stowed (Inside Dimension) | 4.36m |
| Ground Clearance | 0.26m |
| Wheelbase | 3.02m |
| Gradeability | 35% |
| Turning Radius (Inside) | 3.33m |
| Maximum Drive Height | Full Height |
| Lift Capacity | 680kg |
| Maximum No. of Persons | 5 |
| Weight | 8,301kg |

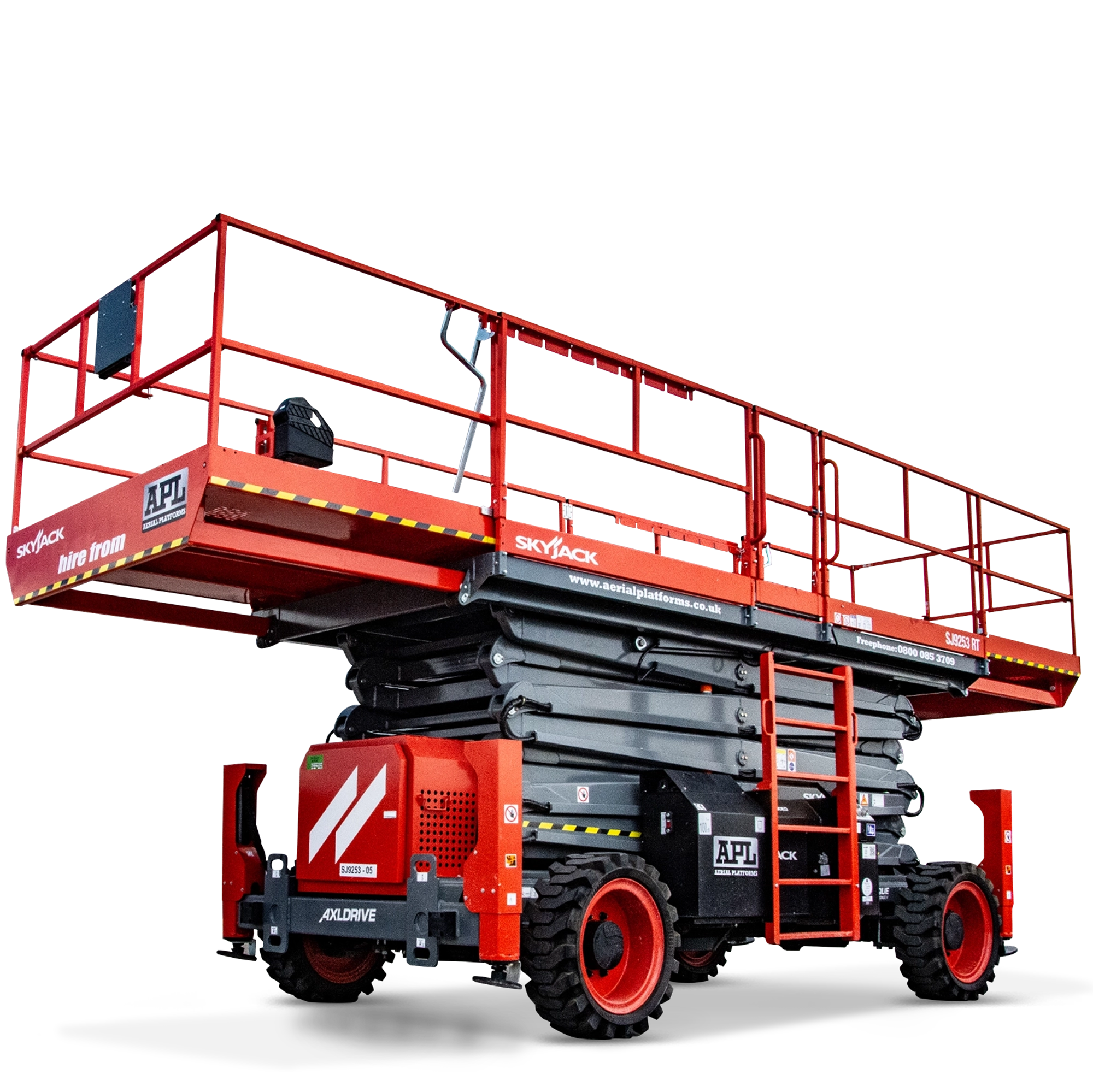

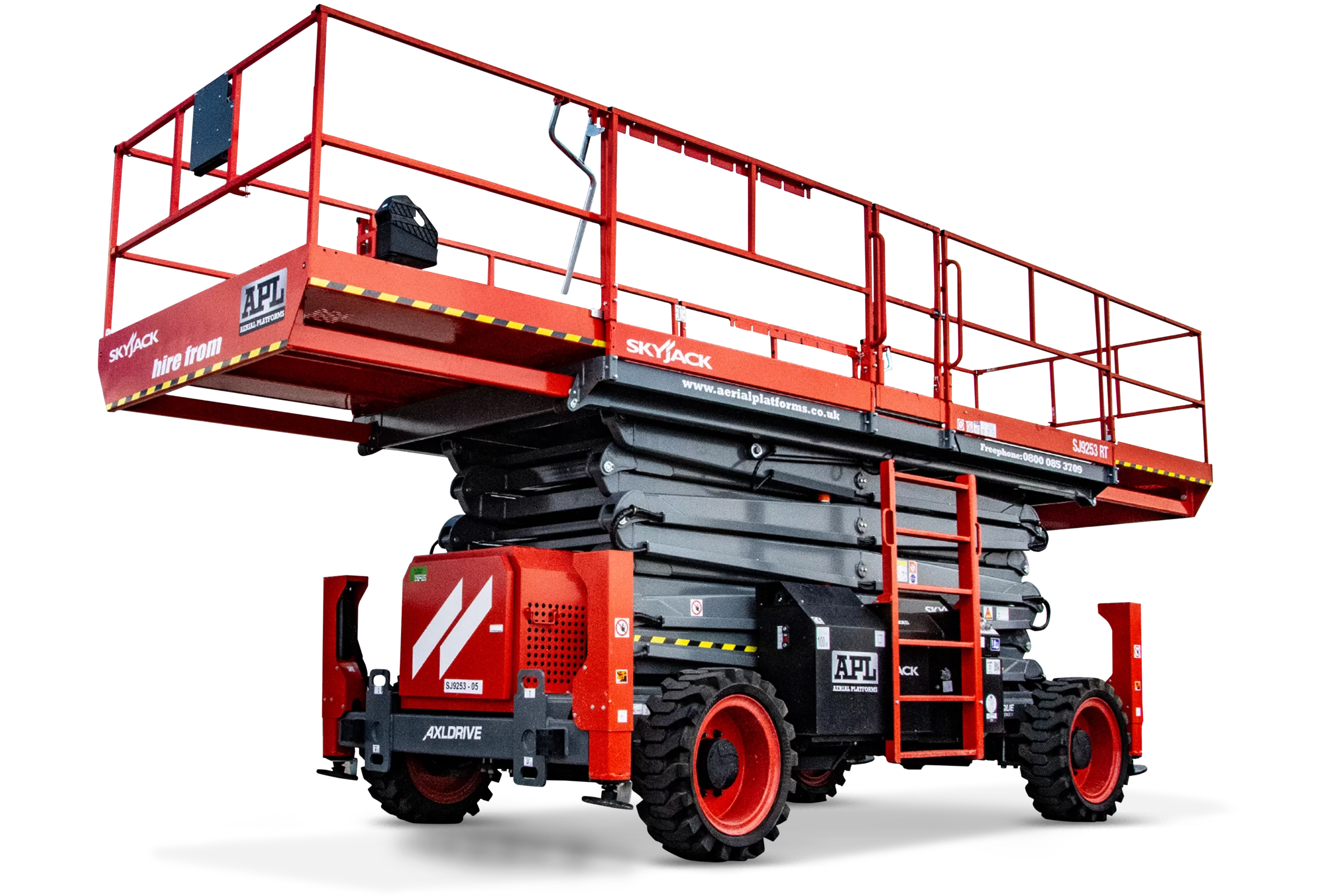

The Skyjack SJ9253RT is a diesel-powered rough terrain scissor lift offering a maximum working height of 17.98 meters and a platform capacity of 680 kilograms, accommodating up to five occupants. The platform measures 4.36 meters in length and 1.82 meters in width, extending to 7.4 meters with dual 1.5-meter deck extensions. Equipped with an axle-based four-wheel drive system featuring "no spin" and limited slip differentials, it achieves a gradeability of 35%, ensuring excellent maneuverability on challenging terrains. Additional specifications include an overall length of 4.5 meters, width of 2.3 meters, stowed height of 3.2 meters (rails up) or 2.43 meters (rails down), ground clearance of 0.26 meters, and an inside turning radius of 3.33 meters. The SJ9253RT weighs 8,301 kilograms and features independent/auto-leveling outriggers for enhanced stability.
Large 7.40m total working platform length with dual deck extended
Independent/auto-levelling outriggers
Overall lift capacity of 680kg comprised of 454kg on the main platform and 227kg on the front extension deck
Benefit from a 680kg lift capacity allowing a maximum of 5 people to work simultaneously on the platform
7.40m (L) x 1.82m (W) platform dimensions when dual 1.5m deck extensions are extended
Robust axle based 4WD system with "no spin" and limited slip differentials delivering excellent job site terrainability
