Electric Scissor Lift

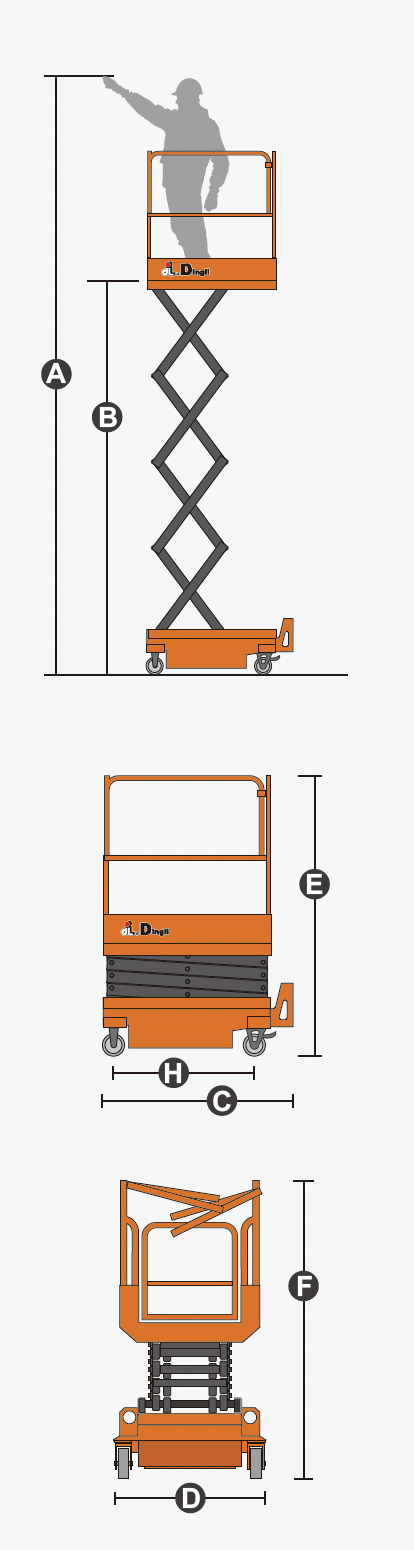

| Working Height (A) | 5.90m |
| Platform Height (B) | 3.90m |
| Overall Length (C) | 1.44m |
| Overall Width (D) | 0.76m |
| Overall Height (Rails Up) (E) | 1.92m |
| Overall Height (Rails Down) (F) | 1.52m |
| Platform Size (Length x Width) | 1.29m x 0.70m |
| Ground Clearance | 0.06m |
| Wheelbase (H) | 1.14m |
| Tyres | φ150×50mm |
| Lift Capacity | 240kg |
| Max. Occupants | 1 |
| Working Slope | X-1°/Y-1° |
| Up/Down Speed | 38/25 seconds |
| Weight | 530kg |
| Hydraulic Tank | 3L |
| Battery | 12V/85Ah |
| Charger | 12V/15A |
| Lifting Motor | 12VDC/0.8kW |
| Weight | 530kg |

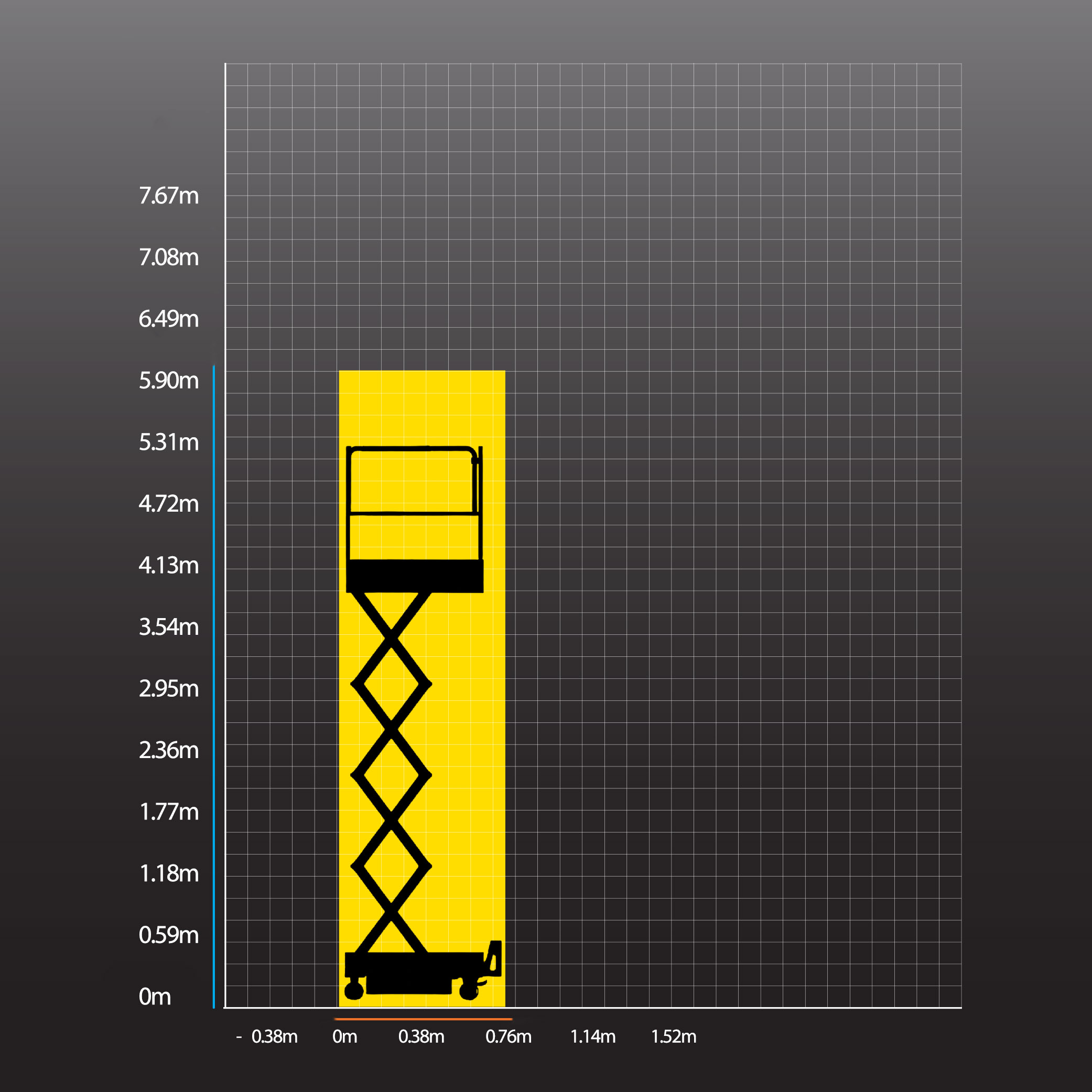

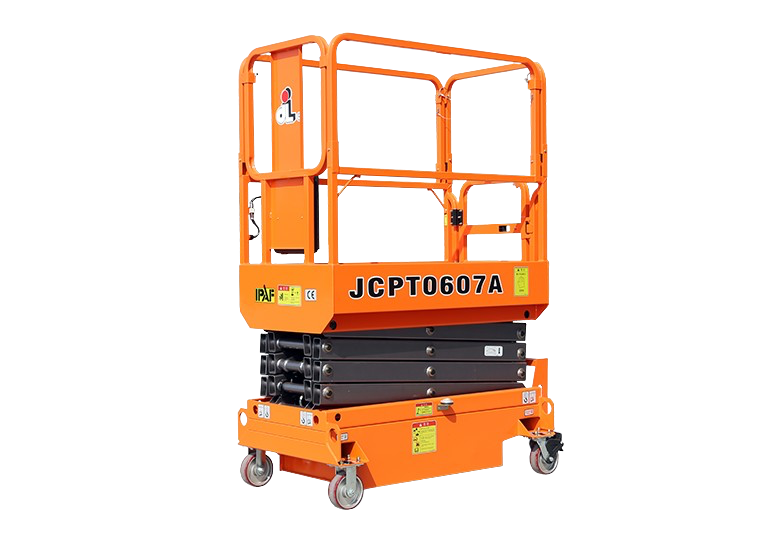

The Dingli JCPT0607A is a compact, battery-powered mini scissor lift ideal for indoor use. With a maximum platform height of 3.90 meters and a working height of 5.90 meters, it supports a load capacity of 240 kg, accommodating a single occupant. Its platform measures 1.29 meters in length and 0.70 meters in width, providing sufficient space for various tasks. The lift's overall dimensions include a length of 1.44 meters, a width of 0.76 meters, and a height of 1.92 meters with guardrails up, which reduces to 1.52 meters when the guardrails are down, facilitating access through standard doorways and elevators. Weighing 530 kg, the JCPT0607A features a zero turning radius, enhancing maneuverability in tight spaces.
Compact design for small spaces
Working height of 5.90 metres and a lift capacity of 240kg
The Dingli JCPT0607A has a platform size of 1.29m × 0.70m
Featuring simple and intuitive controls, this mini scissor lift can be operated with ease by a single individual, enhancing productivity in both small-scale and large-scale operations.
With its lightweight build, the JCPT0607A can be easily transported by a single vehicle, and multiple units can be moved simultaneously, maximizing efficiency for projects requiring several lifts.
Powered by a 12V lead-acid battery, the lift operates silently and without emissions, ensuring minimal environmental impact while maintaining optimal performance for a wide range of tasks.
