Dingli JCPT1912DCL
Dingli JCPT1912DCL
Dingli JCPT1912DCL
Dingli JCPT1912DCL
Dingli JCPT1912DCL
Dingli JCPT1912DCL
Right Arrow
Left Arrow
ENQUIRE NOW Call hire desk 0800 085 3709

Working Height (A)

19.0m

Overall Width (D)

1.25m

Platform Size (LxW)

3.44m x 1.17m

Lift Capacity

500kg

Gradeability

30%

Overall Weight

7,140kg

Google review
Dingli

Dingli JCPT1912DCL

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Working Height (A)

19.0m

Platform Height (B)

17.0m

Overall Length (C)

3.76m

Overall Width (D)

1.25m

Overall Height (Rails Up) (E)

3.24m

Overall Height (Rails Down) (F)

2.47m

Platform Size (LxW)

3.44m x 1.17m

Platform Extension Size (G)

1.20m

Ground Clearance (Stowed/Raised)

0.15m / 0.025m

Wheelbase (H)

2.89m

Turning Radius (Inside/Outside)

1.0m / 3.50m

Lift Capacity

500kg

Lift Capacity on Extension Deck

500kg

Max. Occupants (Indoor/Outdoor)

2/0

Gradeability

30%

Travel Speed (Stowed / Raised)

4.5km/h / 0.4km/h

Max. Working Slope

X-1.5°/Y-3°

Up/Down Speed

70/76sec

Overall Weight

7,140kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Your safety is our priority. All our equipment meets strict health and safety standards, with clear operational guidelines and risk assessments. For training, maintenance, or safety documentation, please refer to the included manuals or contact our team for support.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Working envelope

Working envelope

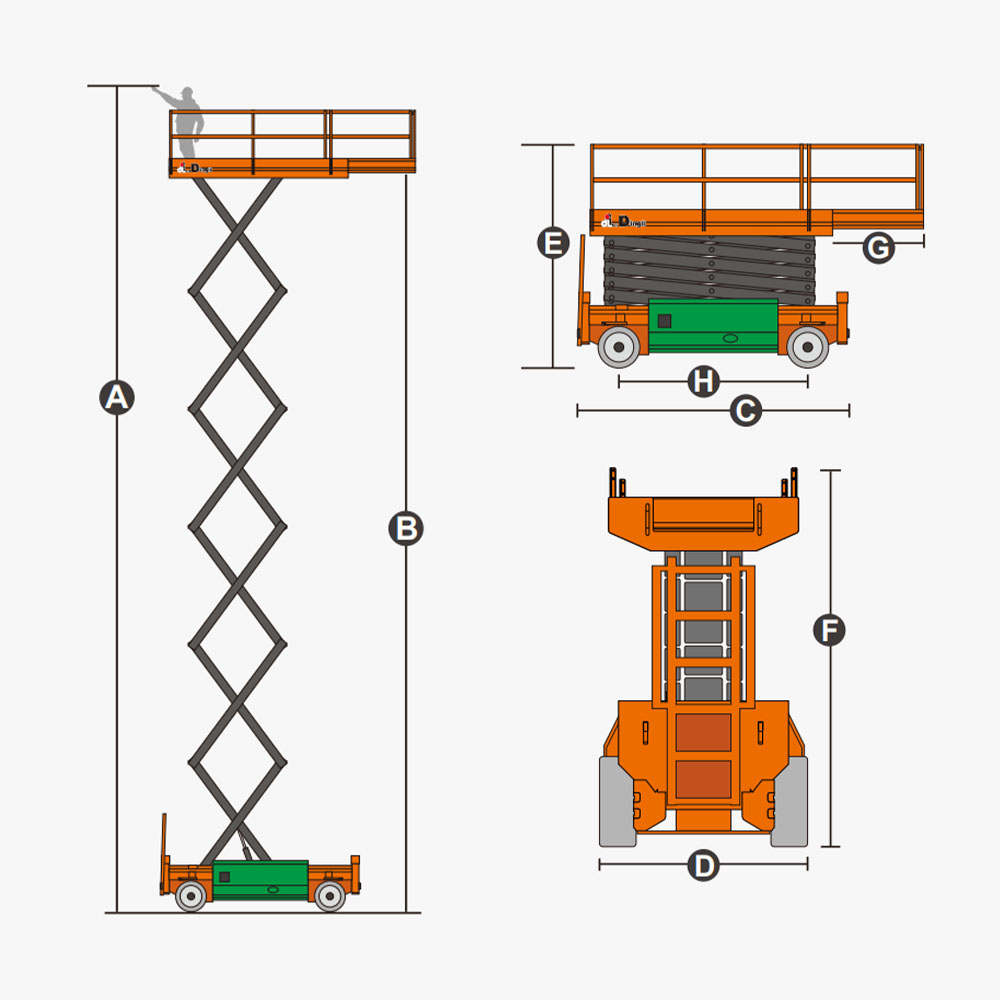

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The Dingli JCPT1912DCL is a high-reach electric scissor lift engineered specifically for indoor applications where maximum height and clean operation are essential. With a 19.00 metre working height and a spacious, high-capacity platform, it provides ample room for operators, tools and materials to work safely and efficiently at elevation. The quiet, zero-emission electric drive system makes it ideal for warehouses, manufacturing facilities, distribution centres and large commercial interiors. Featuring smooth proportional controls, a robust scissor stack and a durable chassis design, the JCPT1912DCL delivers stable, reliable performance for demanding high-level indoor access tasks.

STANDARD FEATURES

The Dingli JCPT1912DCL offers an impressive maximum working height of 19.00 metres, making it ideal for high-level installation and maintenance applications.

Foldable guardrails reduce the overall transport height, making loading and transportation more convenient.

It provides a spacious platform with a high safe working load, allowing multiple operators, tools and materials to work safely at height.

Extended Platform Reach

The slide-out 1.2m extension deck increases usable platform space, improving access over obstacles and expanding working range.

Zero-Emission Electric Power

The high-capacity electric drive system delivers quiet, clean performance, making it suitable for environmentally sensitive sites and indoor applications.

Operator Safety & Protection Features

Built-in safety systems, including tilt sensors, overload protection, emergency lowering and intuitive control panels, help safeguard operators while maintaining efficient site operations.
