LGMG LG3246 Electric Scissor Lift - APL
LGMG LG3246
LGMG LG3246
LGMG LG3246
LGMG LG3246
LGMG LG3246
LGMG LG3246
Right Arrow
Left Arrow

LGMG LG3246

Specifications

Working height

12.0m

Platform height (A)

10.0m

Platform height - stowed (B)

1.20m

Platform length (C)

2.26m

Platform width (D)

1.15m

Overall length - with ladder (E)

2.47m

Overall width (F)

1.18m

Overall height - rails up (G)

2.43m

Overall height - rails down

1.86m

Extension deck

0.9m

Wheelbase

1.85m

Ground clearance

100/20mm

Max. occupants (in/out)

2/1

Platform capacity

320kg

Platform capacity - extension

120kg

Gradeability - stowed

25%

Turning radius - inside/outside

0m/2.3m

Raise/lower speed

58s/48s

Drive mode

4x2

Weight

3,000kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Power-To-Platform

Power-To-Platform

Has power to platform

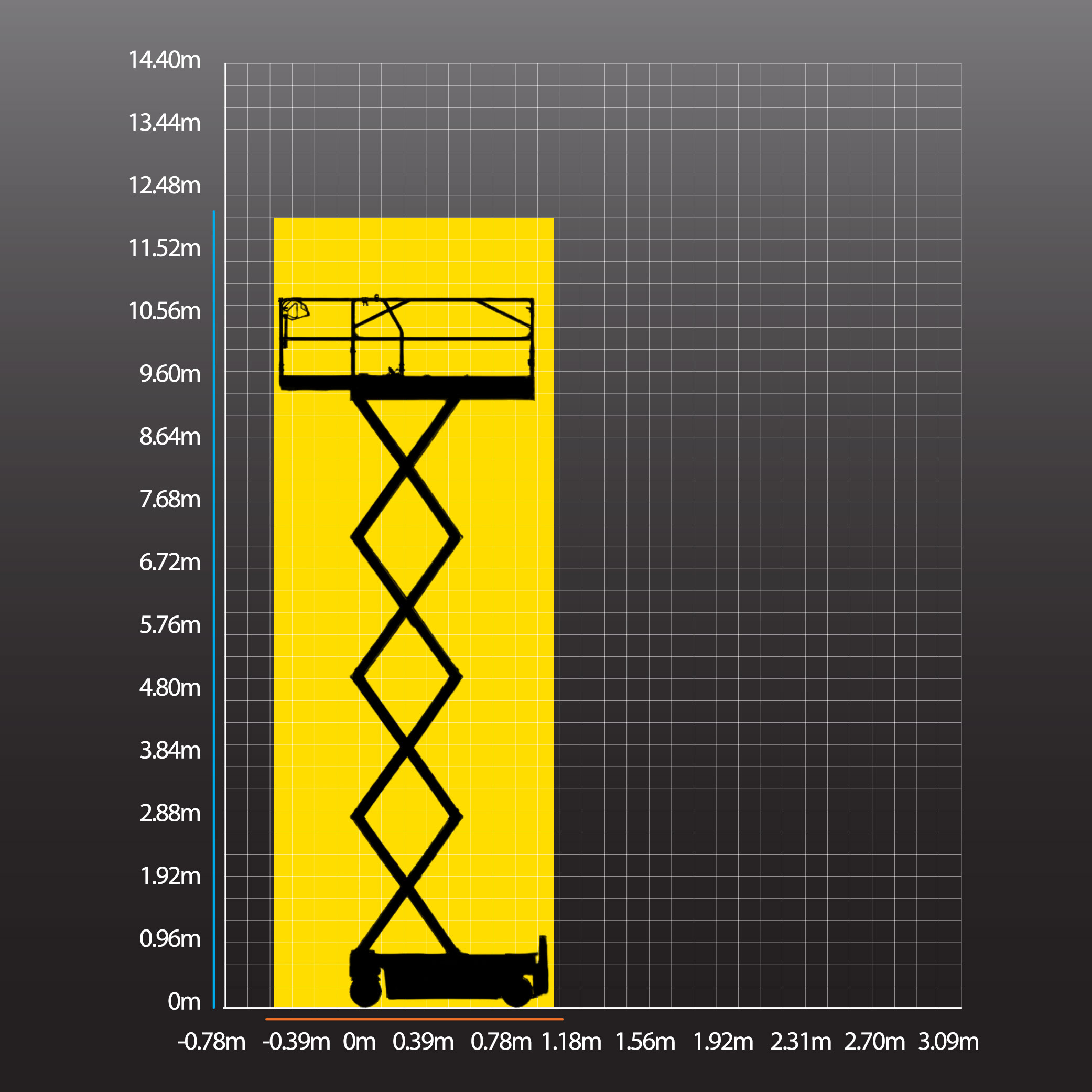

Working envelope

Working envelope

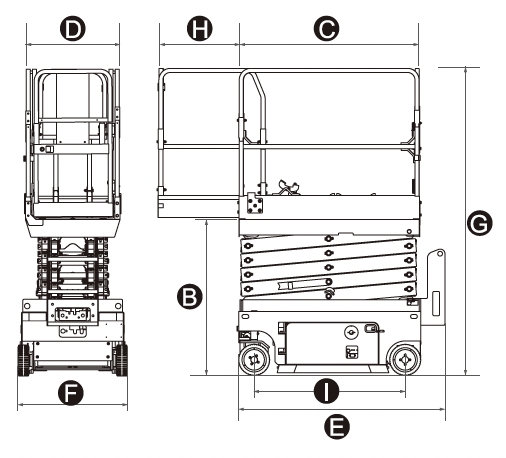

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The LGMG LG3246 is a versatile scissor lift designed for both indoor and outdoor use, offering a maximum working height of 12 meters (39.4 feet) and a platform capacity of 320 kg (705 lbs). Key features include proportional controls for smooth operation, foldable guardrails for easy transport, full-height drive capability, and advanced safety systems such as tilt alarms, overload sensing, and pothole guards. The platform measures 2.26 meters in length and 1.15 meters in width, with a 0.9-meter extension deck for increased reach. The machine's overall dimensions are 2.47 meters in length, 1.18 meters in width, and 2.43 meters in height with rails up, or 1.86 meters with rails down. It has a wheelbase of 1.85 meters and ground clearance of 100/20mm stowed/raised. The LG3246 supports up to two occupants indoors and one outdoors, with a gradeability of 25% and a turning radius of 0 meters inside and 2.3 meters outside. The raise/lower speed is 58 seconds up and 48 seconds down, and the machine weighs 3,000 kg.

STANDARD FEATURES

The LGMG LG3246 has a maximum working height of 12 meters.

It supports a platform capacity of 320 kg.

The total machine weight is approximately 3,000 kg.

Overload Sensing System

Automatically detects platform overload and alerts operators to maintain safety.

Full-Height Drive Capability

Enables driving while fully elevated, improving efficiency on the job site.

Overload Sensing System

Simplifies maintenance with clear troubleshooting insights.
