Skyjack SJ4632 Electric Scissor Lift - APL
Skyjack SJ4632
Skyjack SJ4632
Skyjack SJ4632
Skyjack SJ4632
Skyjack SJ4632
Skyjack SJ4632
Right Arrow
Left Arrow

Skyjack SJ4632

Specifications

Working height (A)

11.58m

Platform height (B)

9.75m

Overall height (C)

1.23m

Overall width (D)

1.17m

Overall length (E)

2.31m

Stowed height - rails up (F)

2.24m

Stowed height - rails down (G)

1.88m

Platform width (H)

1.07m

Platform length (I)

2.13m

Lift capacity

318kg

Lift capacity - extension deck

113kg

Max. occupants

2

Extension deck

1.22m

Ground clearance (stowed)

8.89cm

Ground clearance (raised)

1.91cm

Wheelbase

1.75m

Gradeability

25%

Turning radius (inside/outside)

1.21/2.37m

Raise time

59 secs

Lower time

49 secs

Drive speed (stowed/raised)

2/0.6 mph

Weight

2,302kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Power-To-Platform

Power-To-Platform

Has power to platform

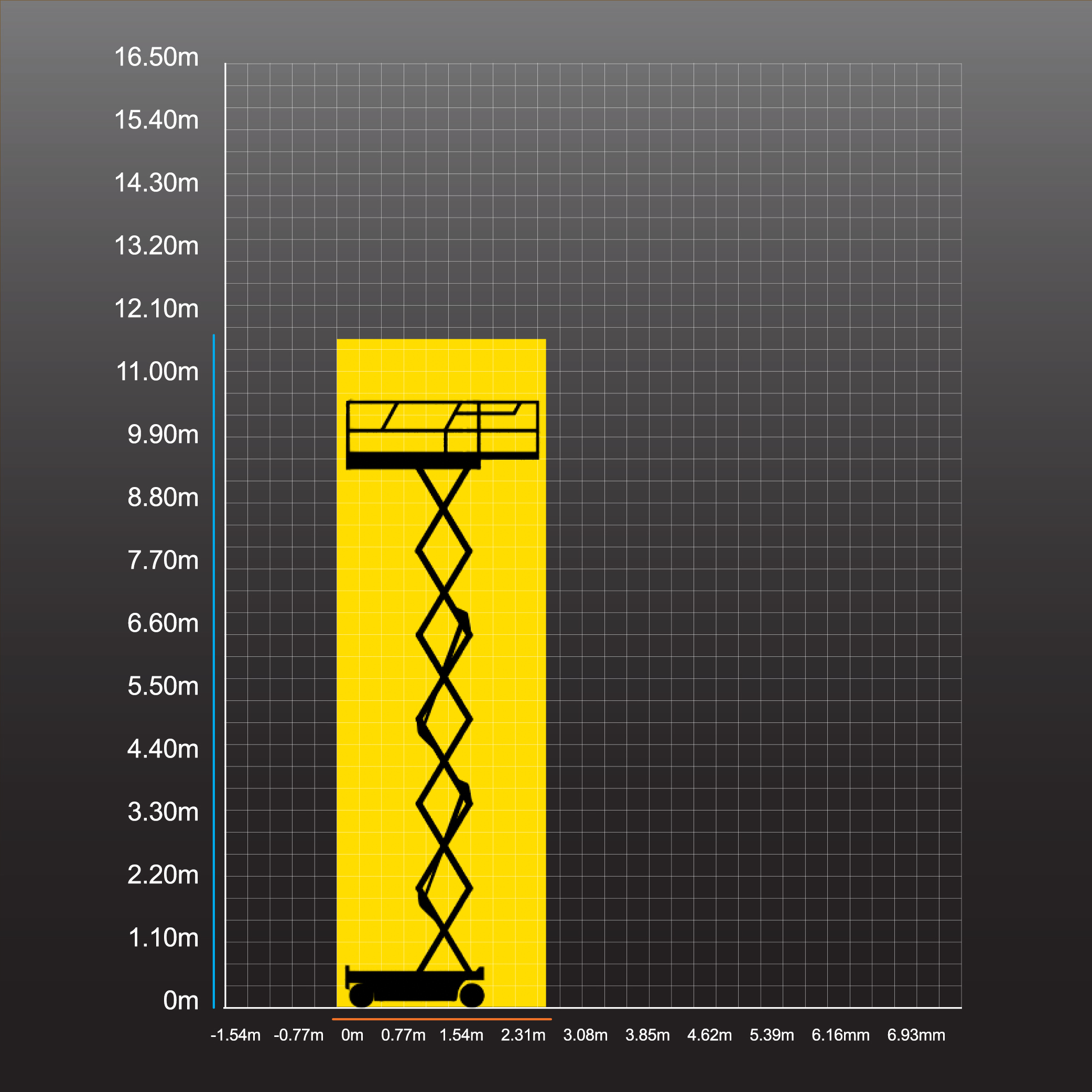

Working envelope

Working envelope

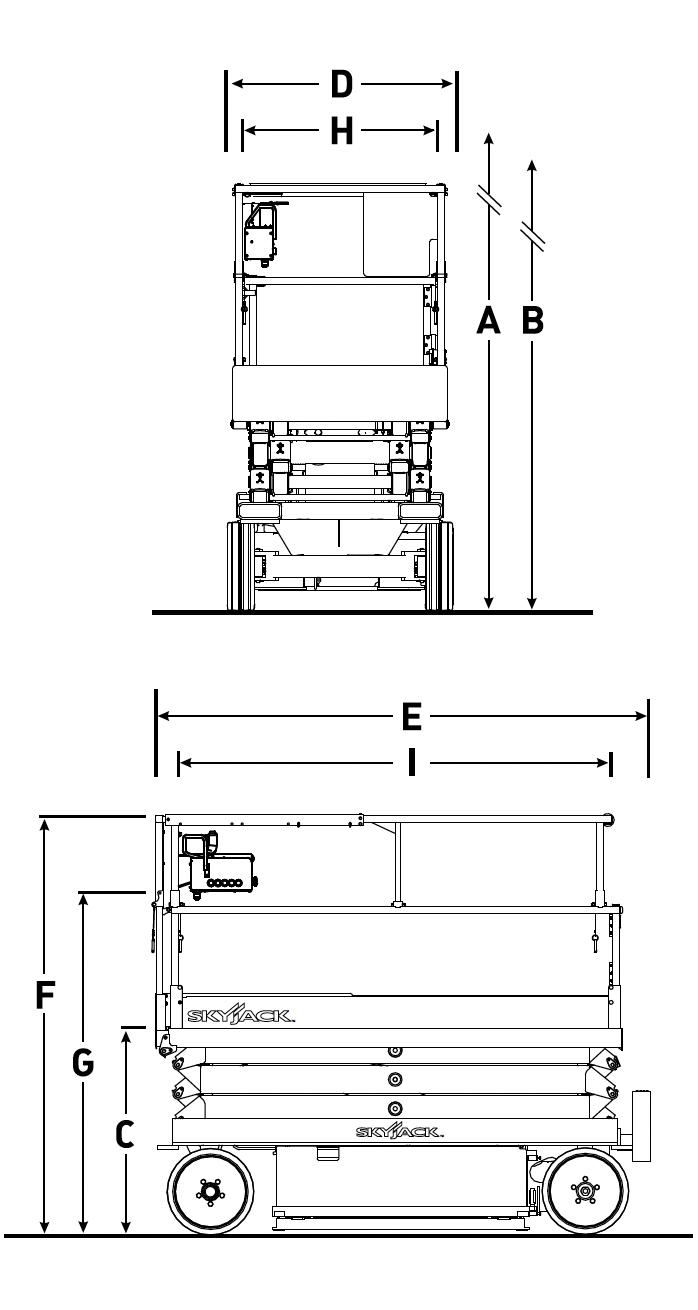

Dimension drawing

Dimension drawing

MACHINE INFORMATION

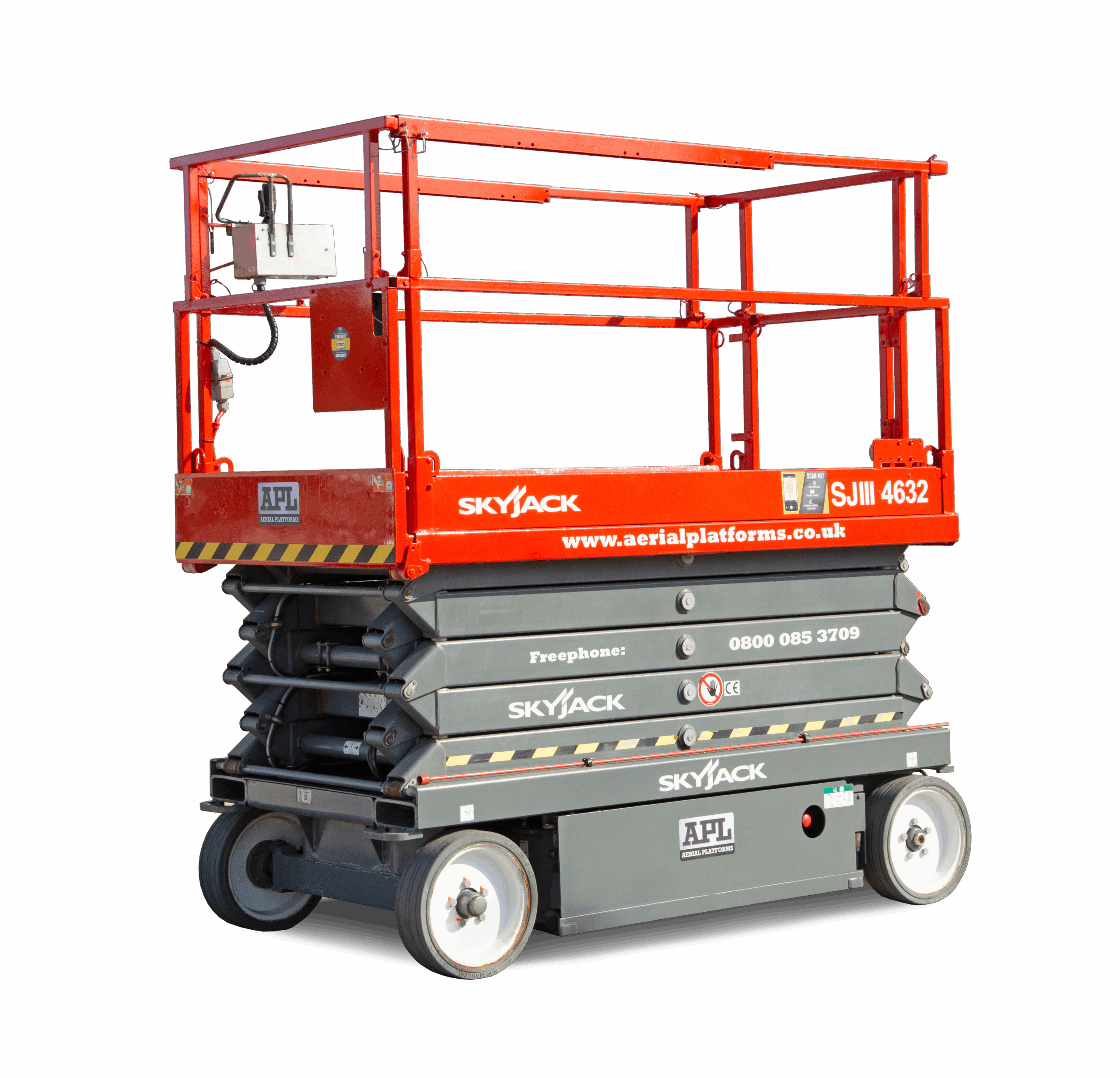

The Skyjack SJ4632 is a versatile electric scissor lift designed for both indoor and outdoor applications. It offers a working height of 11.75 meters and a platform capacity of 317 kg, making it ideal for construction, maintenance, and installation tasks. Featuring rear-wheel hydraulic drive, a spacious platform with an extension deck, and non-marking tires, it ensures easy maneuverability in tight spaces. Powered by a 24V DC battery system, the SJ4632 provides zero-emission, low-noise operation, making it suitable for indoor use. With a 25% gradeability, it handles slopes efficiently, and its safety features, including tilt alarms, pothole protection, and lanyard attachment points, ensure secure and efficient use at height.

STANDARD FEATURES

The Skyjack SJ4632 has a SWL of 317 kg, accommodating up to two operators with tools and materials.

Capable of handling slopes up to 25%, allowing for operation on inclined surfaces.

Has a spacious 1.07 x 2.13 meter platform with a 1.22-meter roll-out extension deck.

Enhanced Operator Safety

Built-in features like dual holding brakes, tilt alarm, pothole protection, and lanyard attachment points ensure maximum safety while working at height.

Eco-Friendly & Quiet Operation

Powered by a 24V DC battery system, the Skyjack SJ4632 delivers zero-emission, low-noise performance, making it perfect for indoor use.

Enhanced Operator Safety

Equipped with solid, non-marking tires, the lift moves effortlessly on delicate surfaces without causing damage.
