Diesel Boom Lift

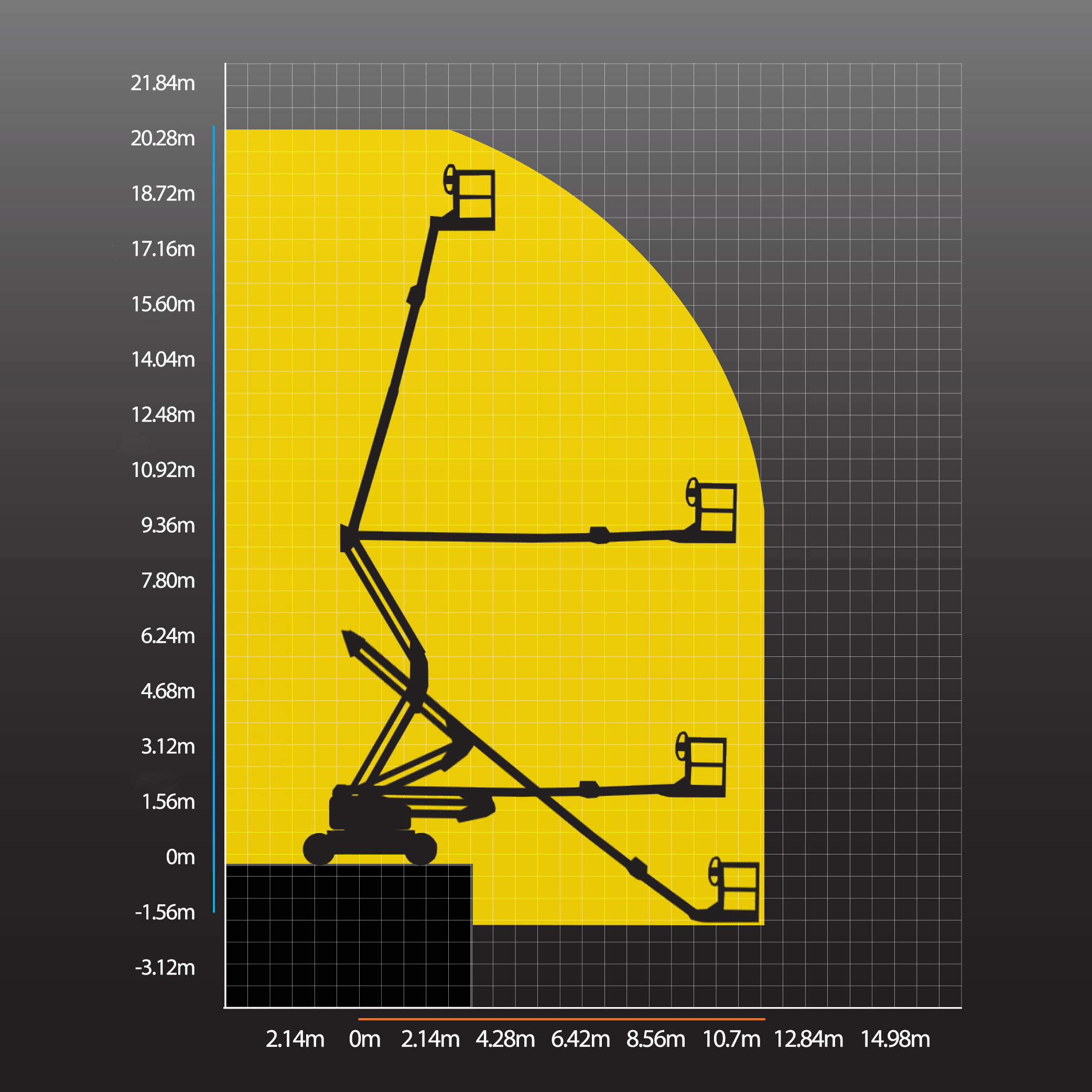

| Working Height | 20.29m |
| Platform Height | 18.29m |
| Horizontal Outreach | 11.56m |
| Up and Over Height | 8.31m |

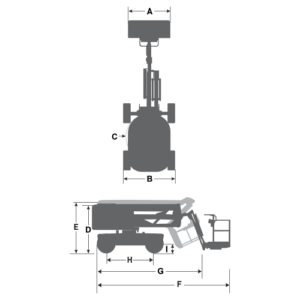

| A. Platform Size | 0.91m x 2.44m |
| B. Width Stowed | 2.44m |
| C. Tailswing | 0.61m |
| D. Height Stowed | 2.54m |
| E. Transportation Height | 2.79m |
| F. Length Stowed | 8.59m |
| G. Transportation Length | 6.60m |
| H. Wheelbase | 2.44m |
| I. Ground Clearance | 0.33m |
| Rotation | 360° |
| Platform Rotation | 170° |
| Jib Length | 1.52m |
| Jib Range | +65°/-60° |
| Gradeability | 40% |
| Turning Radius (Inside) | 2.21m |
| Turning Radius (Outside) | 5.31m |
| Axle Oscillation | 10.16cm |
| Lift Capacity | 300/454kg |
| Maximum No. of Persons | 2/3 |
| Weight | 8,557kg |
The Skyjack SJ60 AJ+ is a high-performing aerial work platform designed for demanding job sites. It provides a 20 metre working height, ensuring access to elevated areas with ease. Engineered for robust maneuverability and precision control, it excels in navigating tight spaces while maintaining stability. Built with durability in mind, the SJ60 AJ+ is a reliable solution for a wide range of challenging applications.
The Skyjack SJ60 AJ+ EASYDRIVE™ means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for colour coded arrows to determine drive versus joystick direction.
The jib can be rotated precisely to where you need to work. The self levelling platform can also be rotated to meet your ideal work position.
The Skyjack SJ60 AJ+ SGE system features a sensor bar that when pushed instantly stops all functions and initiates an audible siren and high intensity flashing beacon. If the bar is released within one second the siren and beacon will cease and the selected function will return. If pressure is applied for more than one second the siren and beacon will continue to activate and the engine will stop, halting all functions until reset.
The Skyjack SJ60 AJ+ articulating boom offers precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
Skyjack SJ60 AJ+ features a boom geometry that allows the operator to lower the main fly boom to ground level to restock on material or supplies, then return to full height at the original working position - without lowering the riser section. It can be quickly executed and there is no need for machine repositioning or having to remember the sequence of operations to get back to the original working position - thus, improving productivity.
The Skyjack SJ60 AJ+ ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
