Dingli BA11NE
Dingli BA11NE
Dingli BA11NE
Dingli BA11NE
Dingli BA11NE
Dingli BA11NE
Right Arrow
Left Arrow
ENQUIRE NOW Call hire desk 0800 085 3709

Max. Working Height

10.8m

Max.Horizontal Reach

6.35m

B. Overall Width(Stowed)

1.2m

Platform Size(Length×Width)

0.76m × 1.17m

Lift Capacity

227kg

Weight

6,660kg

Google review
Dingli

Dingli BA11NE

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height

10.8m

Max.Platform Height

8.8m

Max.Horizontal Reach

6.35m

Up And Over Clearance

3.8m

A. Overall Length(Stowed)

3.9m

B. Overall Width(Stowed)

1.2m

Overall Width(Transport)

1.2m

C. Overall Height(Stowed)

2.0m

Overall Height (Transport)

2m

Platform Size(Length×Width)

0.76m × 1.17m

D. Ground Clearance

0.09m

E. Wheelbase

1.65m

Max. Down Probing Depth

9.65m

Lift Capacity

227kg

Max Occupants

2

Tailswing Turntable

0m

Turning Radius (Inside/Outside)

1.5m/3.2m

Turret Rotation (Continuous)

355°

Platform Rotation

180°

Jib Movement

139°

Gradeability

35%

Max Working Slope

X-2.5°/Y-4.5°

Weight

6,660kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Your safety is our priority. All our equipment meets strict health and safety standards, with clear operational guidelines and risk assessments. For training, maintenance, or safety documentation, please refer to the included manuals or contact our team for support.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Basket Rotation

Basket Rotation

Rotating platform for flexibility

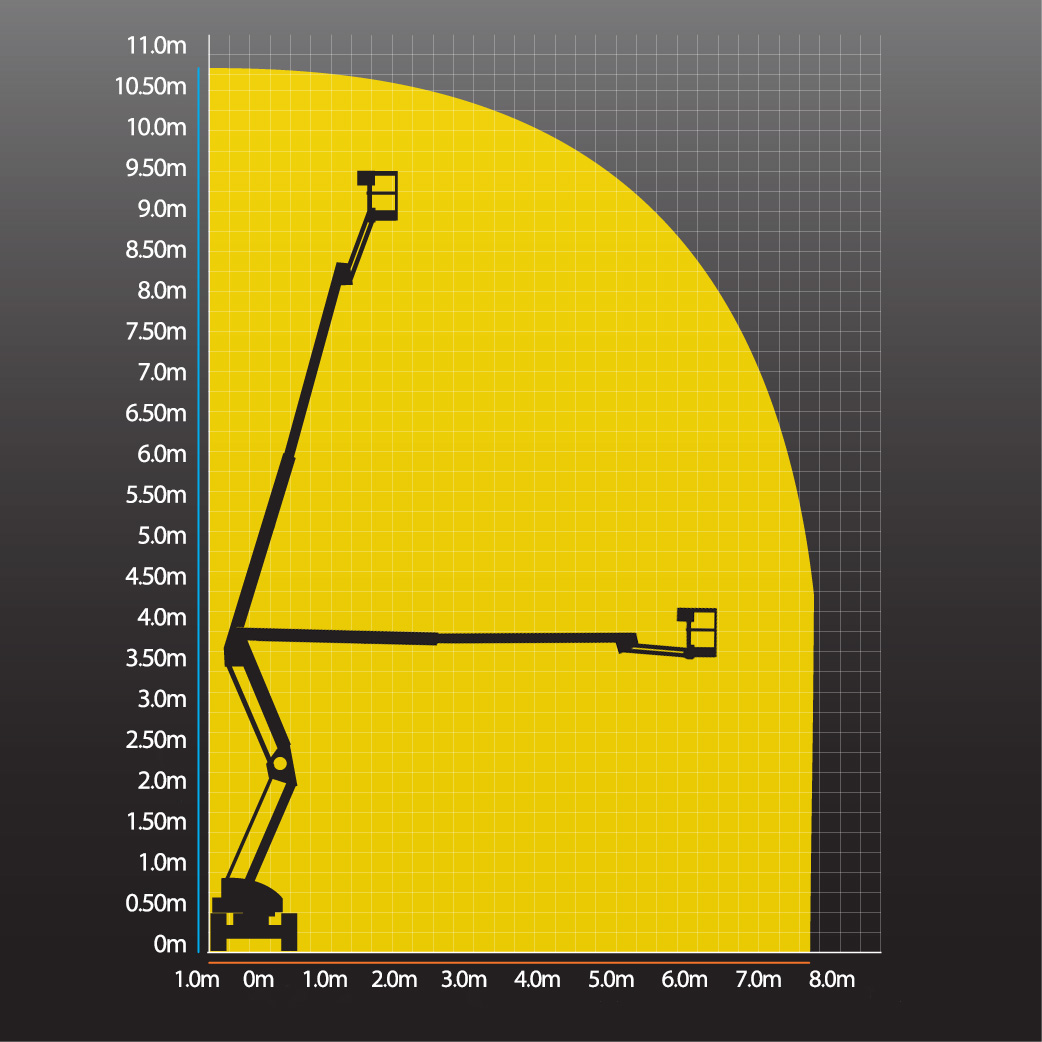

Working envelope

Working envelope

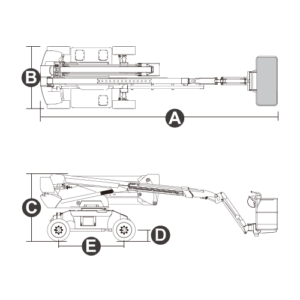

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The Dingli BA11NE is expertly engineered for narrow and complex workspaces, offering the ability to drive at full height for enhanced efficiency. Its 4x2 drive system ensures smooth and flexible operation, while its exceptional up-and-over reach of 3.8m and horizontal outreach of 6.35m deliver outstanding performance. With a compact width of 1.2m and a stowed height of 2.0m, it easily navigates through tight areas. The BA11NE also features self-weight descent technology for superior stability and operates with a pure electric drive, providing silent, zero-emission functionality that is both energy-saving and environmentally friendly.

STANDARD FEATURES

The Dingli BA11NE has better inside performance.

Equipped with platform load sense system, motion alarm and automatic braking system.

Maximum weight of the Dingli BA11NE is 6,6600kg.

Working Height

Max Working Height of 10.8m with a Max Platform Height of 8.8m

Horizontal Outreach

Max Horizontal Outreach of 6.35m

Working Height

Benefit from a 227kg platform capacity suited for 2 occupants and tools
