JLG E300AJP Electric Boom Lift Hire - AerialPlatformsLtd
JLG E300AJP
JLG E300AJP
JLG E300AJP
JLG E300AJP
JLG E300AJP
JLG E300AJP
Right Arrow
Left Arrow

JLG E300AJP

Specifications

Working Height

10.97m

Platform Height

9.14m

Up and Over Height

4.01m

Horizontal Outreach

6.77m

Swing

350°

Lift Capacity

230kg

Platform Rotator (Hydraulic)

180°

Jib Overall Length

1.22m

A. Platform Size

144° (+84°/-60°)

A. Platform Size

0.76m x 1.22m

B. Overall Width

1.22m

C. Tailswing

0m

D. Stowed Height

2.01m

E. Stowed Length

5.74m

F. Wheelbase

1.65m

G. Ground Clearance

0.10m

Gradeability

25%

Turning Radius (Inside)

1.52m

Turning Radius (Outside)

3.10m

Weight

7,100kg*

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

Basket Rotation

Basket Rotation

Rotating platform for flexibility

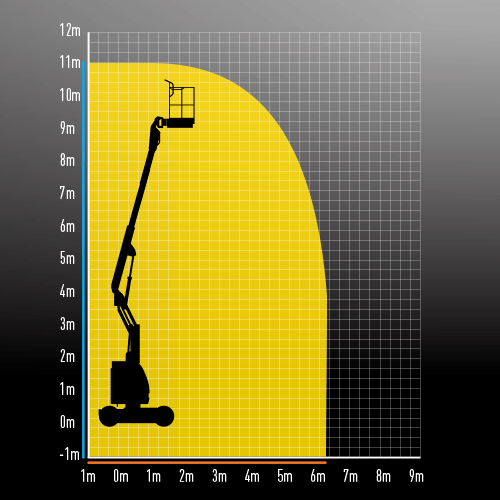

Working envelope

Working envelope

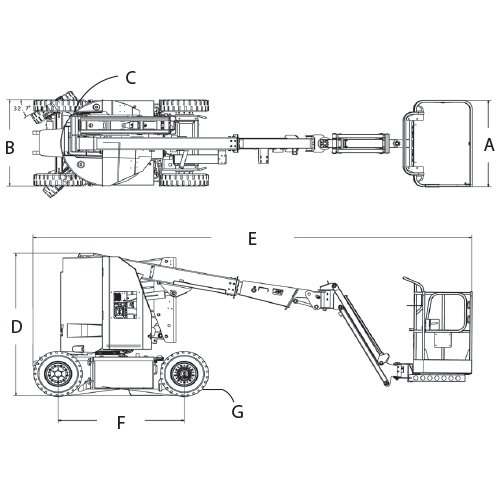

Dimension drawing

Dimension drawing

MACHINE INFORMATION

​The JLG E300AJP is an electric articulating boom lift designed for enhanced accessibility and maneuverability in confined spaces. It offers a maximum working height of 10.97 meters and a horizontal outreach of 6.77 meters, with a lift capacity of 230 kilograms. The platform features a 180-degree hydraulic rotator and a 1.22-meter jib with a 144-degree range of articulation (+84°/-60°), allowing for precise positioning. Its compact design includes an overall width of 1.22 meters, a stowed height of 2.01 meters, and zero tailswing, making it suitable for tight work areas. The E300AJP is equipped with a high-efficiency direct electric drive and standard Automatic Traction Control, providing enhanced terrain performance and longer duty cycles. Safety features include the JLG Skyguard active system, a self-closing inward swing gate, and an all-motion alarm.

STANDARD FEATURES

Increased accessibility with the optional JibPLUS® with side-to-side movement and near-vertical jib operation

Standard Automatic Traction Control for enhanced terrain performance and increased manoeuvrability

High-efficiency direct electric drive with longer duty cycles for increased productivity

Environmentally-Friendly

Zero emissions for environmentally-friendly equipment

Jib - Range of articulation

144 Degrees

Environmentally-Friendly

350 Degrees
