Electric Boom Lift
| Max Working Height | 13.50m |
| Max Platform Height | 11.50m |
| Max Working Outreach | 6.10m |
| Platform Size (E x F) | 0.69m x 1.11m |
| Overall Width (B) | 1.50m |
| Overall Length (C) | 4.10m |
| Height Stowed (D) | 2.00m |
| Ground Clearance | 120mm |
| Lift Capacity | 215kg |
| Max Drive Height | Full Height |
| Max Wind Speed | 12.5m/s |
| Platform Rotation | 90° (+45°/-45°) |
| Turret Rotation (Non-Continuous) | 360° |
| Tailswing (riser boom elevated) | 0m |
| Tailswing (riser boom stowed) | 1.4m |
| Raise/Lower Time | 83/68 sec |
| Gradeability | 36% |
| Inside Turning Radius | 1.12m |
| Outside Turning Radius | 2.40m |
| Weight | 3,880kg |

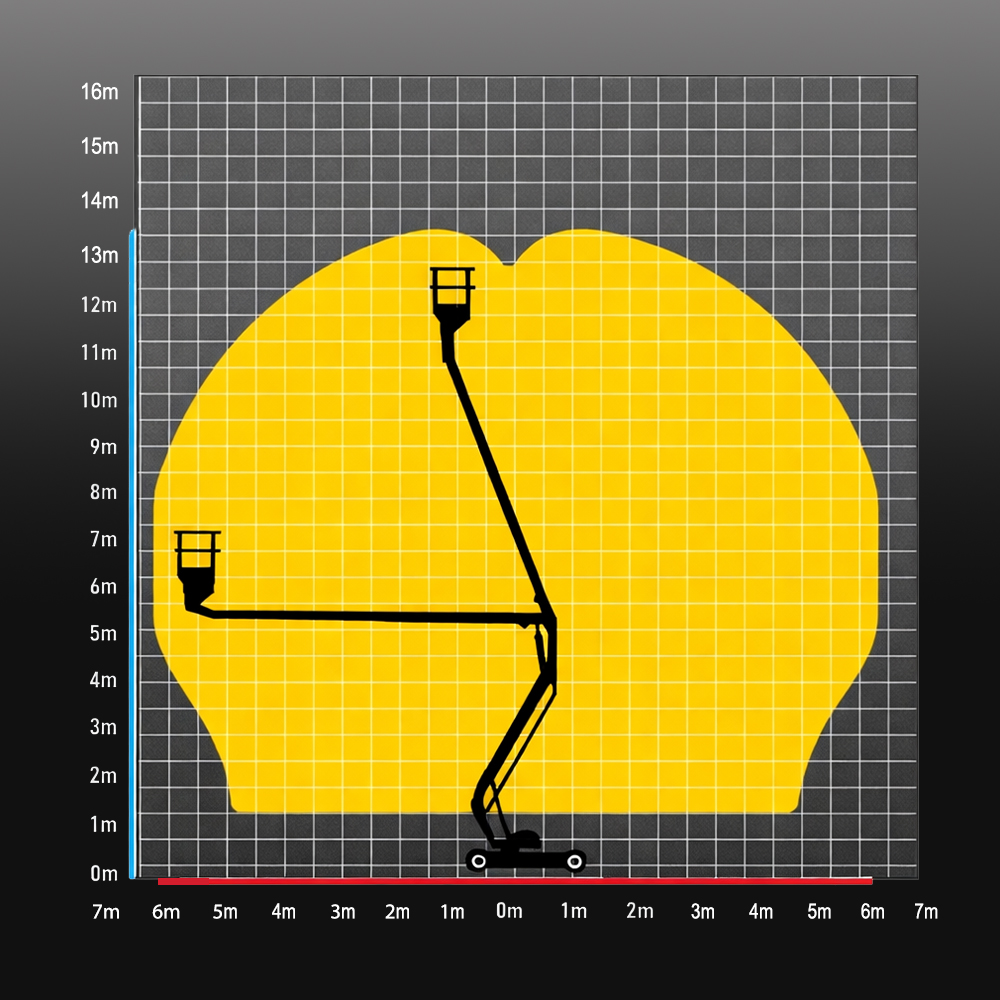

The Snorkel A38E is a lightweight, electric articulating boom lift designed for both indoor and outdoor applications. It offers a maximum working height of 13.5 meters and a horizontal outreach of 6.1 meters, with a platform capacity of 215 kilograms. The platform measures 0.69 by 1.11 meters and features 90-degree rotation (+45°/-45°), while the turret provides 360-degree non-continuous rotation. With compact dimensions—1.5 meters in width, 4.1 meters in length, and a stowed height of 2.0 meters—the A38E is highly maneuverable, boasting an ultra-tight inside turning radius of 1.12 meters and zero tailswing when the riser boom is elevated. It is equipped with non-marking tires and the Snorkel Guard™ secondary guarding system for enhanced safety.
Compact chassis dimensions of 1.5m x 4.1m for excellent manoeuvrability
Lightweight, durable and reliable
Suitable for indoor and outdoor use
Simple, mechanical spring-loaded rail mounted above the platform controls, which cuts-out machine operations when pressure is applied.
Ultra-tight inside turning radius of 1.12m allowing the machine to be operated in confined areas.
2 person + equipment capacity indoor 1 person + equipment capacity outdoor
