Electric Scissor Lift
| Working Height | 9.92m |
| Platform Height | 7.92m |
| A. Stowed Height | 2.36m |
| B. Platform Railing Height | 1.10m |
| C. Stowed Height (Rails Folded) | 2.01m |
| D. Platform Size (W x L) | 1.12m x 2.50m |
| E. Deck Extension | 1.27m |
| F. Overall Width | 1.17m |
| G. Overall Length | 2.50m |
| H. Wheelbase | 2.09m |
| I. Ground Clearance | 0.13m |
| Lift Capacity | 454kg |
| Maximum Drive Height | Full Height |
| Gradeability | 25% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.41m |
| Weight | 2,740kg |

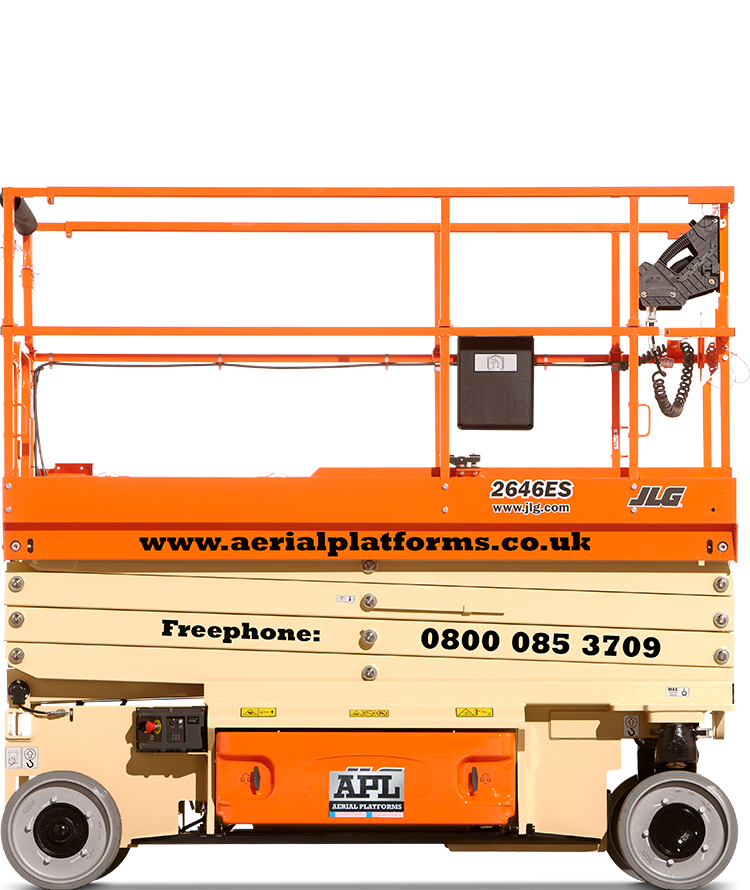

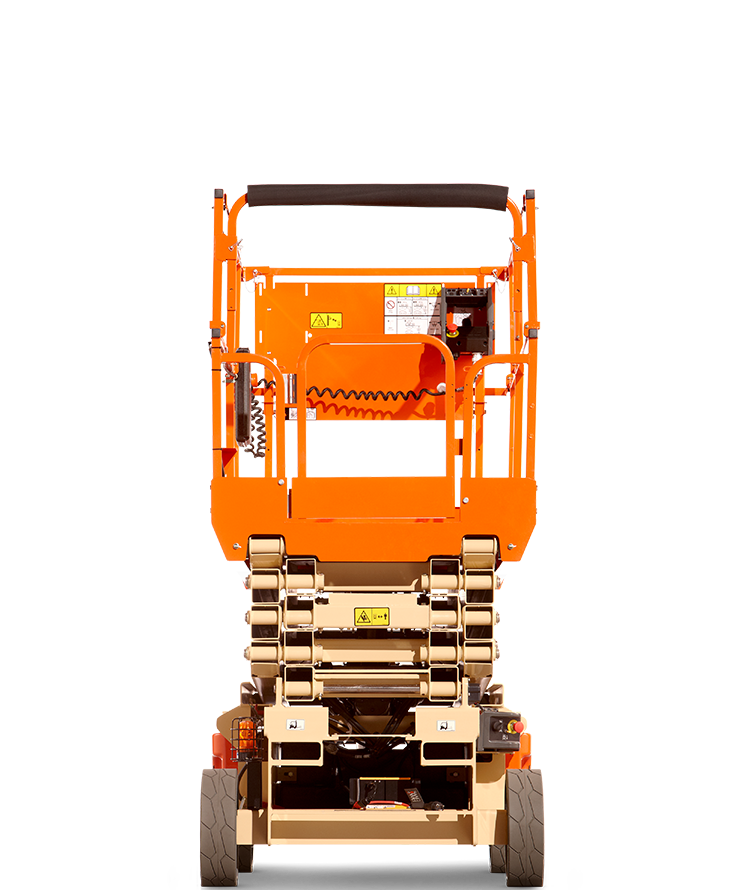

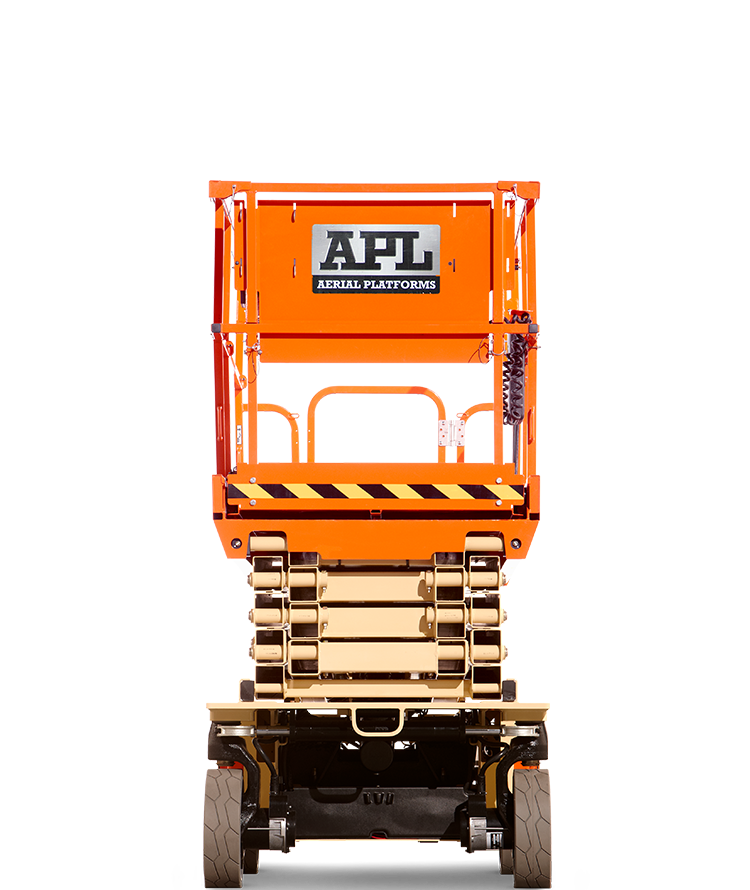

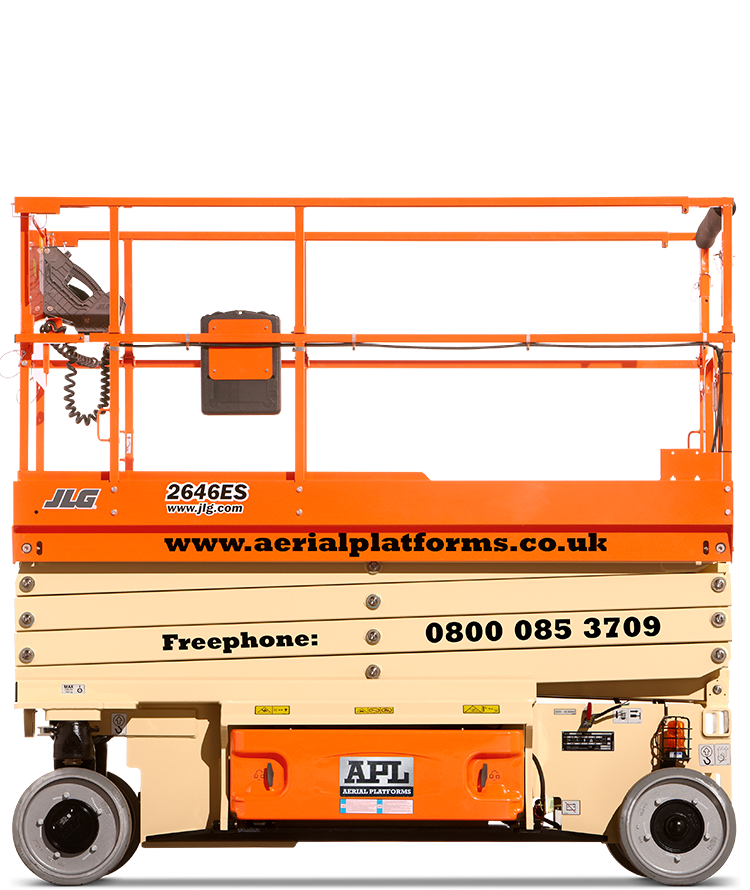

The JLG 2646ES is an electric scissor lift designed for efficient operation in confined spaces. It offers a maximum working height of 9.92 meters and supports a platform capacity of 454 kilograms, accommodating multiple occupants. The platform measures 2.50 meters in length and 1.12 meters in width, featuring a 1.27-meter deck extension for enhanced reach. With an overall width of 1.17 meters and a stowed height of 2.36 meters (reducible to 2.01 meters with folded guardrails), the 2646ES easily navigates standard doorways and tight areas. Its zero inside turning radius and 25% gradeability enhance maneuverability on various terrains. Equipped with non-marking tires and an electric drive system, the lift operates quietly and emits zero emissions, making it suitable for indoor use on sensitive flooring. Weighing 2,740 kilograms, the 2646ES is drivable at full height, ensuring productivity during tasks. Additional features include proportional controls for precise operation and fold-down handrails that reduce the stowed height, facilitating access to low-clearance areas.
Max working height of 9.92m with full proportional drive joystick control
Fold down handrails reducing the machines stowed height from 2.39m to 2.01m
Inside turning radius of 0m allowing for precise manoeuvring in tight spaces
Electric power for zero emissions and near-silent running indoors
Boost efficiency with direct electric drive
Get into more places with compact dimensions and precise control system
