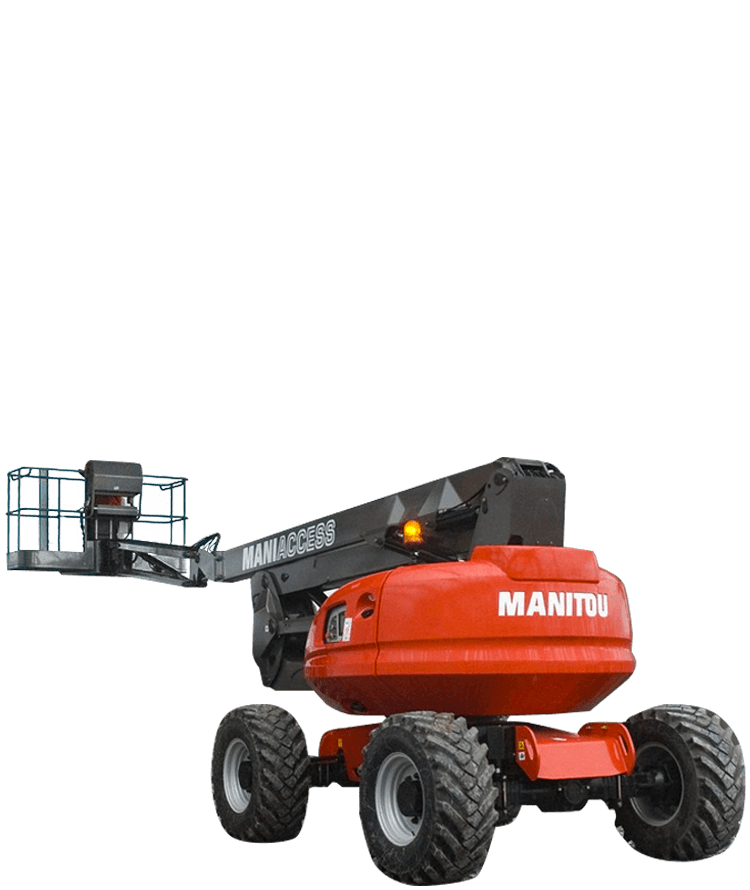

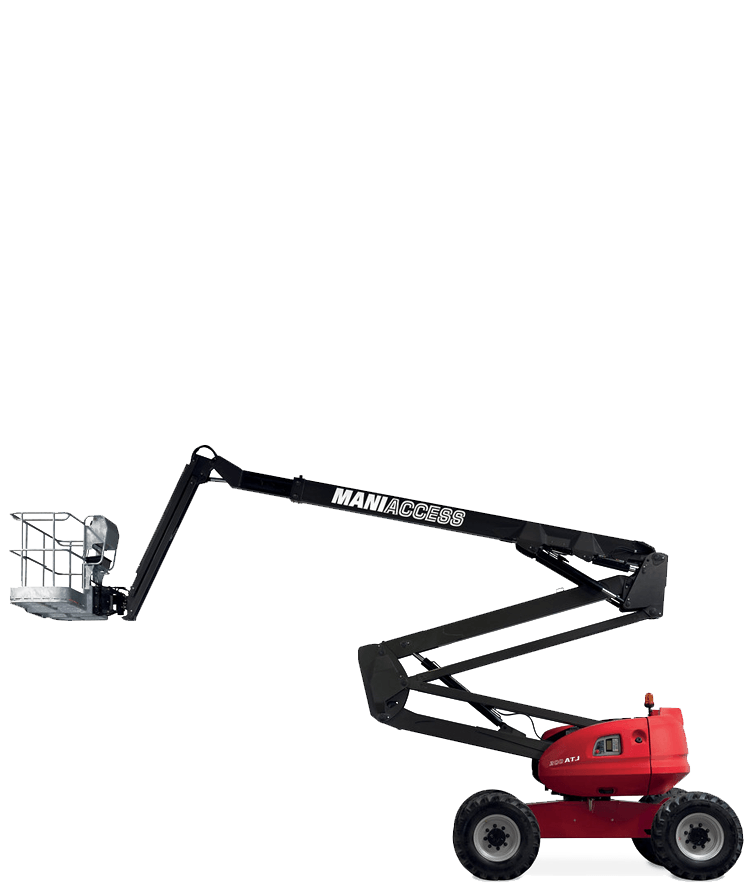

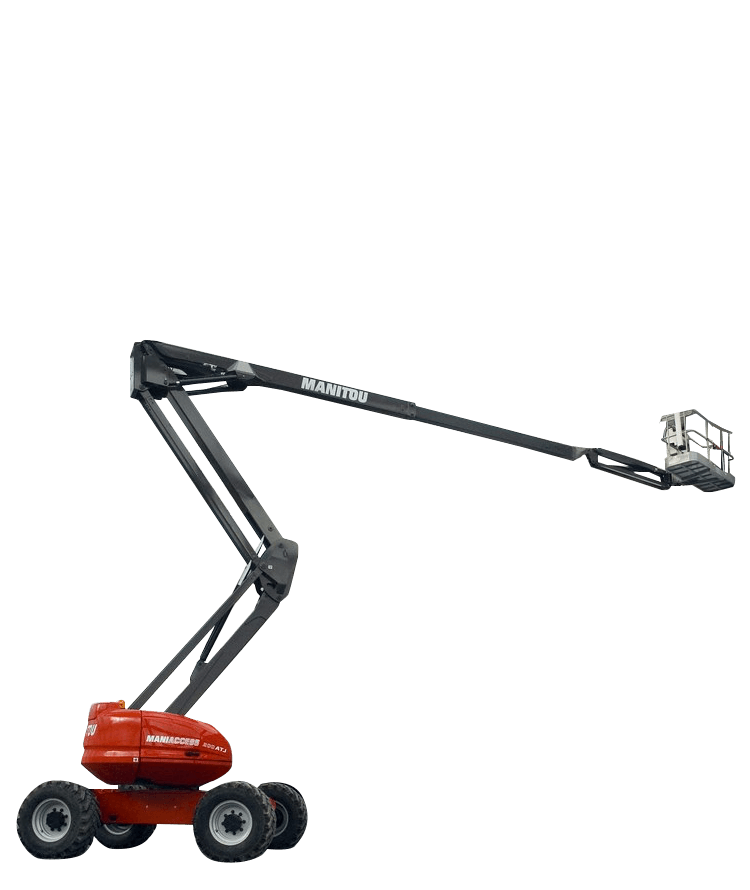

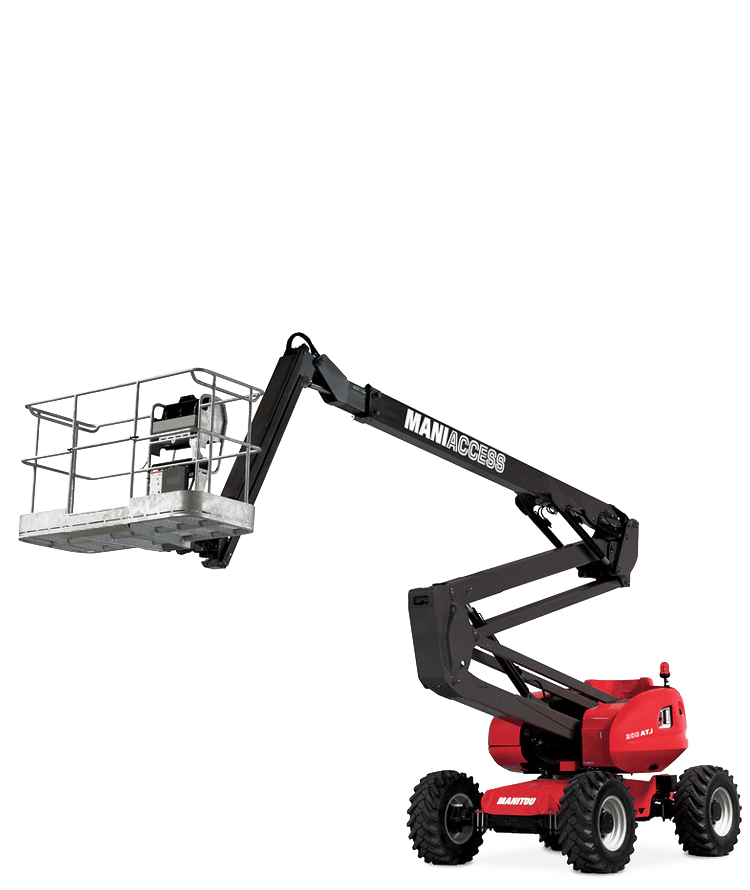

Manitou 200ATJ Diesel Boom Lift

Platform Specifications

Working Height 20.00m
Platform Height 18.00m
Up and Over Height 8.00m
Horizontal Outreach 12.00m
Jib Tilting +70°/-70°
Basket Rotation +90°/-90°
Turret Rotation 355°
Lift Capacity 230kg
Maximum No. of Persons 2
Basket Dimensions 2.10m x 0.80m
1. Overall Width 2.40m
2. Overall Length 8.50m
3. Overall Height 2.70m
4. Overall Length (Folded) 6.30m
5. Overall Height (Folded) 3.15m
6. Turning Radius (Inside) 1.30m
7. Turning Radius (Outside) 3.95m
8. Turning Radius (Basket) 7.45m
9. Ground Clearance 43cm
10. Wheelbase 2.40m
Gradeability 40%
Weight 10,000kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

STANDARD FEATURES

The 200 ATJ articulated platform allows you to carry out your tasks at a working height of 20m with an up and over clearance of 8m.

Up to 230kg can be loaded and its platfrom of 2.1m x 0.8m provides the operator with a large working area.

The platform's ground clearance of 0.43 m combined with its all-terrain capabilities guarantee a high clearance capacity. An incremental hydraulic management system for engine speed was developed so as to reduce the noise level and fuel consumption.

Performance

Whether in lifting capacity or height, engine power, longer battery autonomy or drawbar full, Manitou handling equipment shows it is the fruit of the labours of our various development departments.

4 Wheel Drive & 3 Steering Modes

All Manitou machines that come equipped with 4-wheel drive are true all-terrain vehicles. Combined with a generous ground clearance, they allow you to get out of all manner of sticky manoeuvring situations and keep performance levels high.

Rough Terrain

Manitou's all-terrain machines have extra ground clearance to overcome any obstacles in their path (such as potholes or uneven pavement) Additionally the 4-wheel drive and large tyres provide all the traction you need to move loads over soft or difficult terrain (such as mud, sand, grass, gravel, etc.)

WORKING ENVELOPE

DIMENSIONS
