Diesel Boom Lift
| Working Height | 21.38m |
| Platform Height | 19.38m |
| Horizontal Reach | 12.19m |
| Up and Over Height | 8.38m |
| A. Platform Size | 0.91m x 2.44m |
| B. Width Stowed | 2.44m |
| C. Tailswing | 0m |
| D. Height Stowed | 2.54m |
| E. Transportation Height | 2.79m |
| F. Length Stowed | 9.14m |
| G. Transportation Length | 7.75m |
| H. Wheelbase | 2.44m |
| I. Ground Clearance | 0.33m |
| Rotation (Continuous) | 360° |
| Platform Rotation | 170° |
| Jib Length | 1.68m |
| Jib Range | +65°/-60° |
| Turning Radius (Inside) | 2.21m |
| Turning Radius (Outside) | 5.31m |
| Gradeability | 45% |
| Axle Oscillation | 10.16cm |
| Lift Capacity | 227kg |
| Maximum No. of Persons | 2 |
| Weight | 9,934kg |

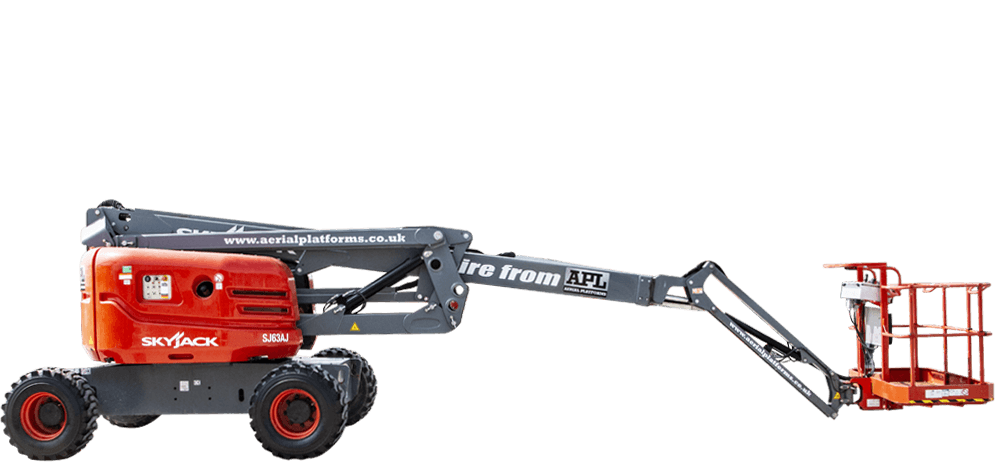

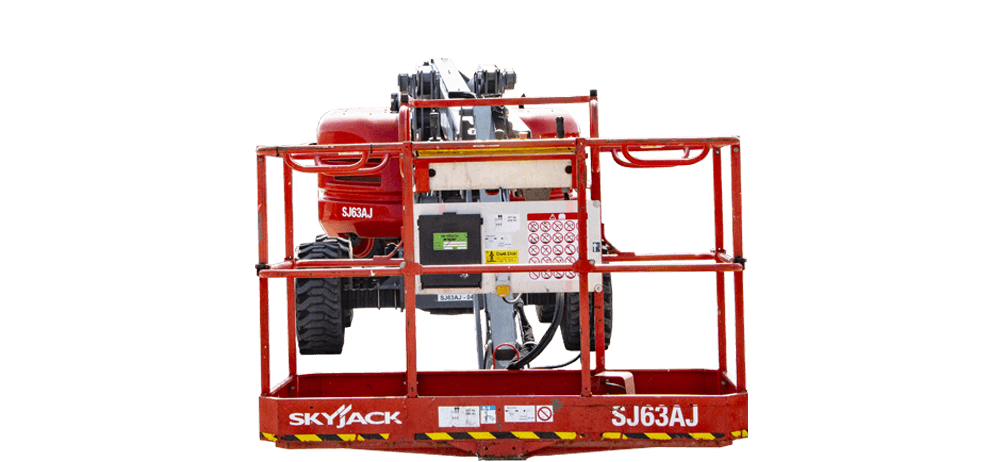

The Skyjack SJ63 AJ is a diesel-powered articulating boom lift with a 21.38-meter working height and 12.19-meter outreach, ideal for versatile access. It supports a 227-kilogram platform capacity and features a 1.68-meter jib with a +65° to -60° range and 170° platform rotation for precise positioning. Its compact design, with a 2.54-meter height and 2.44-meter width, allows easy transport. Equipped with four-wheel drive and 45% gradeability, it performs well on rough terrain. Additional features include zero tailswing and a tight turning radius for enhanced maneuverability. The machine weight is 9,934 kilograms.
Skyjack's SJ63/85 AJ features a boom geometry that allows the operator to lower the main fly boom to ground level to restock on material or supplies, then return to full height at the original working position - without lowering the riser section.
Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach.
The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
This means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for colour coded arrows to determine drive versus joystick direction.

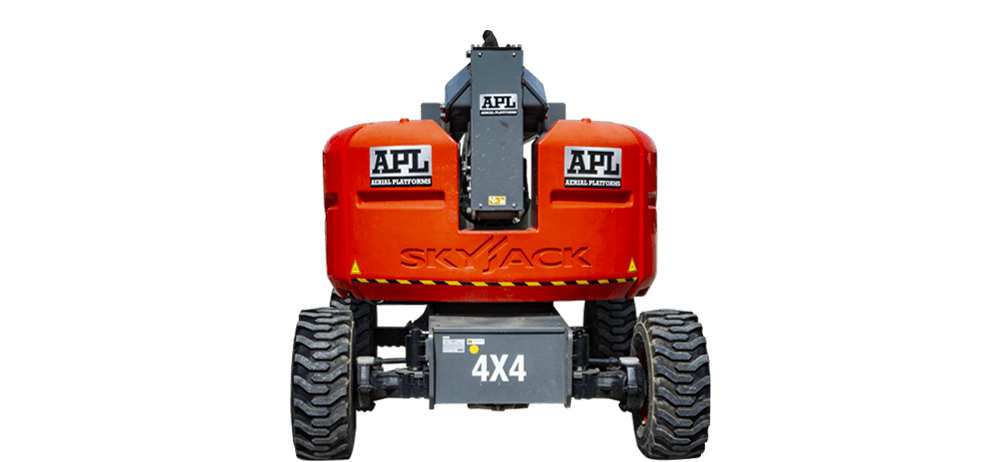

An axle-based drive system with an operator controlled locking differential on the rear axle and limited slip differential on the front axle. This drive system has been proven as durable, low maintenance, and capable of navigating any job site terrain.
