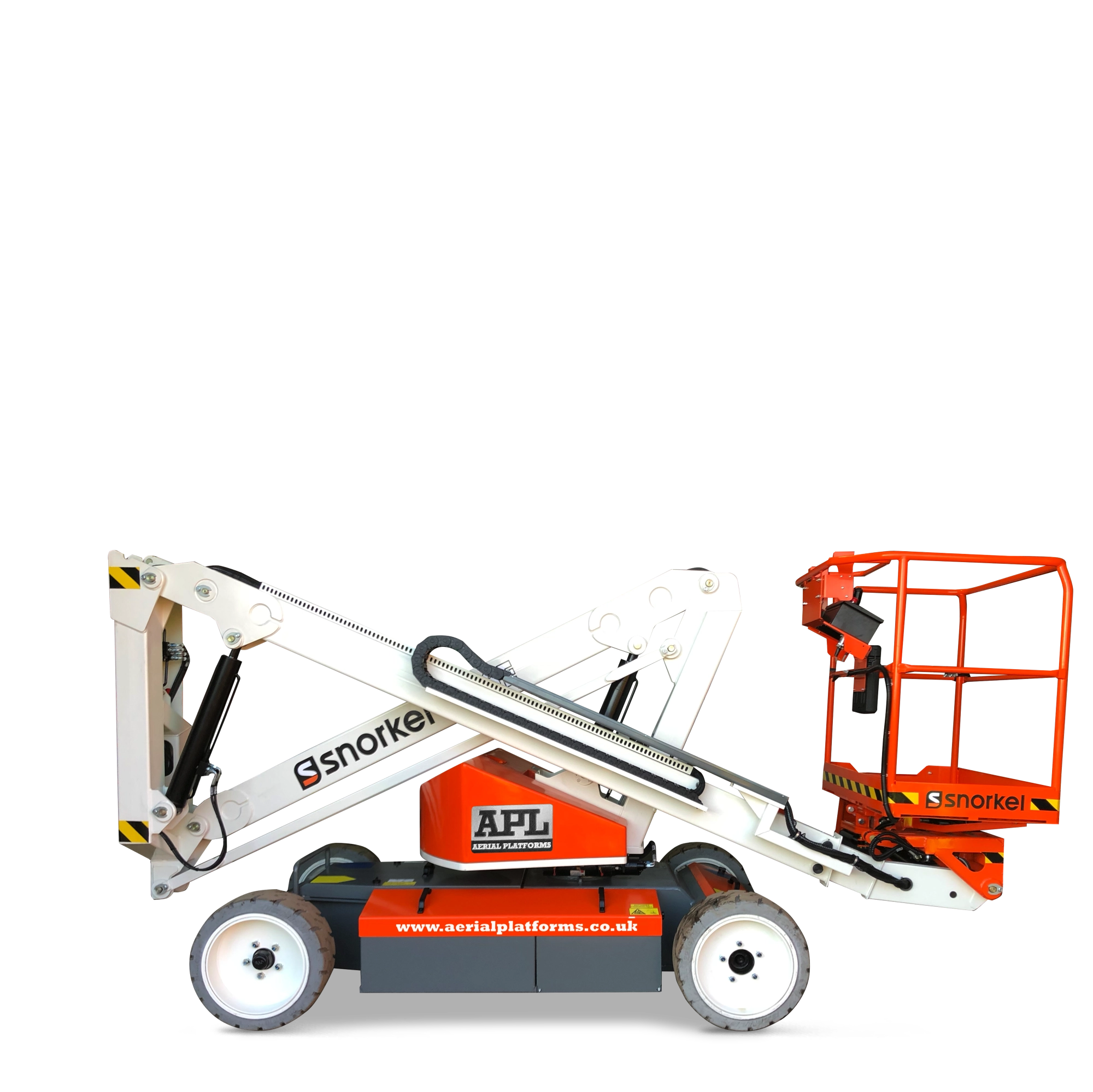

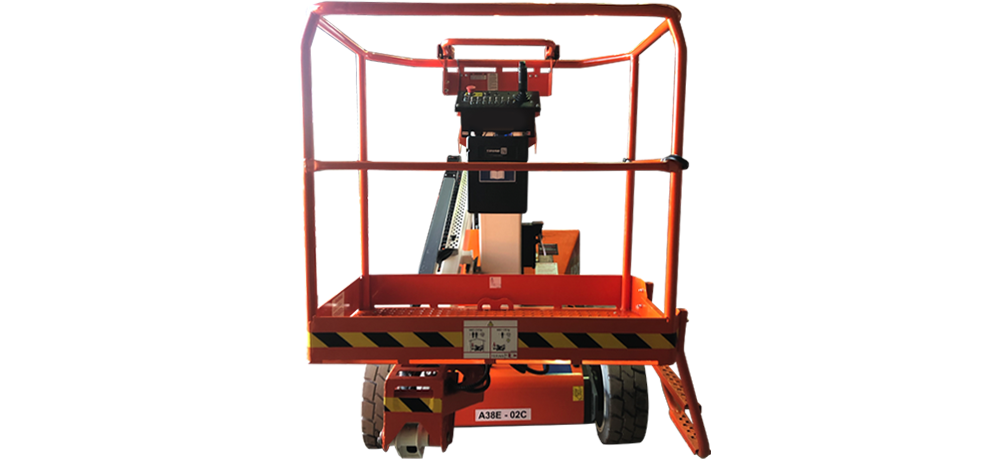

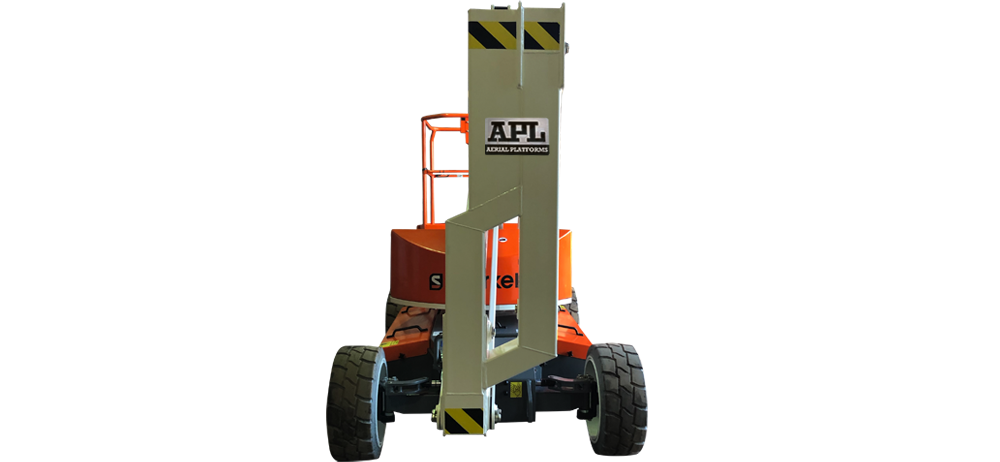

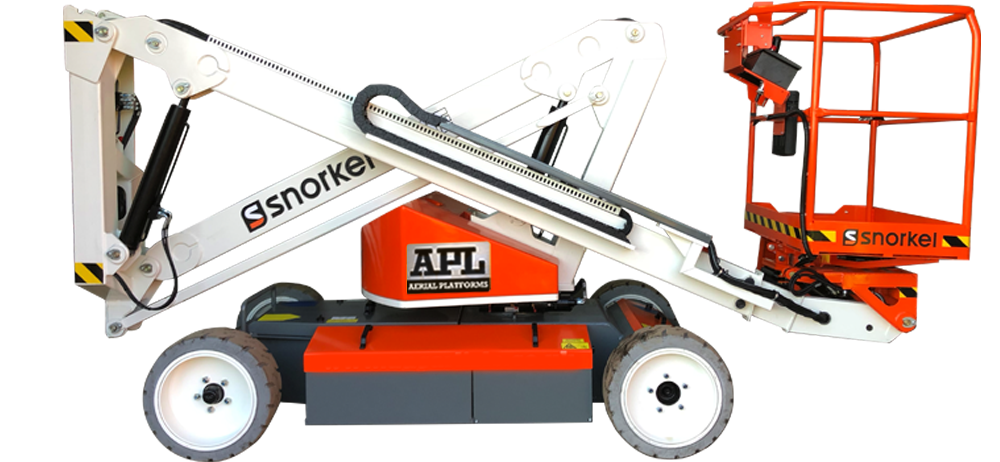

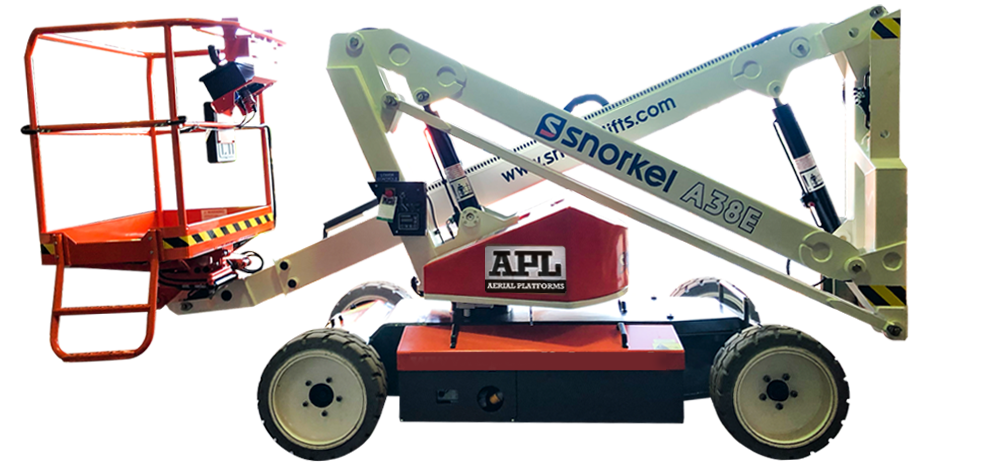

Snorkel A38E Electric Boom Lift

Platform Specifications

Max Working Height 13.50m
Max Platform Height 11.50m
Max Working Outreach 6.10m
Platform Size (E x F) 0.69m x 1.11m
Overall Width (B) 1.50m
Overall Length (C) 4.10m
Height Stowed (D) 2.00m
Ground Clearance 120mm
Lift Capacity 215kg
Max Drive Height Full Height
Max Wind Speed 12.5m/s
Platform Rotation 90° (+45°/-45°)
Turret Rotation (Non-Continuous) 360°
Tailswing (riser boom elevated) 0m
Tailswing (riser boom stowed) 1.4m
Raise/Lower Time 83/68 sec
Gradeability 36%
Inside Turning Radius 1.12m
Outside Turning Radius 2.40m
Weight 3,880kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Basket Rotation
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

STANDARD FEATURES

Compact chassis dimensions of 1.5m x 4.1m for excellent manoeuvrability

Lightweight, durable and reliable

Suitable for indoor and outdoor use

Snorkel Guard™

Simple, mechanical spring-loaded rail mounted above the platform controls, which cuts-out machine operations when pressure is applied.

Manoeuvrable

Ultra-tight inside turning radius of 1.12m allowing the machine to be operated in confined areas.

Versatile

2 person + equipment capacity indoor 1 person + equipment capacity outdoor

WORKING ENVELOPE

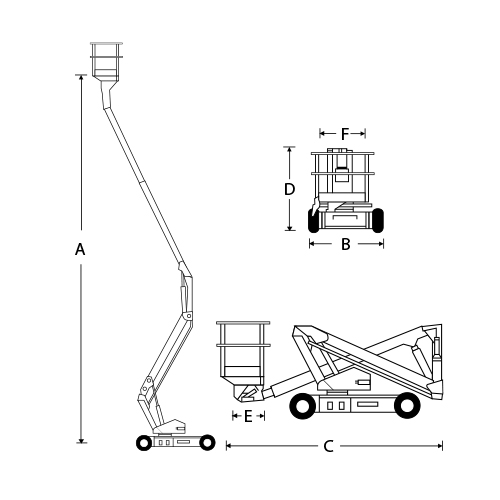

DIMENSIONS

HIRE Snorkel A38E Electric Boom Lift

WITH AERIAL PLATFORMS

We’re recognised as one of the leading privately owned single source MEWP rental companies in the UK, dedicated to making powered access simple.

Our professional team are ready and waiting for you. If you have any questions or thoughts, we’re here to answer them!

0800 085 3709
01942 601 752
info@aerialplatforms.co.uk
Aerial Platforms Ltd
Denebrook Court
Greenfold Way
Leigh
Greater Manchester
WN7 3FZ

*These specifications are a guide only and are subject to change due to manufacturer and supplier availability. APL Aerial Platforms and its suppliers cannot be held liable for any loss, damage or injury sustained through the use of this website to select and specify equipment.
