Dingli JCPT1218RT

Diesel Scissor Lift

Platform Specifications

Max. Working Height (A) 12.00m
Max. Platform Height (B) 10.00m
Overall Length (C) 3.84m
Overall Width (D) 1.76m
Overall Height (Rails Up) (E) 2.59m
Overall Height (Rails Down) (F) 1.82m
Platform Size (Length x Width) 2.88m x 1.52m
Platform Extension Size (G) 1.43m
Maximum Drive Height 10.00m
Wheelbase (H) 2.29m
Turning Radius (Inside/Outside) 2.15m/4.85m
Platform Capacity SWL 454kg
Platform Capacity SWL on Extension 136kg
Max. Occupants (Indoor/Outdoor) 4/2
Gradeability 40%
Travel Speed (Stowed) 5.00km/h / 3.10mph
Up/Down Speed 38/46 secs
Overall Weight 4,300kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

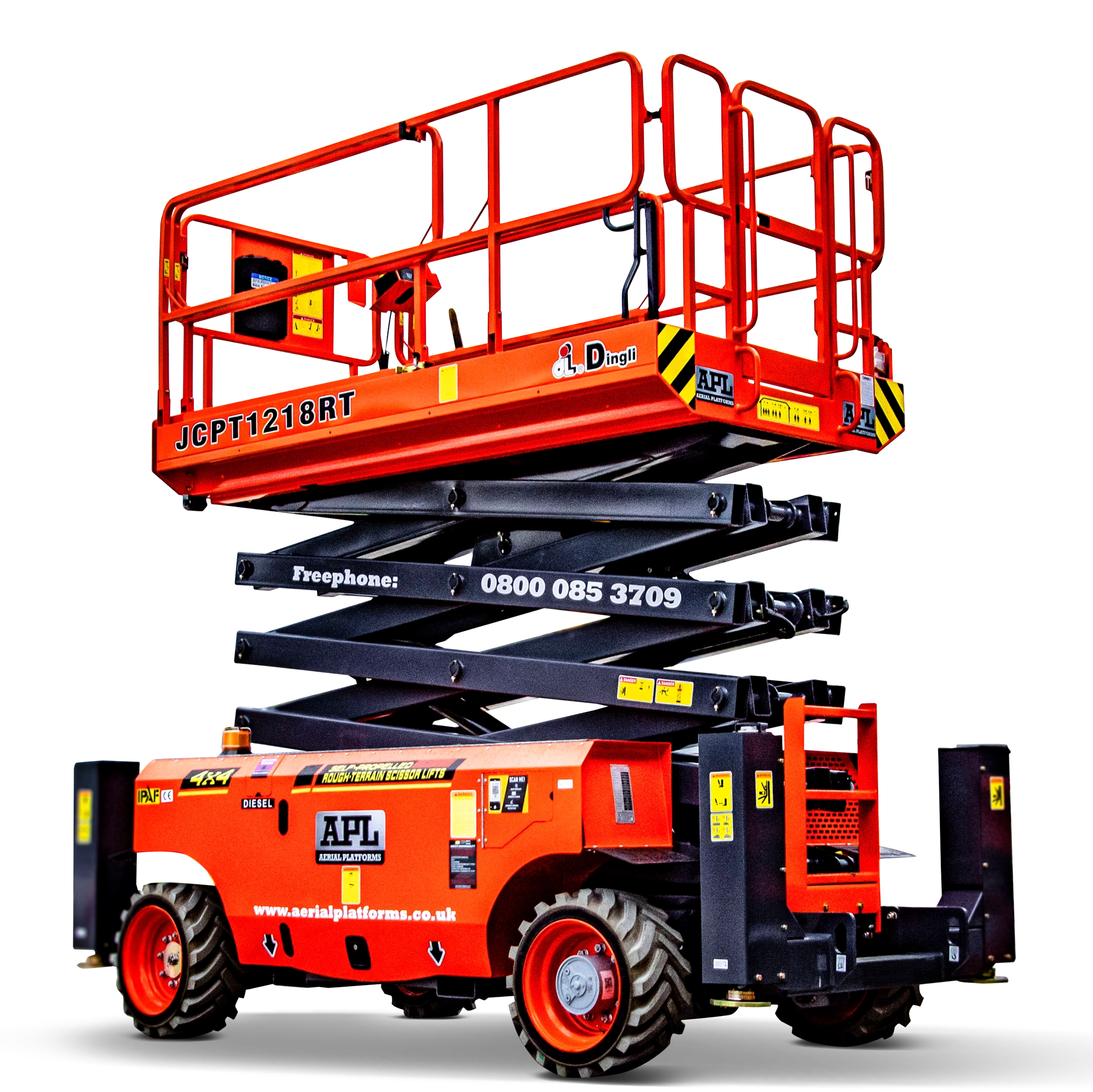

The Dingli JCPT1218RT rough terrain diesel scissor lift is a reliable and versatile MEWP offering a 12.00m working height and a generous 454kg lift capacity.

STANDARD FEATURES

Large 1.43m extension platform - wide working range.

Automatic hydraulic leveling outriggers providing good stability.

Automatic hydraulic leveling outriggers and 40% gradeability capability offering good stability on challenging terrains

Working Height

12.00m

Large platform dimensions

2.88m x 1.52m with an additional 1.43m deck extension.

Suitable for indoors and outdoors

Non-marking rough-terrain tyres.

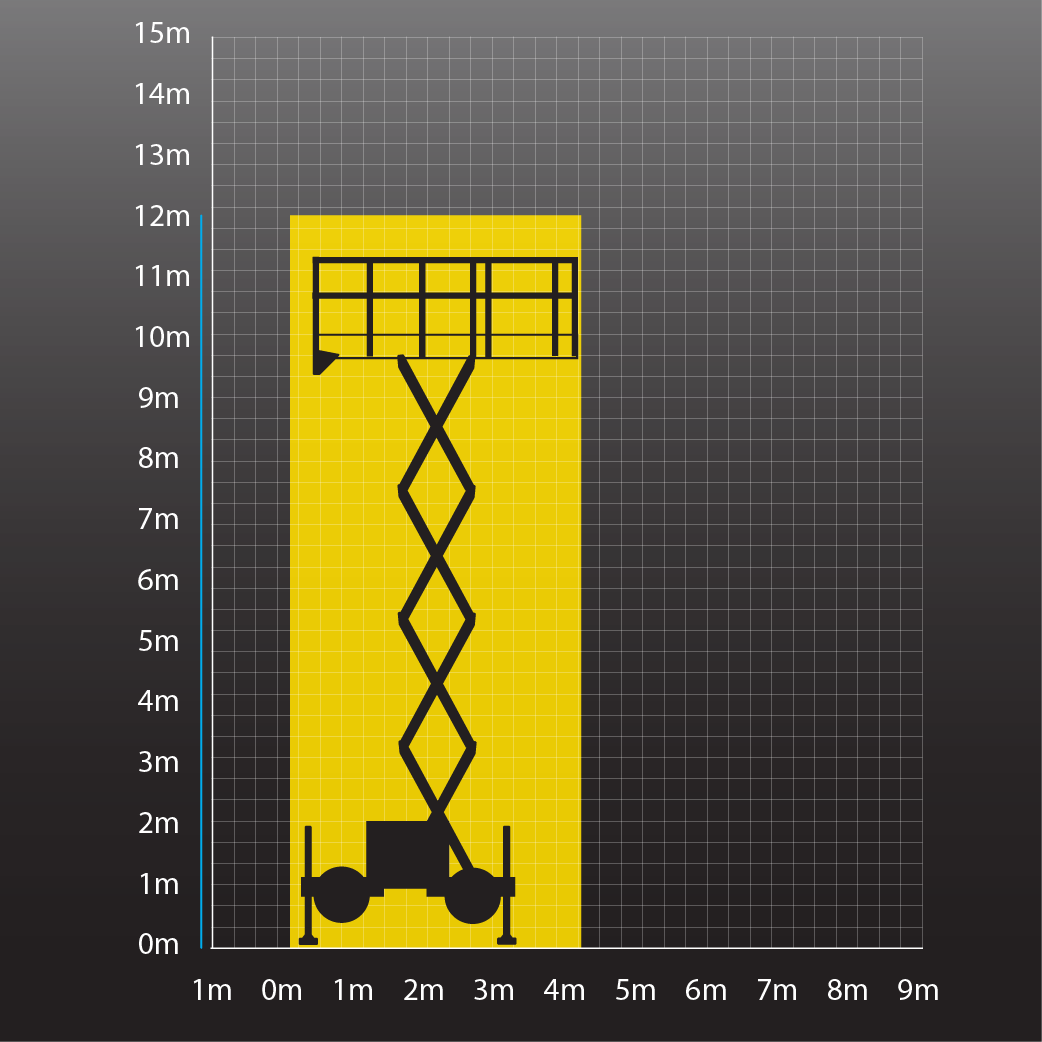

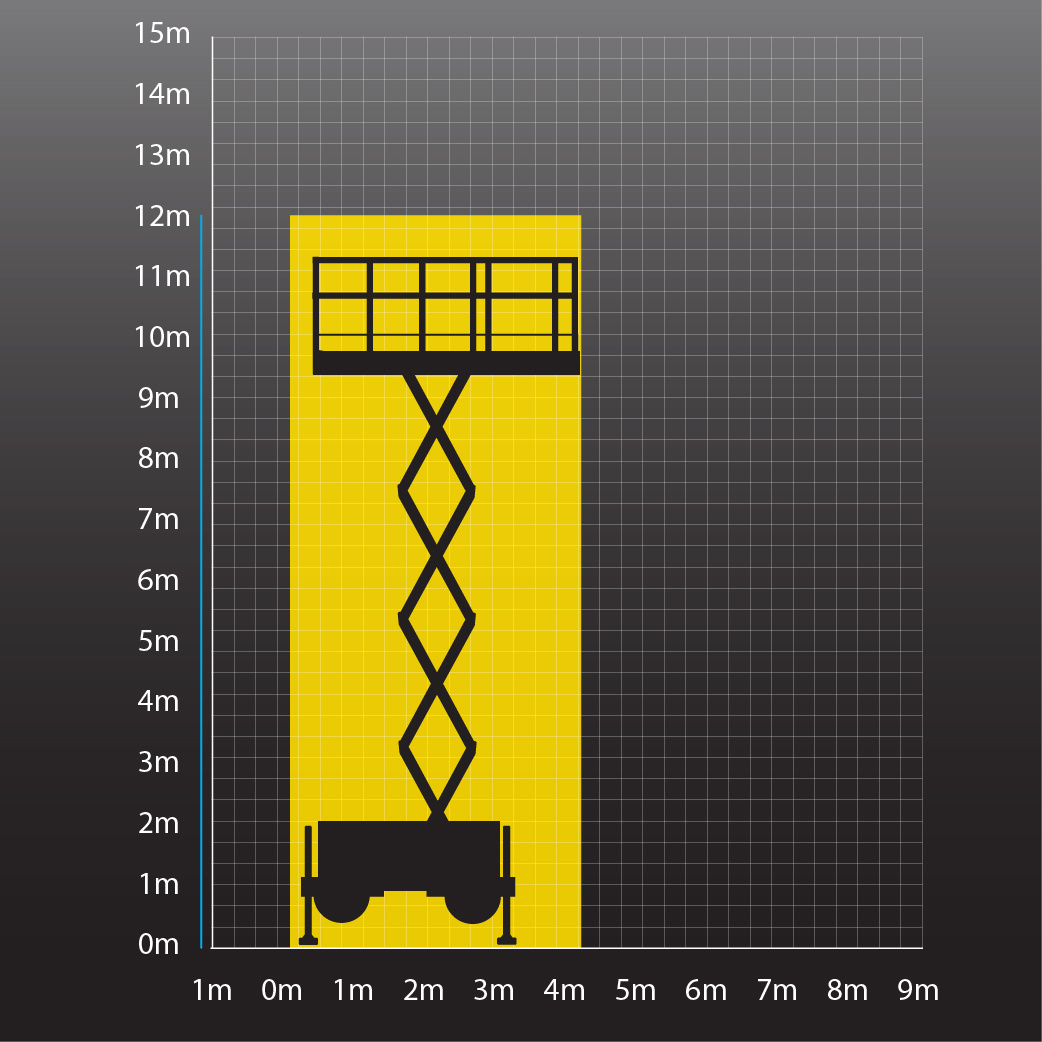

WORKING ENVELOPE

DIMENSIONS
