Diesel Scissor Lift

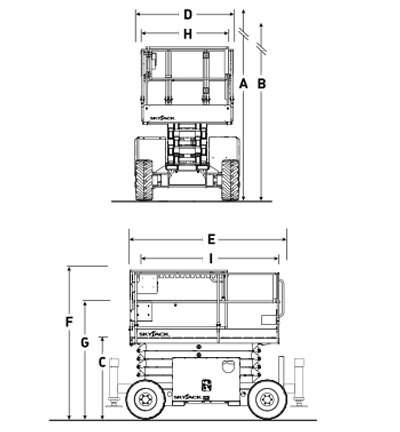

| A. Working Height | 9.90m |
| B. Platform Height | 7.90m |
| C. Lowered Platform Height | 1.23m |
| D. Overall Width | 1.76m |
| E. Overall Length | 3.35m |
| F. Stowed Height (Rails Up) | 2.38m |
| G. Stowed Height (Rails Down) | 1.61m |
| H. Platform Width (Inside Dimension) | 1.42m |
| I. Platform Length (Inside Dimension) | 2.44m |
| Extension Deck | 1.52m |
| Ground Clearance | 0.20m |
| Gradeability | 50% |
| Turning Radius (Inside) | 1.52m |
| Turning Radius (Outside) | 3.96m |
| Lift Capacity | 567kg |
| Maximum No. of Persons | 4 |
| Maximum Drive Height | Full Height |
| Weight | 2,903kg |

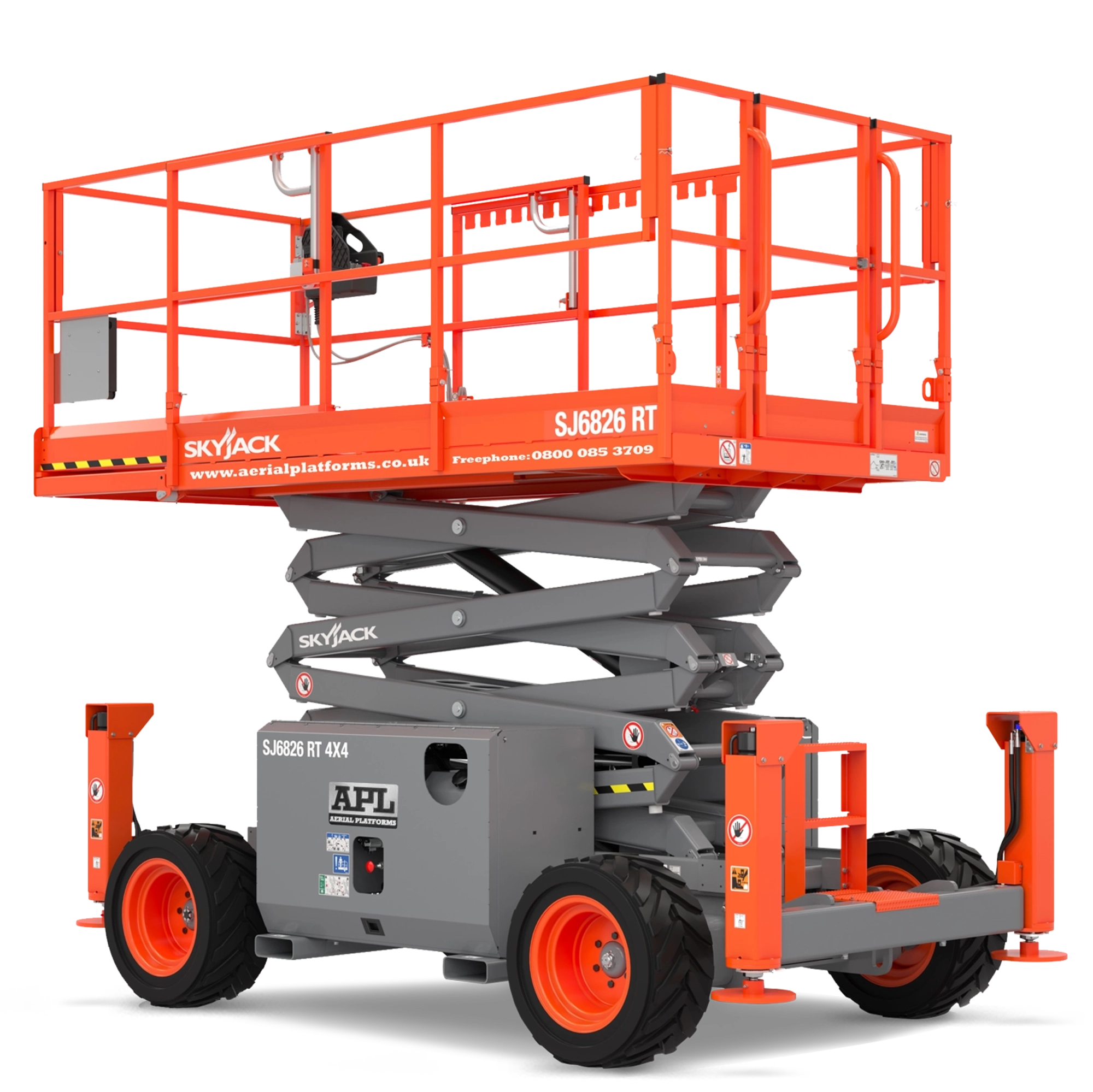

The Skyjack SJ6826RT is a diesel-powered rough terrain scissor lift designed for outdoor construction and maintenance tasks. It offers a maximum working height of 9.90 meters and supports a platform capacity of 567 kilograms, accommodating up to four occupants. The platform measures 2.44 meters in length and 1.42 meters in width, featuring a 1.52-meter extension deck for enhanced reach. With an overall width of 1.76 meters and a stowed height of 2.38 meters (reducible to 1.61 meters with guardrails folded), the SJ6826RT navigates confined spaces effectively. Its 50% gradeability and four-wheel drive system enhance maneuverability on uneven terrains. Equipped with foam-filled rough-terrain tires and self-leveling outriggers, the lift ensures stability and performance on challenging surfaces. Weighing 2,903 kilograms, the SJ6826RT is drivable at full height, optimising productivity during elevated tasks. Additional features include proportional controls for precise operation and a power-to-platform outlet for convenient tool use.
Drivable at full height with 1.52M roll out deck fully extended
Up to 50% gradeability
Independent/auto levelling outriggers
Max working height of 9.90m suitable for a number of external applications
Increased productivity thanks to a 567KG platform capacity allowing for multiple men and their tools to be lifted
Foam-filled rough-terrain tyres as standard allowing for increased manoeuvrability on uneven surfaces.
