Diesel Scissor Lift

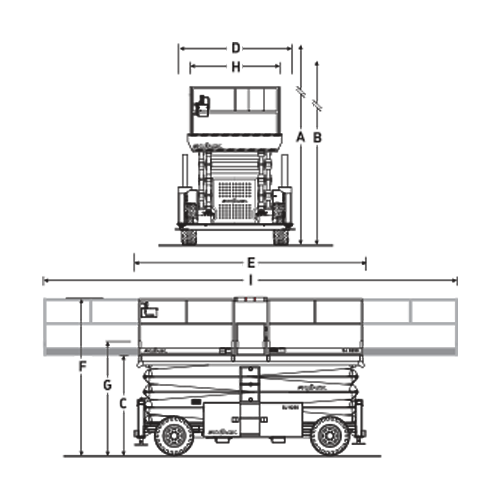

| A. Working Height | 14.50m |
| B. Platform Height | 12.50m |
| C. Lowered Platform Height | 1.70m |
| D. Overall Width | 2.30m |
| E. Overall Length | 4.50m |
| F. Stowed Height (Rails Up) | 2.80m |
| G. Stowed Height (Rails Down) | 2.00m |
| H. Platform Width (Inside Dimension) | 1.90m |
| I. Platform Length Extended (Inside Dimension) | 7.20m |
| Platform Length Stowed (Inside Dimension) | 4.30m |
| Ground Clearance | 0.20m |
| Wheelbase | 3.00m |
| Gradeability | 30% |
| Turning Radius (Inside/Outside) | 4.40m/7.20m |
| Maximum Drive Height | 12.50m |
| Lift Capacity | 681kg |
| Maximum No. of Persons | 5 |
| Weight | 6,715kg |

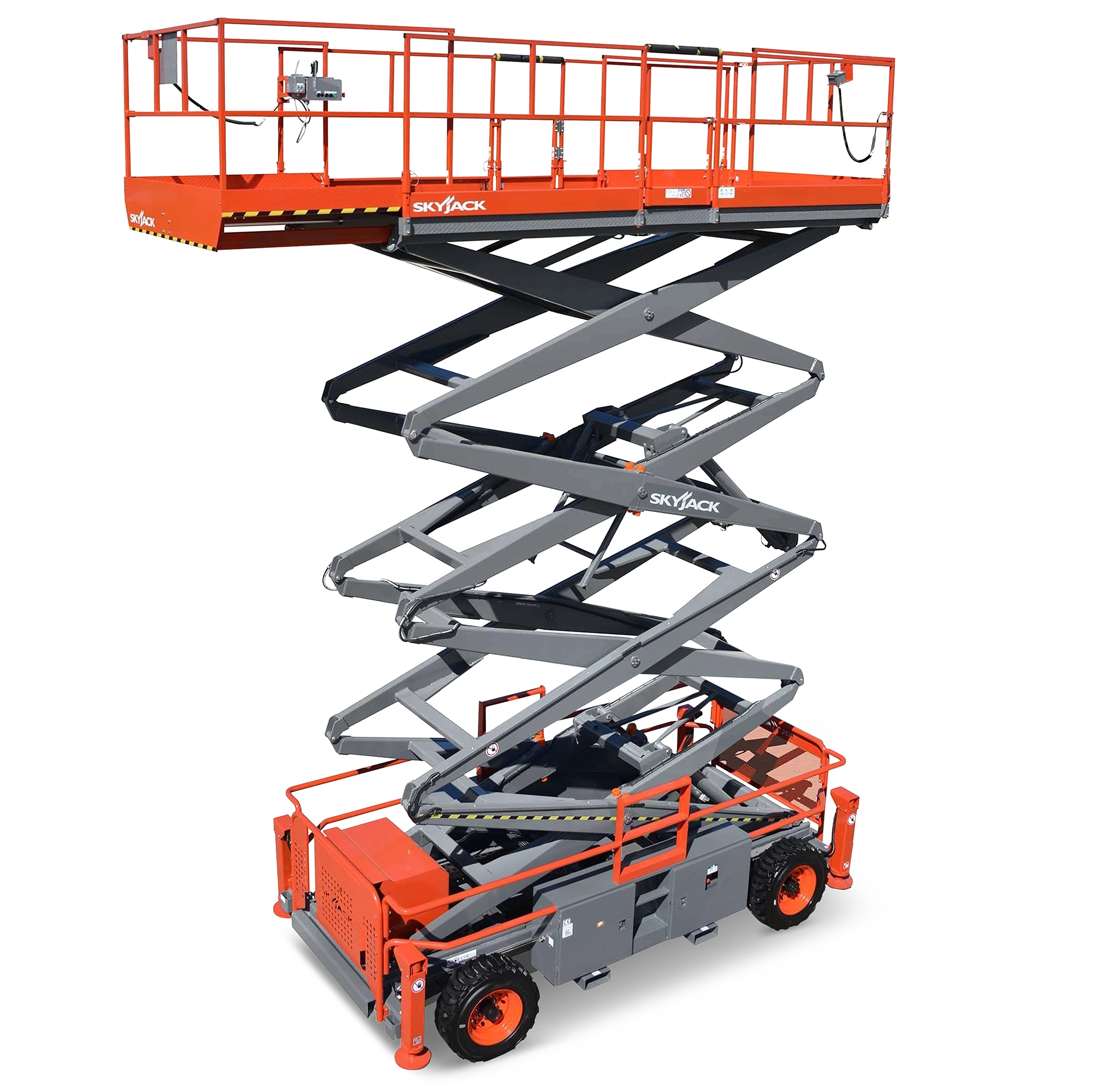

The Skyjack SJ9241RT is a robust diesel-powered rough terrain scissor lift, ideal for heavy-duty applications such as construction and building maintenance. It offers a maximum working height of 14.5 meters and a platform capacity of 681 kilograms, accommodating up to five occupants. The expansive platform measures 4.30 meters in length and 1.90 meters in width, extending to 7.2 meters when both 1.45-meter powered extension decks are deployed, providing ample workspace. Designed for challenging terrains, it features a 4-wheel drive system with "no-spin" and limited slip differentials, ensuring excellent maneuverability with a gradeability of 30%. Additional specifications include a wheelbase of 3.0 meters, ground clearance of 0.20 meters, and turning radii of 4.4 meters (inside) and 7.2 meters (outside). The SJ9241RT has a weight of 6,715 kilograms and dimensions of 4.5 meters in length, 2.3 meters in width, and a stowed height of 2.8 meters (rails up).
Large 7.2m total working platform length
Independent/auto-levelling outriggers
Dual 1.5m powered extension decks for increased mobility whilst elevated.
Benefit from a 681kg lift capacity allowing a maximum of 5 people to work simultaneously on the platform
7.2m (L) x 1.9m (W) platform dimensions with both 1.5m deck extensions are extended
Robust axle based 4WD system with "no spin" and limited slip differentials delivering excellent job site terrainability
