Dingli JCPT0607DCS

Specifications

Working Height (A)

5.60m

Platform Height (B)

3.60m

Overall Length (C)

1.44m

Overall Width (D)

0.76m

Overall Height (Rails Up) (E)

1.67m

Overall Height (Rails Down) (F)

1.52m

Platform Size (Length x Width)

1.29m x 0.70m

Extension Deck Size

0.60m

Ground Clearance

0.06m

Wheelbase (H)

1.05m

Lift Capacity

240kg

Lift Capacity on Extension

100kg

Max. Occupants

2

Gradeability

25%

Turning Radius (inside/outside)

0.40m/1.55m

Working Slope

1.5°/3°

Up/Down Speed

32/27 seconds

Weight

880kg

Battery

12V/85Ah

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Power-To-Platform

Power-To-Platform

Has power to platform

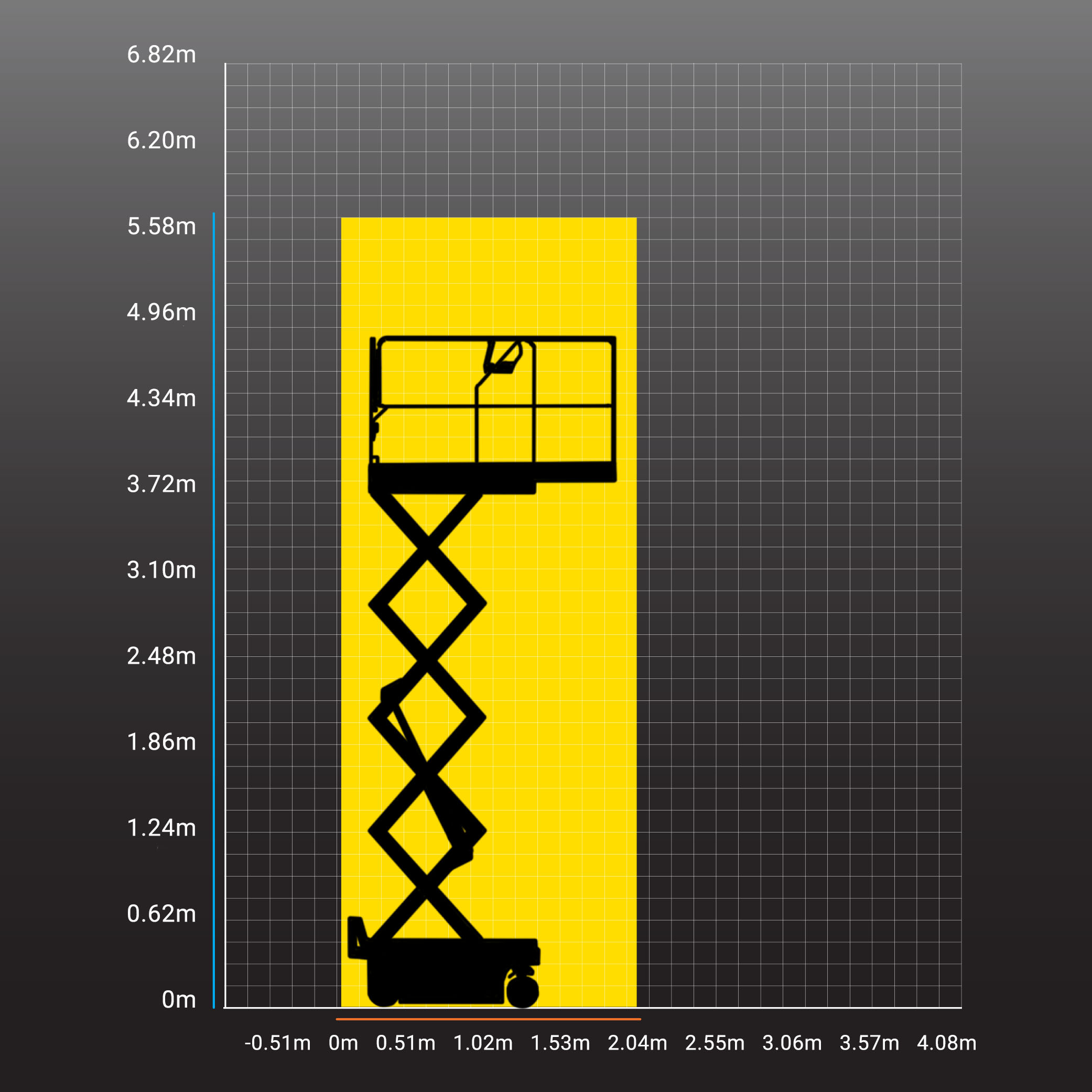

Working envelope

Working envelope

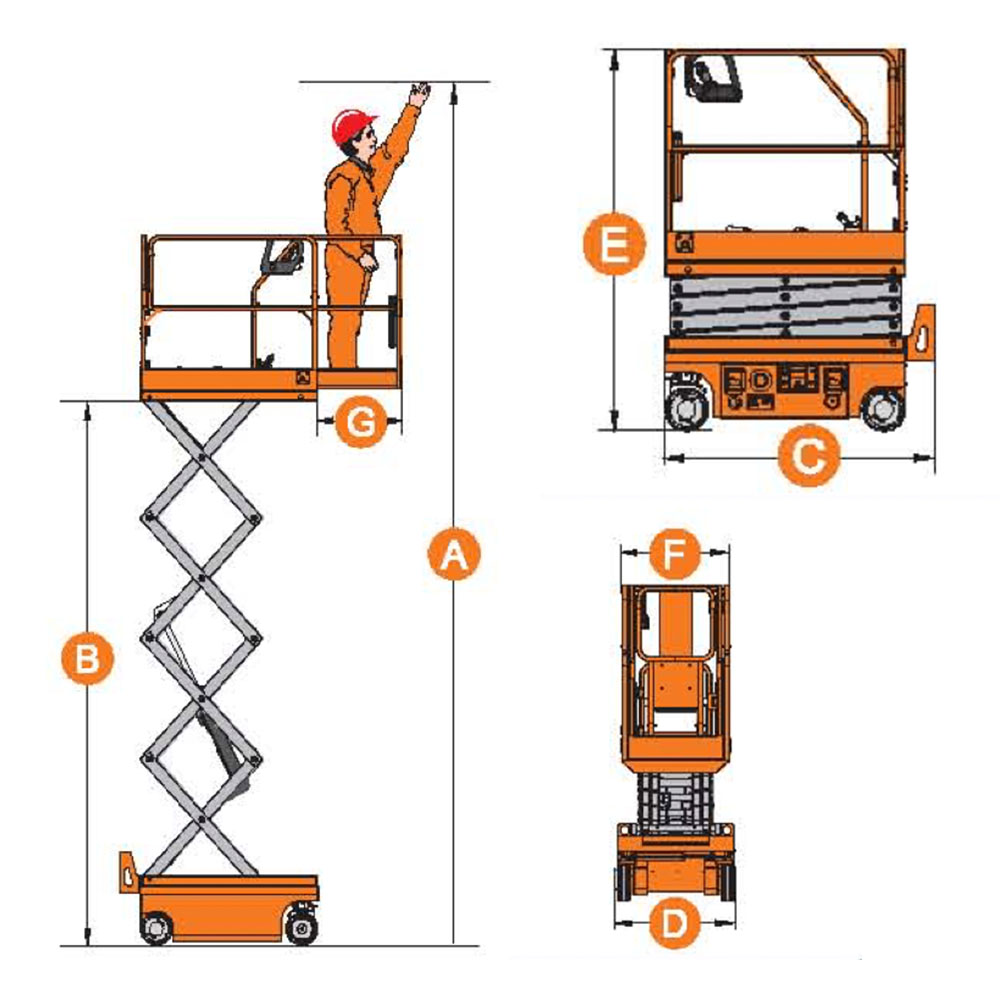

Dimension drawing

Dimension drawing

MACHINE INFORMATION

The Dingli JCPT0607DCS is a compact, electric mini scissor lift built for tight spaces. It reaches up to around 5.6–5.9 meters in working height and weighs about 880 kg. It fits easily through standard doorways and even operates from elevators, making it ideal for indoor work like warehouses or retail. Its platform holds up to 240 kg, and it can be driven at full height. Safety features such as automatic pothole protection, tilt alarms, and stabilization sensors are built in, offering both convenience and efficiency.

STANDARD FEATURES

Compact design for small spaces

Working height of 5.60 metres and a lift capacity of 240kg

The Dingli JCPT0607DCS has a platform size of 1.29m × 0.70m

User-Friendly Control & Operation

Featuring simple and intuitive controls, this mini scissor lift can be operated with ease by a single individual, enhancing productivity in both small-scale and large-scale operations.

Easy Transportation & Versatility

With its lightweight build, the JCPT0607DCS can be easily transported by a single vehicle, and multiple units can be moved simultaneously, maximizing efficiency for projects requiring several lifts.

User-Friendly Control & Operation

Powered by a 12V battery, the lift operates silently and without emissions, ensuring minimal environmental impact while maintaining optimal performance for a wide range of tasks.
