Electric Scissor Lift

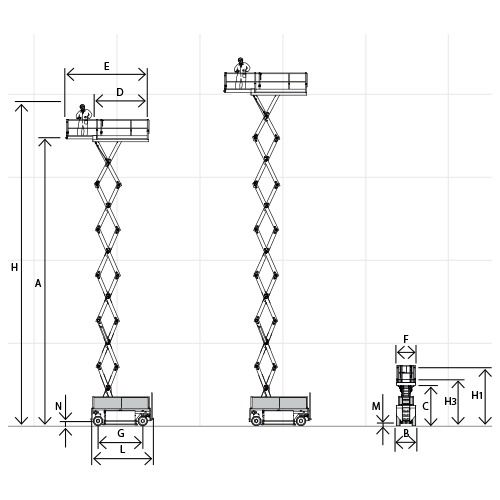

| H. Working Height | 22.00m |
| A. Platform Height | 20.00m |
| DxF. Platform Length x Width (Deck Retracted) | 4.30m x 1.19m |
| ExF. Platform Length x Width (Deck Extended) | 6.10m x 1.19m |
| H1. Height Stowed (Rails Up) | 3.82m |
| H3. Height Stowed (Rails Down) | 2.99m |
| LxB. Machine Length x Base | 4.72m x 1.25m |
| G. Wheelbase | 3.18m |
| M. Ground Clearance (Stowed) | 20mm |
| Lift Capacity | 600kg |
| Gradeability | 25% |
| Weight | 12,350kg |

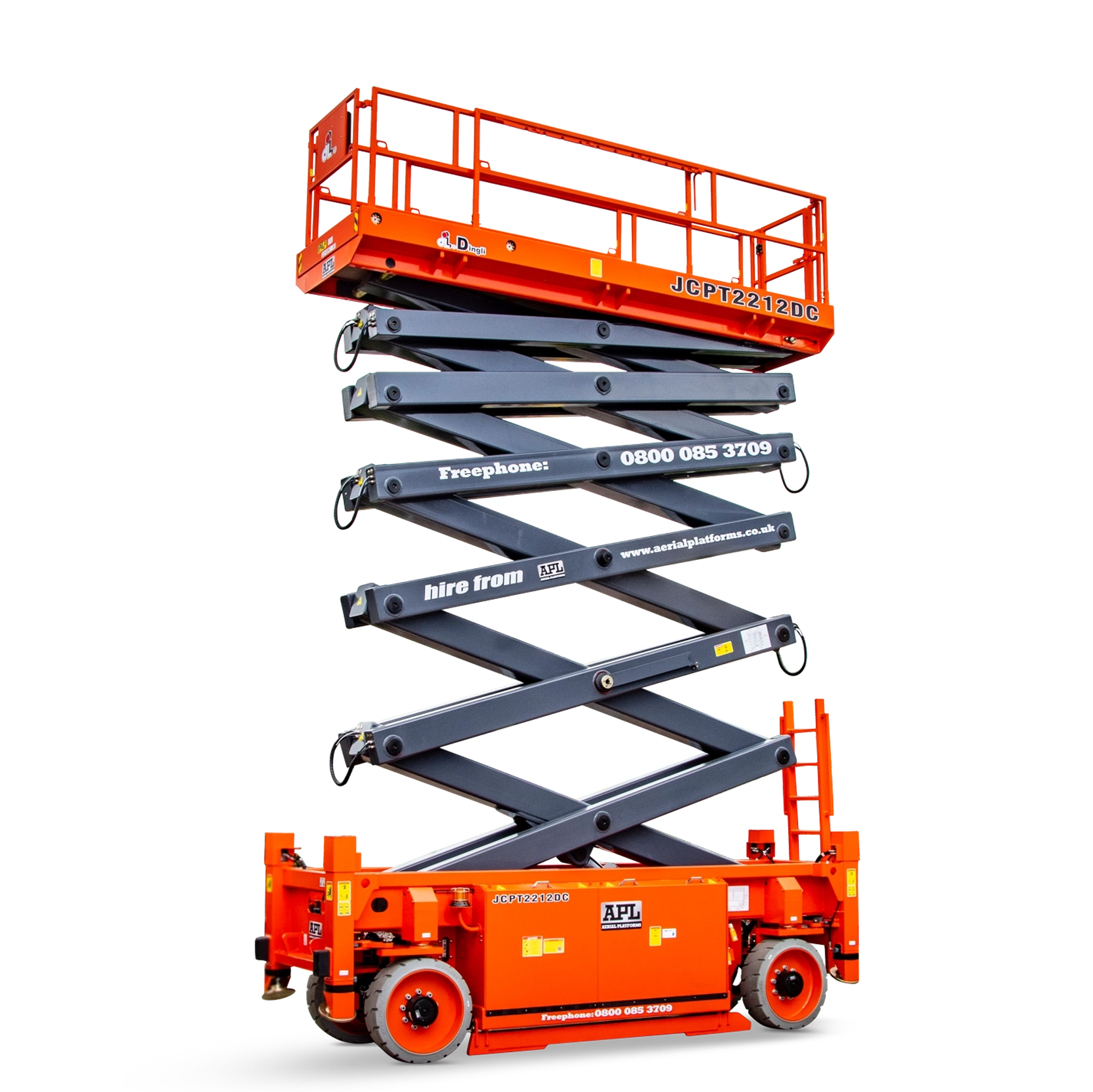

The Dingli JCPT2212DC is an electric scissor lift designed for high-reaching tasks, offering a maximum working height of 22 meters and a platform capacity of 600 kilograms, suitable for two occupants plus equipment. The platform measures 4.3 meters in length and 1.19 meters in width, extending to 6.1 meters with a 1.8-meter extension deck. Despite its substantial reach, the lift maintains a compact width of 1.25 meters, facilitating access through narrow spaces. Equipped with a 48V/630Ah high-capacity battery pack, it ensures long operational endurance with zero emissions, making it suitable for environmentally sensitive areas. The lift features four-wheel drive and steering, providing excellent rough-terrain performance, and includes an automatic leveling system for enhanced stability on uneven surfaces. Additional features comprise proportional controls for smooth operation and an onboard 230V power supply on the platform to power tools.
Drivable at the full height of 22.00m
Platform size of 4.30m x 1.19m with an added 1.8m extending deck
Proportional controls and intuitive control box design for easy operation
Benefit from a lift capacity of 600kg across the whole of the deck, suitable for 2 persons + 440kg. Even on the extending deck you can benefit from this large lift capacity.
On-board 230V power supply on platform to power tools
Proportional controls and intuitive control box design for easy operation
