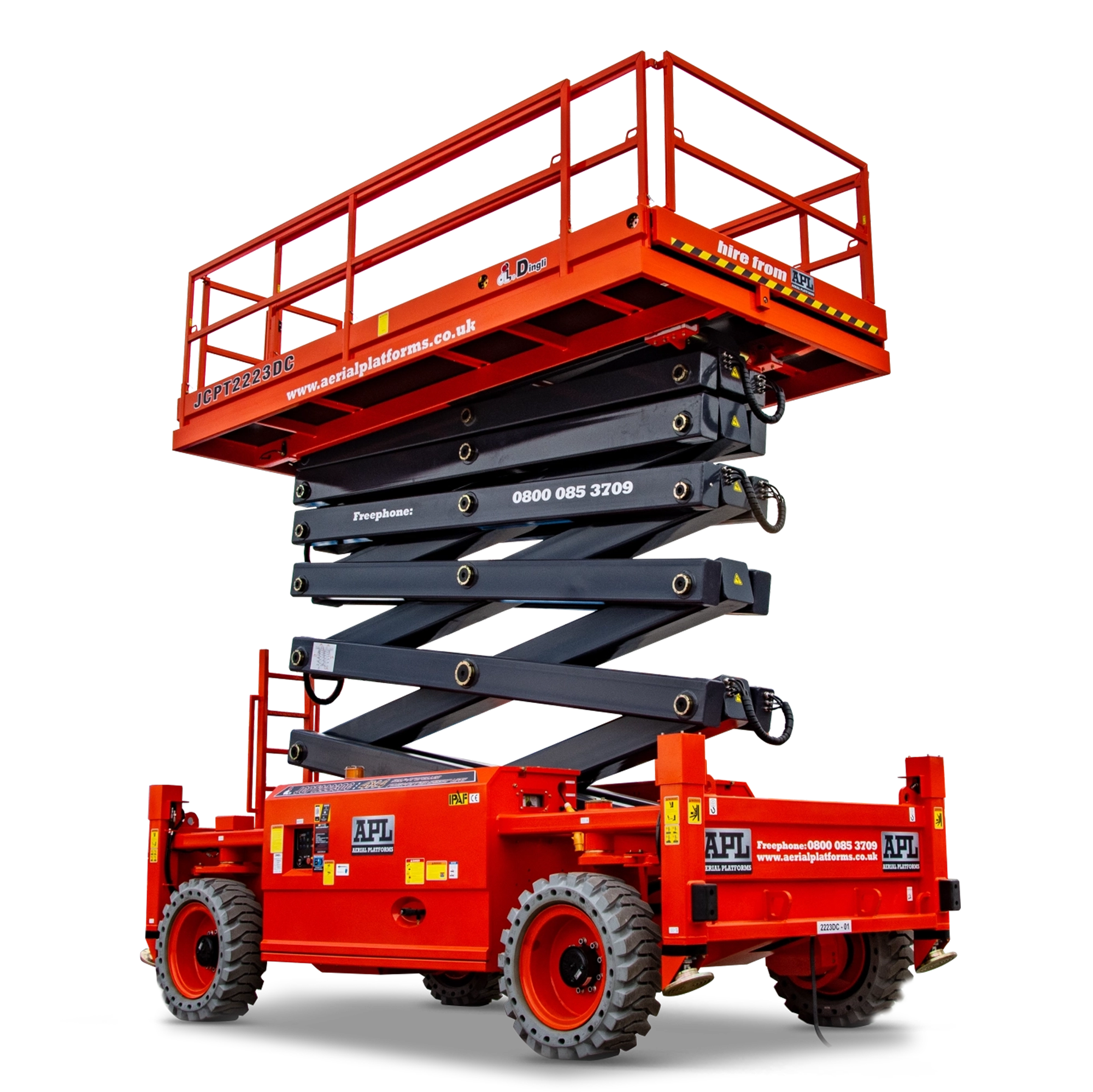

Dingli JCPT2223DC
Dingli JCPT2223DC
Dingli JCPT2223DC
Dingli JCPT2223DC
Dingli JCPT2223DC
Dingli JCPT2223DC
Right Arrow
Left Arrow
ENQUIRE NOW Call hire desk 0800 085 3709
Google review

Dingli JCPT2223DC

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height (A)

22.00m

Max. Platform Height (B)

20.00m

Overall Length (C)

4.95m

Overall Width (D)

2.46m

Overall Height (Rails Up) (E)

3.86m

Overall Height (Rails Down) (F)

3.00m

Platform Size(Length×Width)

4.59m×2.25m

Platform Extension Size (G)

2.70m

Wheelbase (H)

3.30m

Turning Radius(Inside/Outside)

1.25m/3.40m

Platform Capacity SWL

750kg

Platform Capacity SWL on Extension

750kg

Max. Occupants

4

Gradeability

30%

Travel Speed(Stowed)

5.0km/h / 3.10mph

Up/Down Speed

90/75sec

Weight

13,400kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Jack Legs

Jack Legs

Stability on uneven ground

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

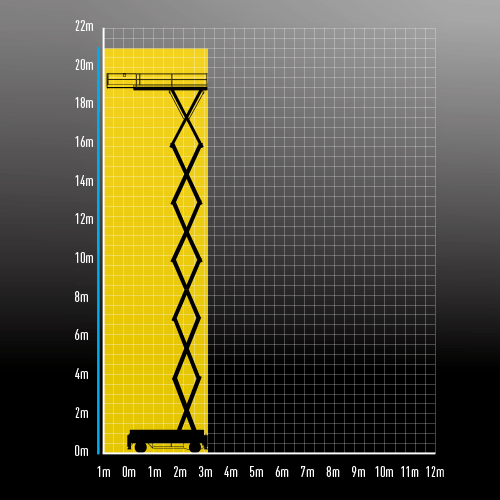

Working envelope

Working envelope

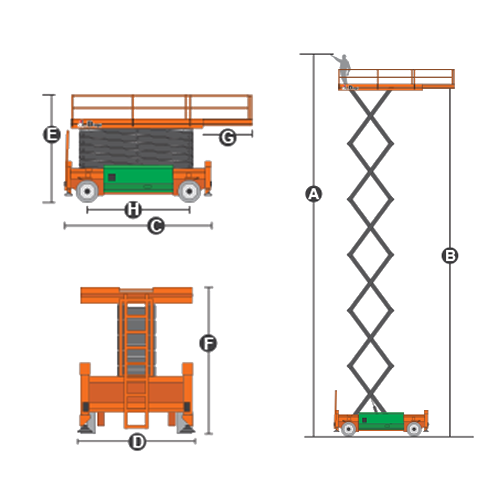

Dimension drawing

Dimension drawing

MACHINE INFORMATION

​The Dingli JCPT2223DC is an electric rough terrain scissor lift offering a maximum working height of 22 meters and a platform capacity of 750 kilograms, accommodating up to four occupants. The platform measures 4.59 meters in length and 2.25 meters in width, extending by an additional 2.7 meters two-way extension deck, providing ample workspace. Equipped with four-wheel drive and four-wheel steering, it ensures excellent maneuverability and stability on challenging terrains. The lift features a gradeability of 30%, rough terrain tires suitable for outdoor use, and is powered by a high-capacity 48V/630Ah battery pack, delivering long operational endurance with zero emissions.

STANDARD FEATURES

Automatic One-Way Platform Extension Deck of 2.70m

Four-Wheel Drive and Four-Wheel Steering with automatic braking system

Rough terrain tyres for outdoor use

Power Source

Electric

Working Height

22.00m

Power Source

750kg
