Dingli JCPT3214DC

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height (A)

32.00m

Max. Platform Height (B)

30.00m

Overall Length (C)

6.41m

Overall Width (D)

1.40m

Overall Height (Rails Up) (E)

4.16m

Overall Height (Rails Down) (F)

3.17m

Platform Size(Length×Width)

5.85m×1.20m

Platform Extension Size (G)

1.90m

Wheelbase (H)

4.87m

Turning Radius(Inside/Outside)

2.6m/3.50m

Platform Capacity SWL

750kg

Platform Capacity SWL on Extension

750kg

Max. Occupants

2

Gradeability

30%

Travel Speed(Stowed)

1.5km/h / 0.93mph

Up/Down Speed

160/105sec

Overall Weight

22,200kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Battery Powered

Battery Powered

Emission-free electric power

Jack Legs

Jack Legs

Stability on uneven ground

Non Marking Tyres

Non Marking Tyres

Indoor and delicate surface use

Power-To-Platform

Power-To-Platform

Has power to platform

Working envelope

Working envelope

Dimension drawing

Dimension drawing

MACHINE INFORMATION

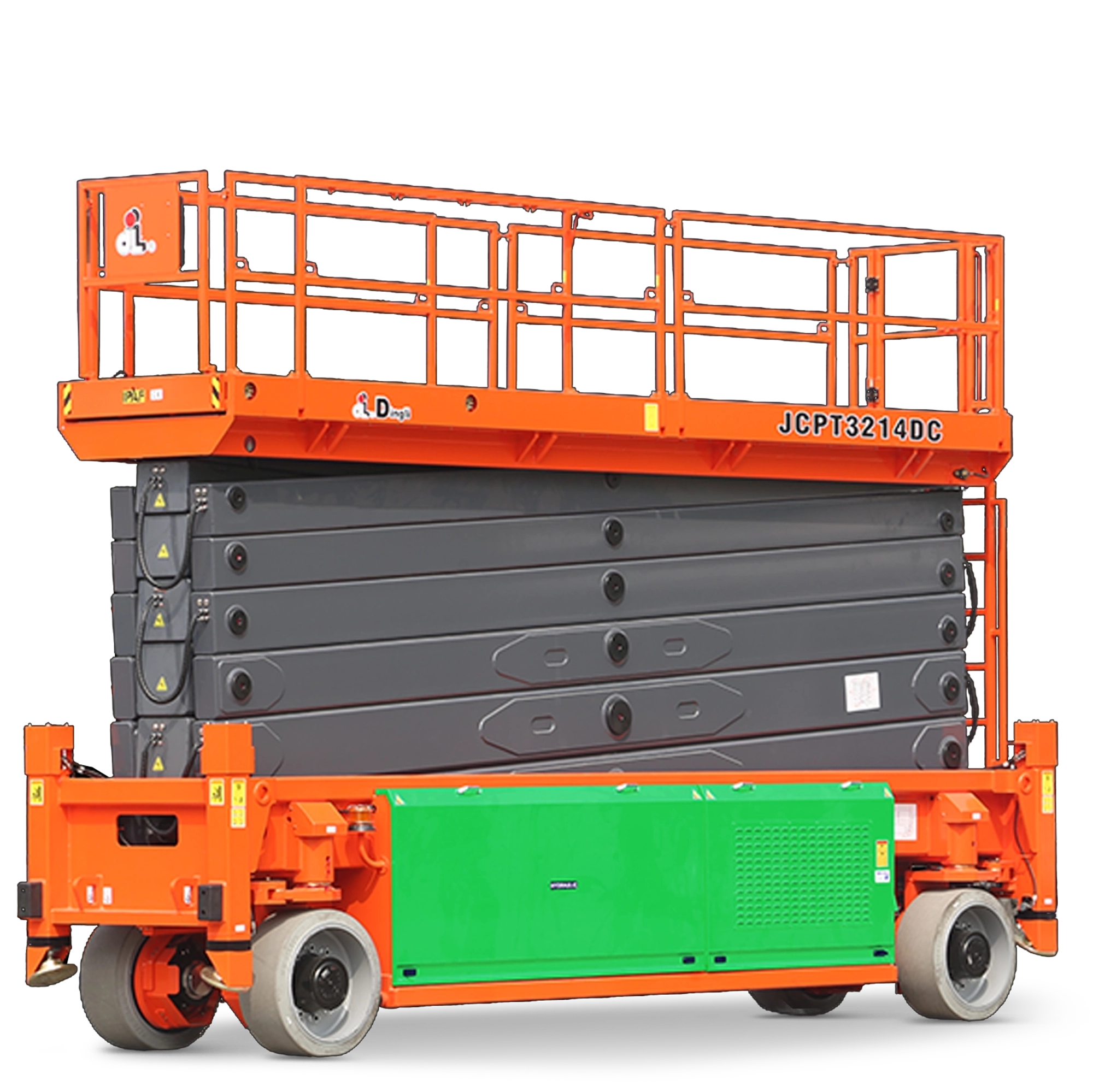

The Dingli JCPT3214DC offers a working height of 32m, lift capacity of 750kg and a deck length of 5.85m (with a 1.9m deck extension). It also measures just 1.40m wide making it ideal for working in tight spaces on internal warehousing and high level racking projects. This 32m machine also utilises a high capacity Lithium battery, not only offering faster charge times and extended use, but also making it suitable for working in low emission areas such as warehouses, logistic hubs and airports. Weighing 22,200kg, the JCPT3214DC has 30% gradeability and comes equipped with tilt and motion alarms allowing it to be used outdoors as well. This machine's impressive specification and versatility, paired with our ability to offer national delivery, make it one of our most highly requested electric scissors.

STANDARD FEATURES

Proportional Joystick Controls with Self-Locking Gates and One-Way Platform Extension Deck of 1.90m

Flashing LED Beacon, Foldable Guard Rails and Lanyard attachment points

Automatic leveling hydraulic outriggers

Power Source

Electric

Machine Width

1.40m

Power Source

750kg
