Genie GS-3232 Electric Scissor Lift - Aerial Platforms Ltd

Genie GS-3232

Electric Scissor Lift

Platform Specifications

Working Height 11.75m
A. Platform Height 9.75m
B. Platform Height Stowed 1.29m
C. Platform Length (Outside) 2.26m
Platform Length (Extended) 3.18m
Deck Extension 0.91m
D. Platform Width (Outside) 0.81m
Guardrail Height 1.10m
Toeboard Height 0.15m
E. Height Stowed (Rails Unfolded) 2.39m
Height Stowed (Rails Folded) 2.03m
Length Stowed 2.44m
F. Length (Extended) 3.33m
G Width 0.81m
H. Wheelbase 1.85m
I. Ground Clearance (Centre) 0.09m
J. Ground Clearance (With Pothole Guards Deployed) 0.02m
Lift Capacity 227kg
Drive Height 6.71m
Gradeability 25%
Turning Radius (Inside) 0m
Turning Radius (Outside) 2.13m
Weight 2,352kg
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres
Power-To-Platform
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

​The Genie GS-3232 is an electric scissor lift designed for tasks requiring a maximum working height of 11.75 meters and a platform capacity of 227 kilograms. With a compact width of 0.81 meters and a stowed length of 2.44 meters, it offers excellent maneuverability in confined spaces. The platform features a 0.91-meter roll-out extension, providing additional reach. Equipped with automatic leveling hydraulic outriggers, the GS-3232 can stabilize on slopes up to 5 degrees. Its zero-emission electric operation ensures suitability for indoor environments, especially in noise-sensitive areas. Additional features include folding guardrails for reduced stowed height and non-marking tires to protect flooring surfaces.

STANDARD FEATURES

Folding rails with half-height swing gate come standard

Automatic levelling hydraulic outrigger system levels machine on slopes up to 5˚

Large platform workspace with 0.91 m roll-out platform extension

Quiet, Emission-free operation

The quiet, zero-emission Genie® GS™-3232 slab scissor lift is ideal for operation in sound-sensitive environments

Enhanced productivity

Enhanced productivity by providing exceptional positive traction, speed, and gradeability

User-Friendly

User-friendly Smart Link Proportional Control System

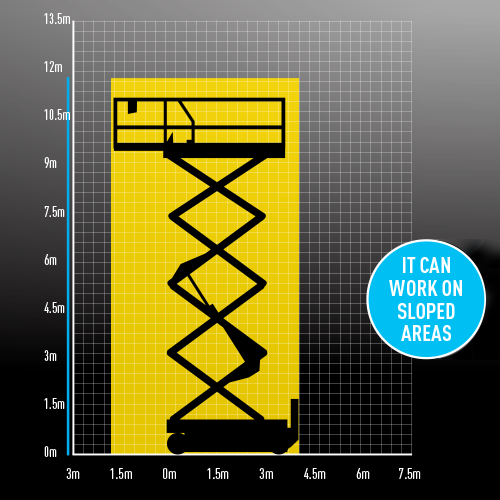

WORKING ENVELOPE

DIMENSIONS
