Electric Scissor Lift

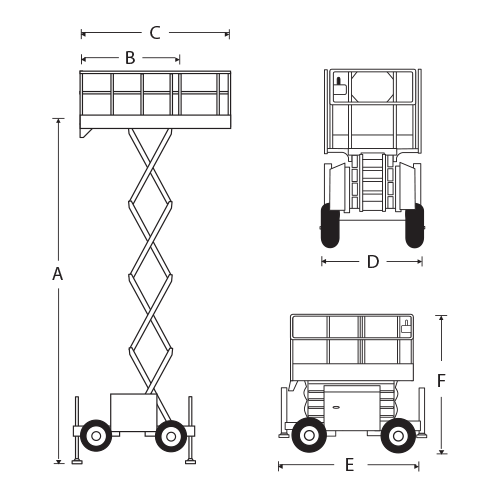

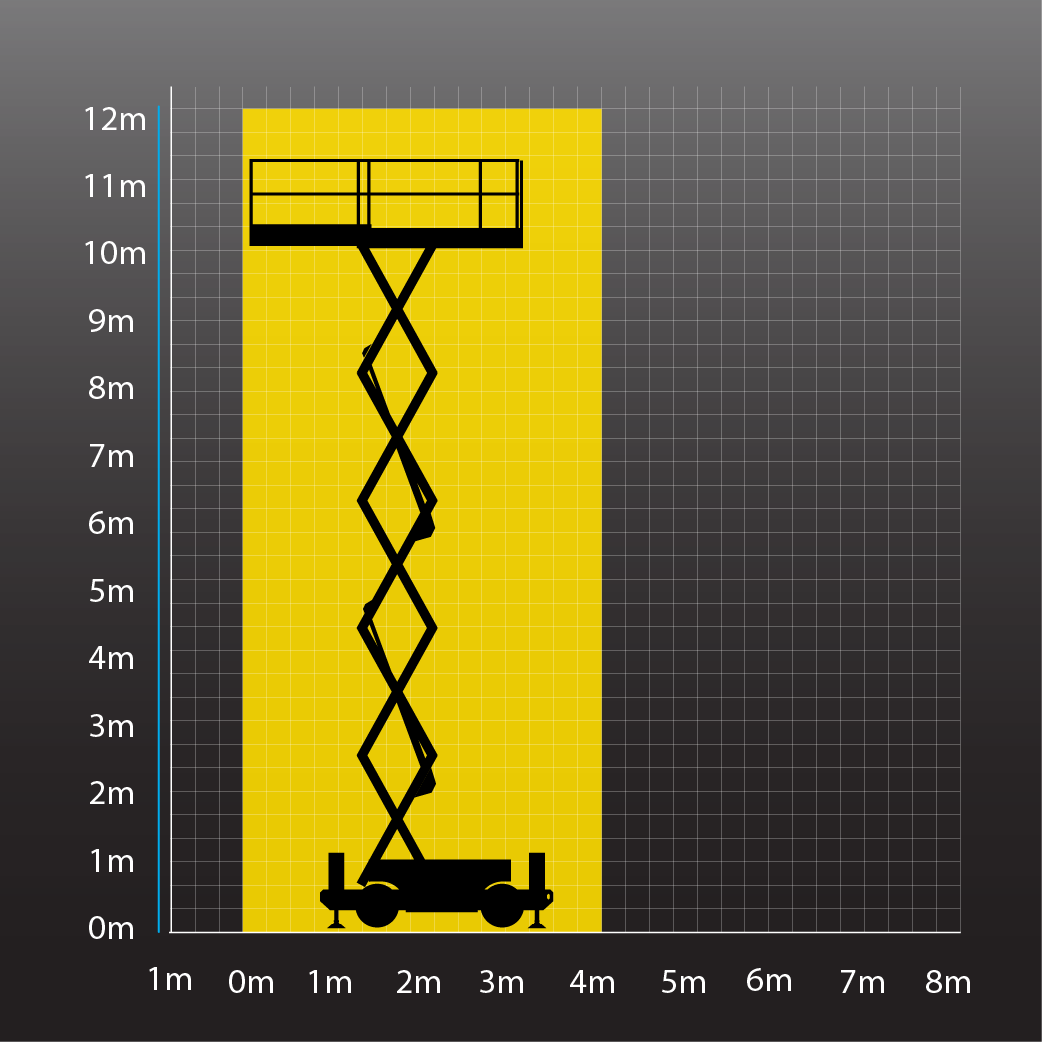

| Max. Working Height | 12.00m |
| Max. Platform Height (A) | 10.00m |
| Platform Size (Stowed) (B) | 1.60m x 2.80m |
| Platform Size (Extended) (C) | 1.60m x 4.00m |
| Platform Extension Size | 1.20m |
| Overall Width (D) | 1.80m |
| Overall Length (E) | 3.40m |
| Stowed Height (F) | 2.70m |
| Platform Capacity | 454kg |
| Max. Drive Height | 10.00m |
| Max. Wind Speed | 12.5m/s |
| Raise/Lower Time | 50/60 secs |
| Gradeability | 35% |
| Max. Stabiliser levelling (front to rear) | 6º |
| Max. Stabiliser levelling (side to side) | 10º |
| Inside Turning Radius | 2.70m |
| Outside Turning Radius | 5.00m |
| Overall Weight | 3,620kg |

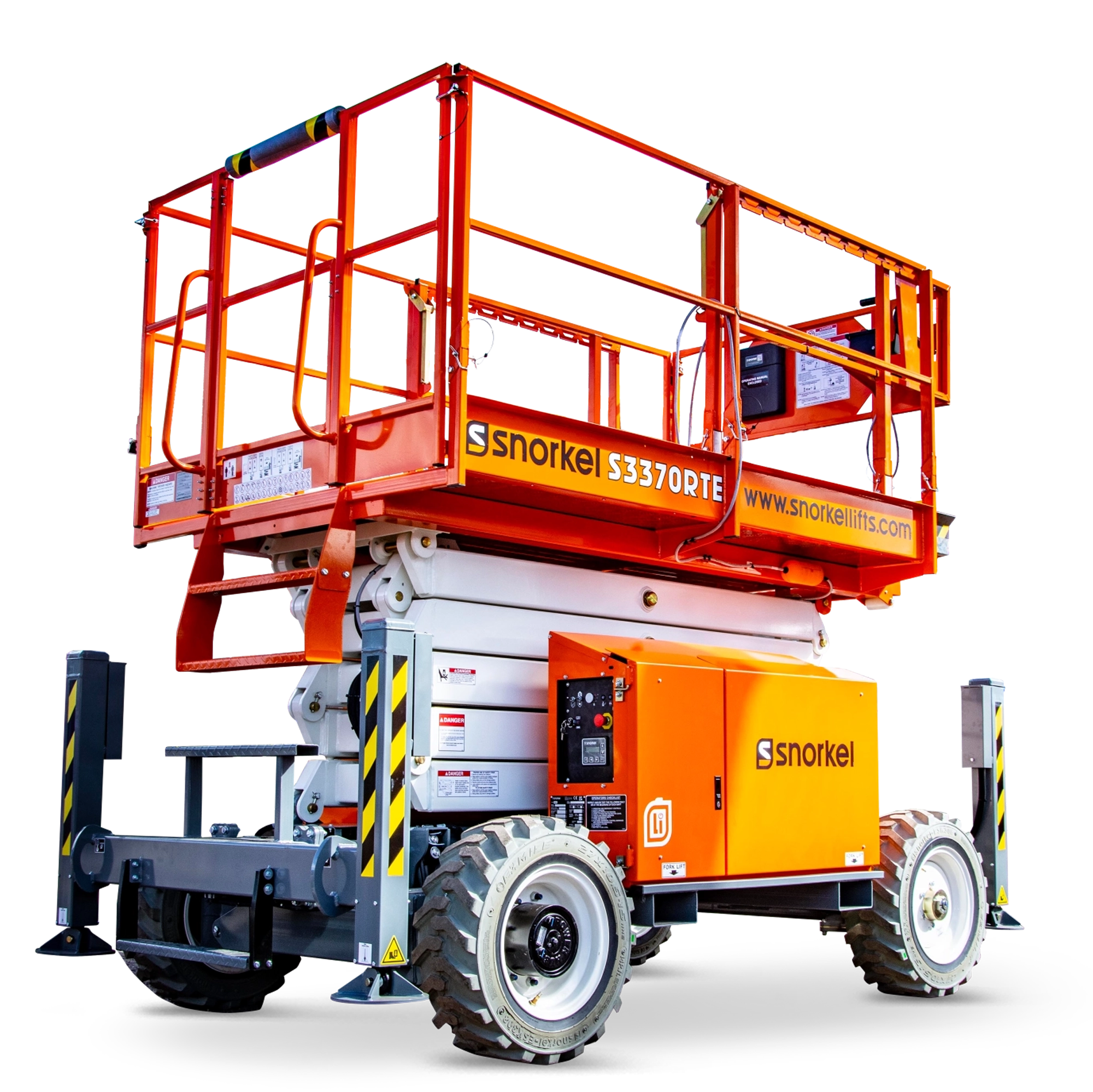

The Snorkel S3370RTE is a compact rough-terrain electric scissor lift offering clean, emission free operation. The S3370RTE's two lithium-ion battery systems mean the operator benefits from longer duty cycles and faster charge times, greatly improving productivity on site. This scissor lift provides a maximum working height of 12.0 meters and supports a platform capacity of up to 454 kilograms. The platform measures 1.60 meters by 2.80 meters when stowed and extends to 4.00 meters with a 1.20-meter roll-out deck extension, enhancing reach and versatility. Its overall dimensions include a width of 1.80 meters, a length of 3.40 meters, and a stowed height of 2.70 meters. The S3370RTE is equipped with a 4-wheel drive system, offering a gradeability of 35%, and features an inside turning radius of 2.70 meters and an outside turning radius of 5.00 meters.
Extended duty cycles thanks to two lithium-ion battery systems
Self-levelling outriggers allow for both indoor and outdoor use
1.20m roll-out deck extension for extra reach
12.00m
454kg
1.60m x 2.80m
