Dingli BT44RT
Dingli BT44RT
Dingli BT44RT
Dingli BT44RT
Dingli BT44RT
Dingli BT44RT
Right Arrow
Left Arrow
ENQUIRE NOW Call hire desk 0800 085 3709
Google review

Dingli BT44RT

ENQUIRE NOW Call hire desk 0800 085 3709

Specifications

Max. Working Height

44.0m

Max.Platform Height

42.0m

Max.Horizontal Reach

25.60m

(A) Overall Length(Stowed)

17.0m

(B) Overall Width(Stowed)

2.44m

Overall Width(Transport)

4.17m

(C) Overall Height (Stowed)

2.83m

Platform Size(Length×Width)

2.44m × 0.90m

Ground Clearance

0.38m

(D) Wheelbase

4.30m

Max. Down Probing Depth

2.0m

Lift Capacity

454kg

Max Occupants

3

Tailswing Turntable

1.39m

Turning Radius (Inside/Outside)

2.45m/6.20m

Turret Rotation (Continuous)

360°

Platform Rotation

180°

Jib Movement

240°

Gradeability

45%

Max Working Slope

X-5°/Y-5°

Weight

22,000kg

Delivery & Collection

We offer UK-wide delivery on all our products and pride ourselves on the ability to provide same-day delivery in certain scenarios. Collection is available within 7 days, in line with our CPA, ensuring your equipment arrives safely. All deliveries are fully insured and treated with care.

Health & Safety

Please follow all health and safety guidelines when using our products. Always wear the appropriate protective equipment and adhere to local regulations to ensure safe handling and operation.

Health & Safety downloads

Application & uses

Diesel Powered

Diesel Powered

Reliable diesel performance

4 x 4 Drive

4 x 4 Drive

All-terrain capability

Basket Rotation

Basket Rotation

Rotating platform for flexibility

Working envelope

Working envelope

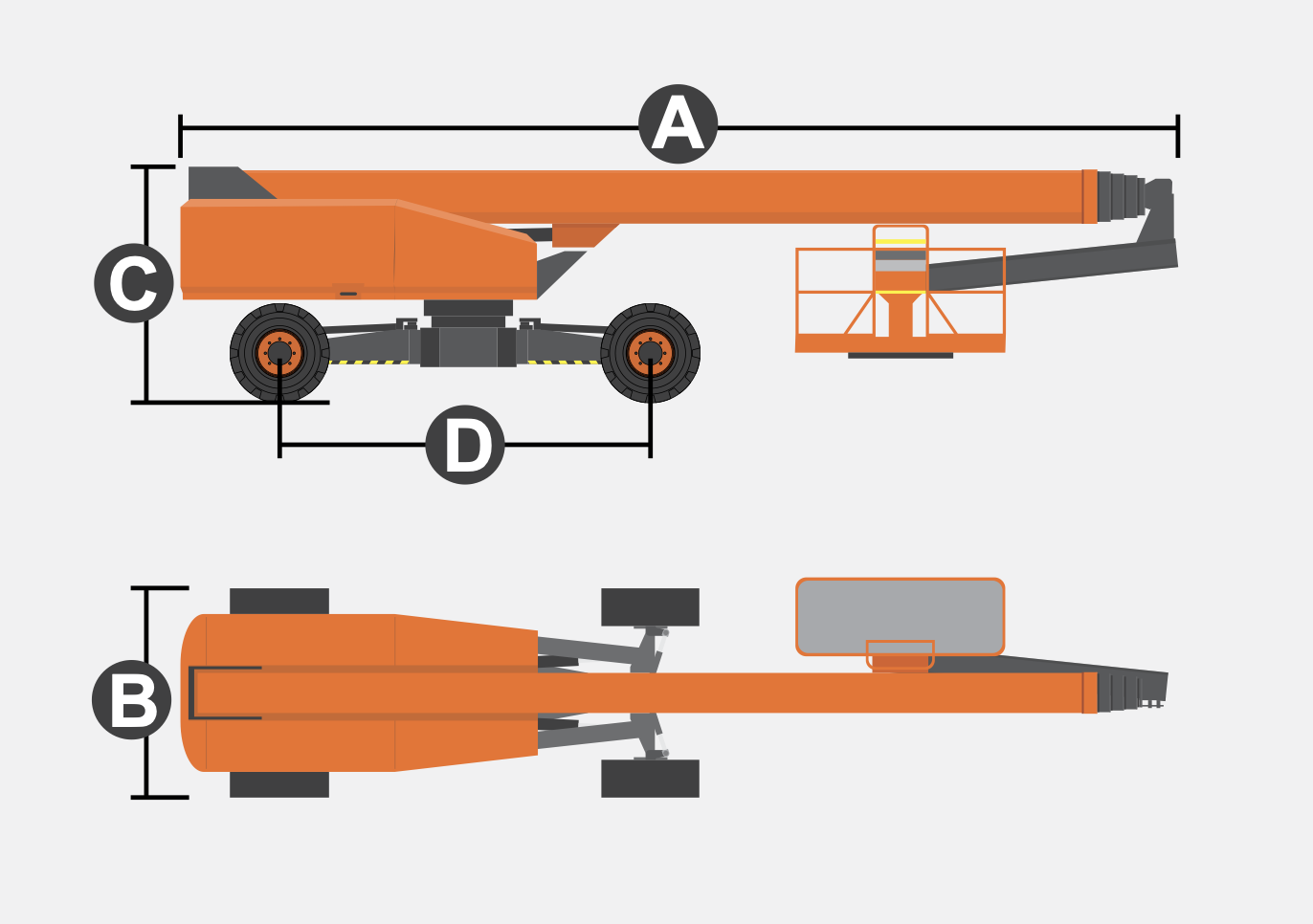

Dimension drawing

Dimension drawing

MACHINE INFORMATION

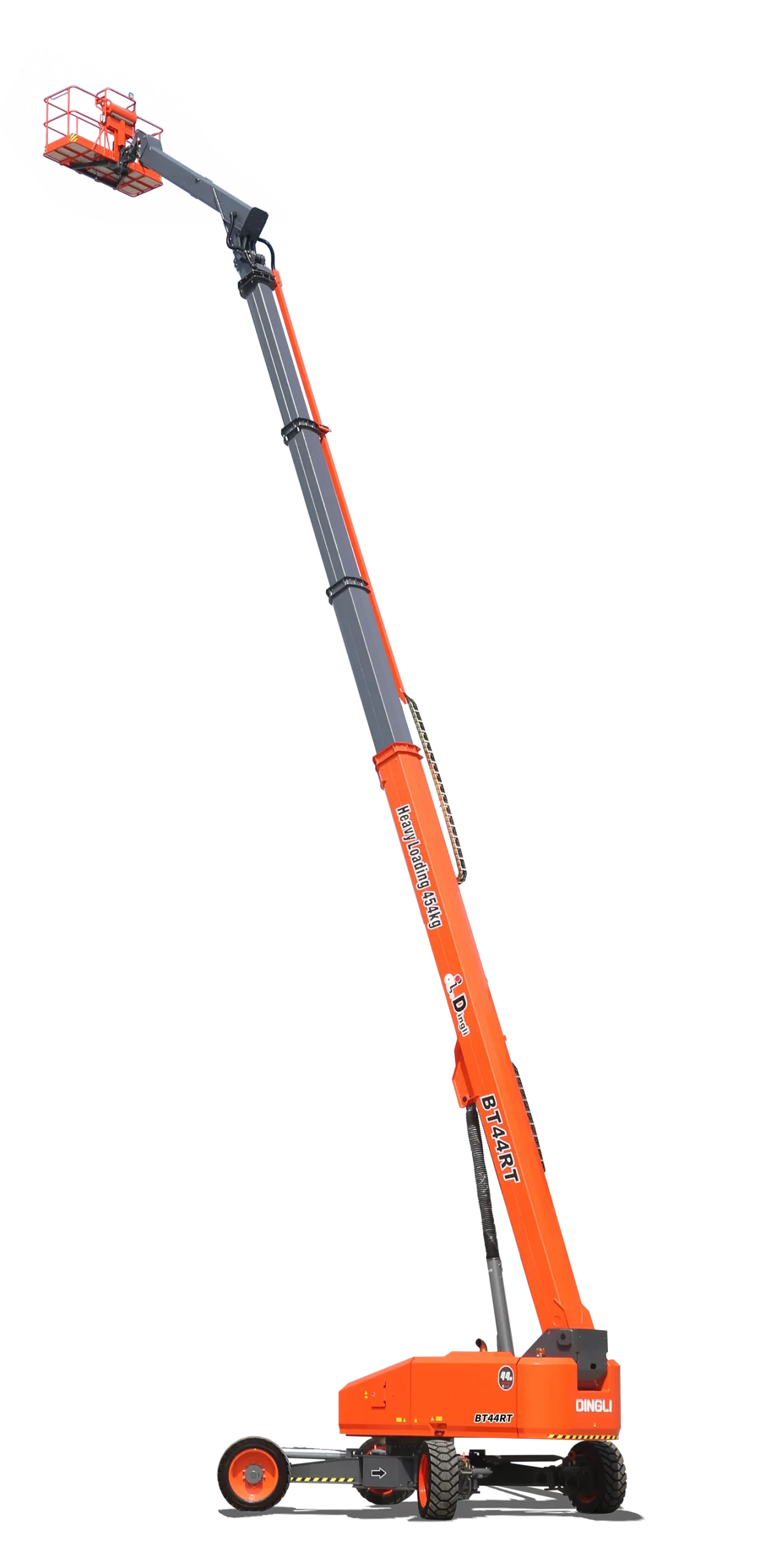

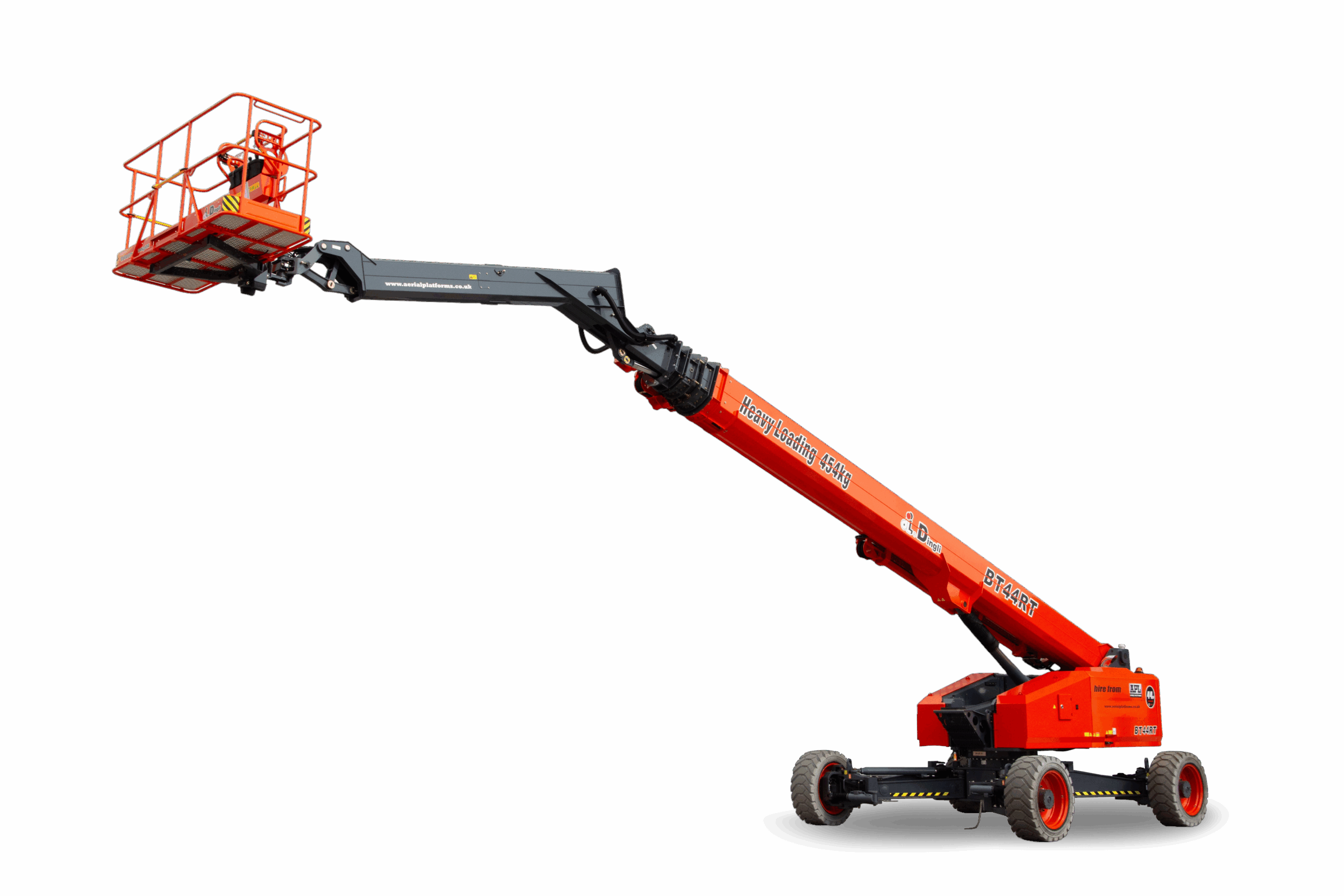

The Dingli BT44RT is a powerful and versatile telescopic boom lift designed for demanding high-reach applications on rough terrain. With a maximum working height of 44 m, a 240° rotating jib, and a spacious 454 kg capacity platform, it offers outstanding reach and flexibility. Its rugged design includes diesel-powered 4WD with multi-mode steering, rough-terrain tyres, and patented axle expansion for superior manoeuvrability. Advanced safety features such as Category 3 electronic redundancy, load sensing, and dual control stations ensure reliable and secure operation. Built for efficiency, transportability, and durability, the BT44RT is ideal for large-scale construction, maintenance, and industrial projects.

STANDARD FEATURES

The Dingli BT44RT features a powerful diesel-powered 4WD system with patented one-key axle expansion, allowing for easy manoeuvrability in tight spaces.

The Dingli BT44RT is equipped with a spacious 2.4 m wide platform with a 454 kg safe working load, allowing multiple operators and tools to work efficiently at height.

The machine offers up to 44 m working height with a high-efficiency modular boom and 240° jib rotation, making it ideal for demanding work at height.

Exceptional Gradeability

With up to 45% gradeability, the BT44RT can handle steep and uneven terrain with ease, making it suitable for challenging off-road environments.

Rough‑Terrain Tyres

Equipped with rough terrain tyres designed to deliver superior traction and stability across uneven, off‑road surfaces—ideal for rugged job sites.

Exceptional Gradeability

The BT44RT features both ground and platform control stations, allowing flexible and safe operation from either position depending on the task requirements.
